Conn-Link Technology Inc

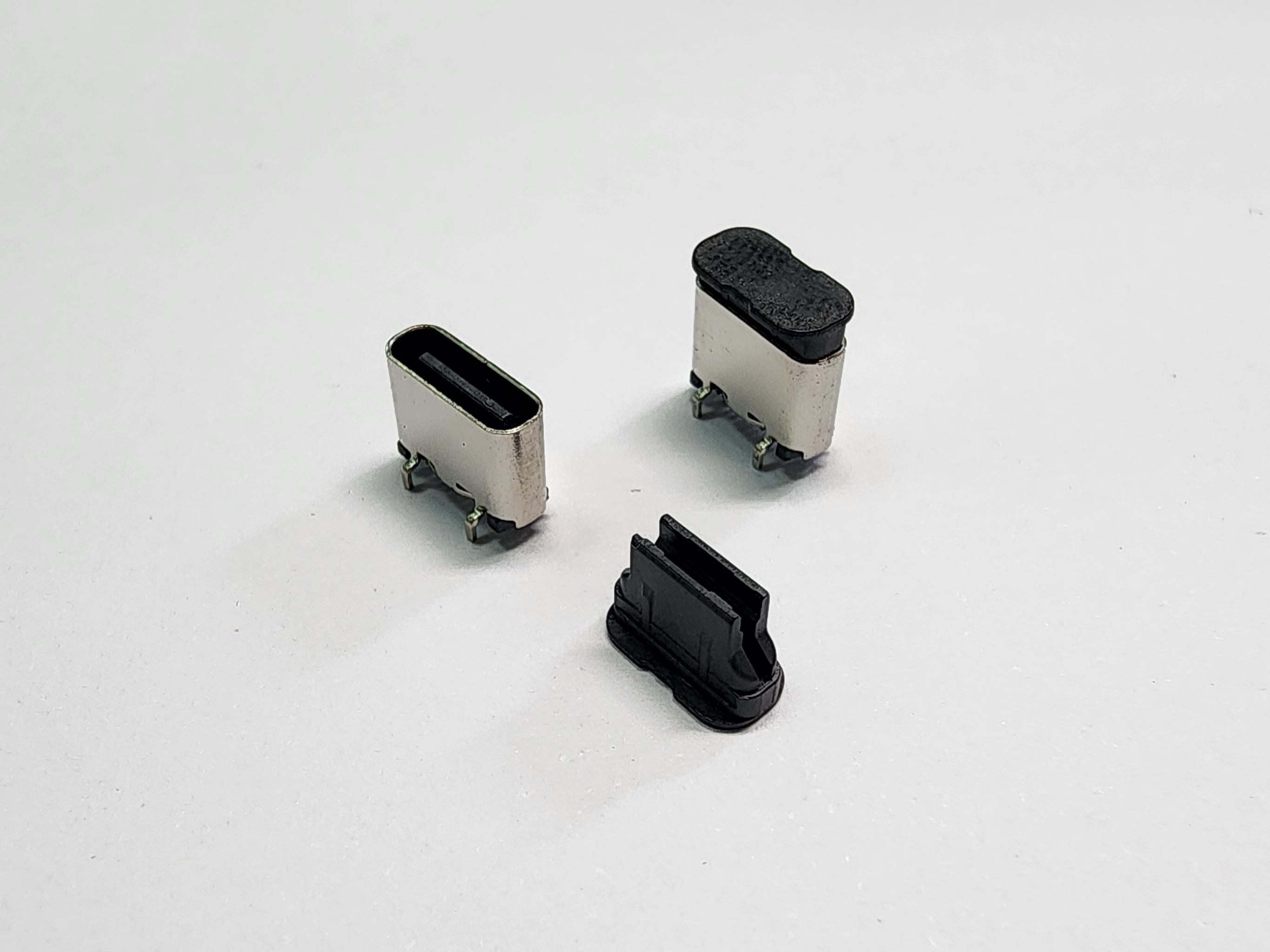

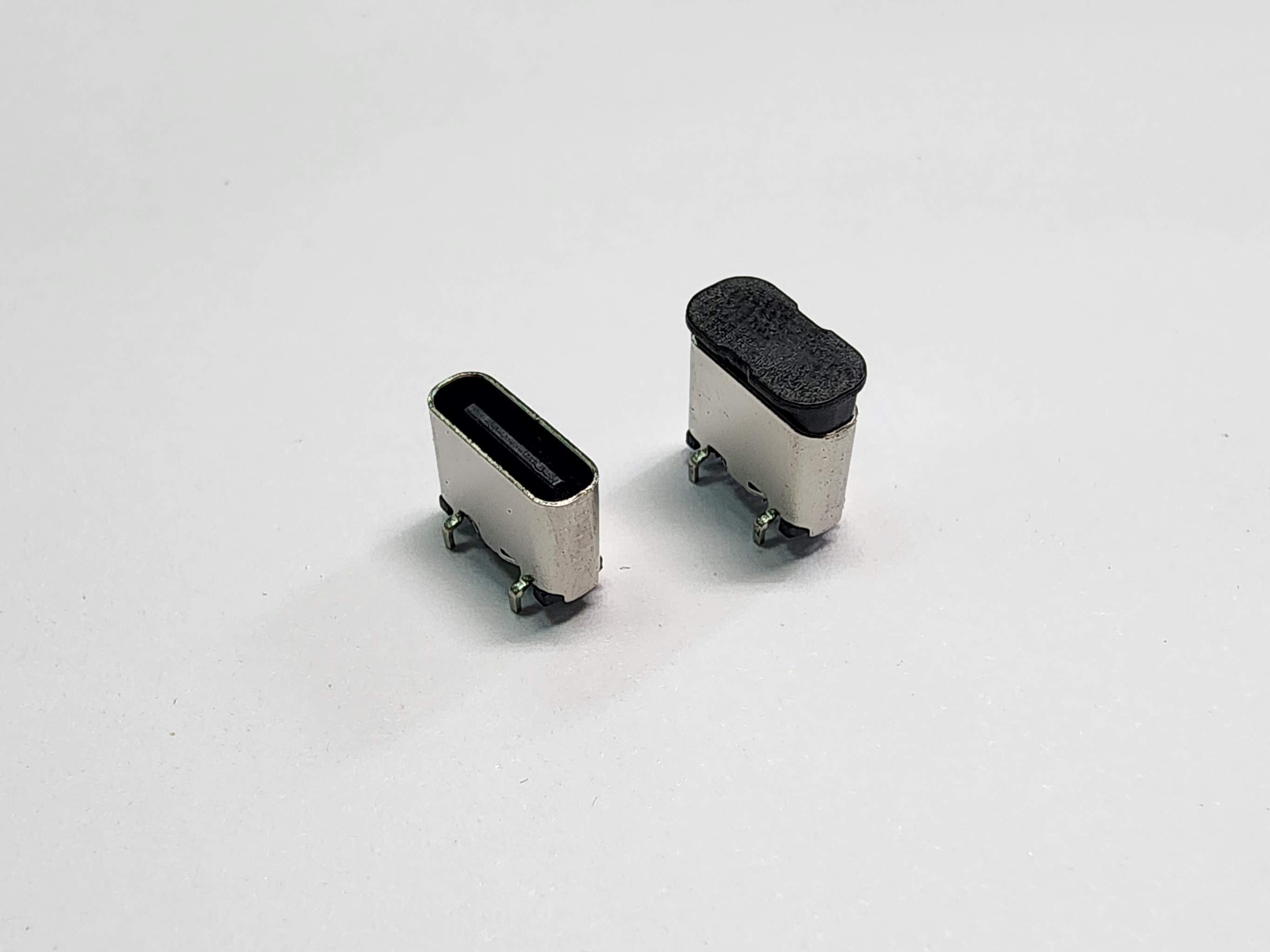

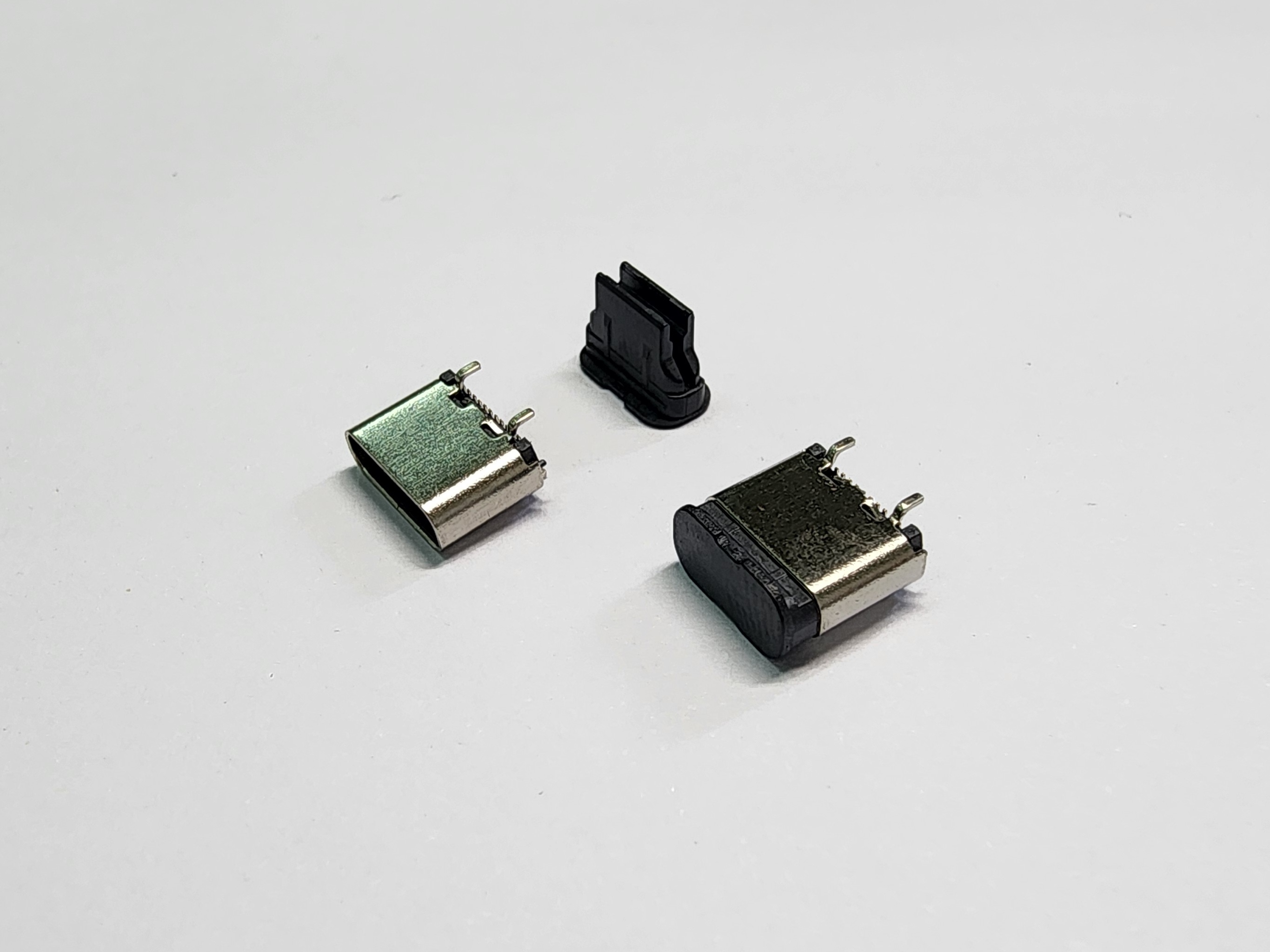

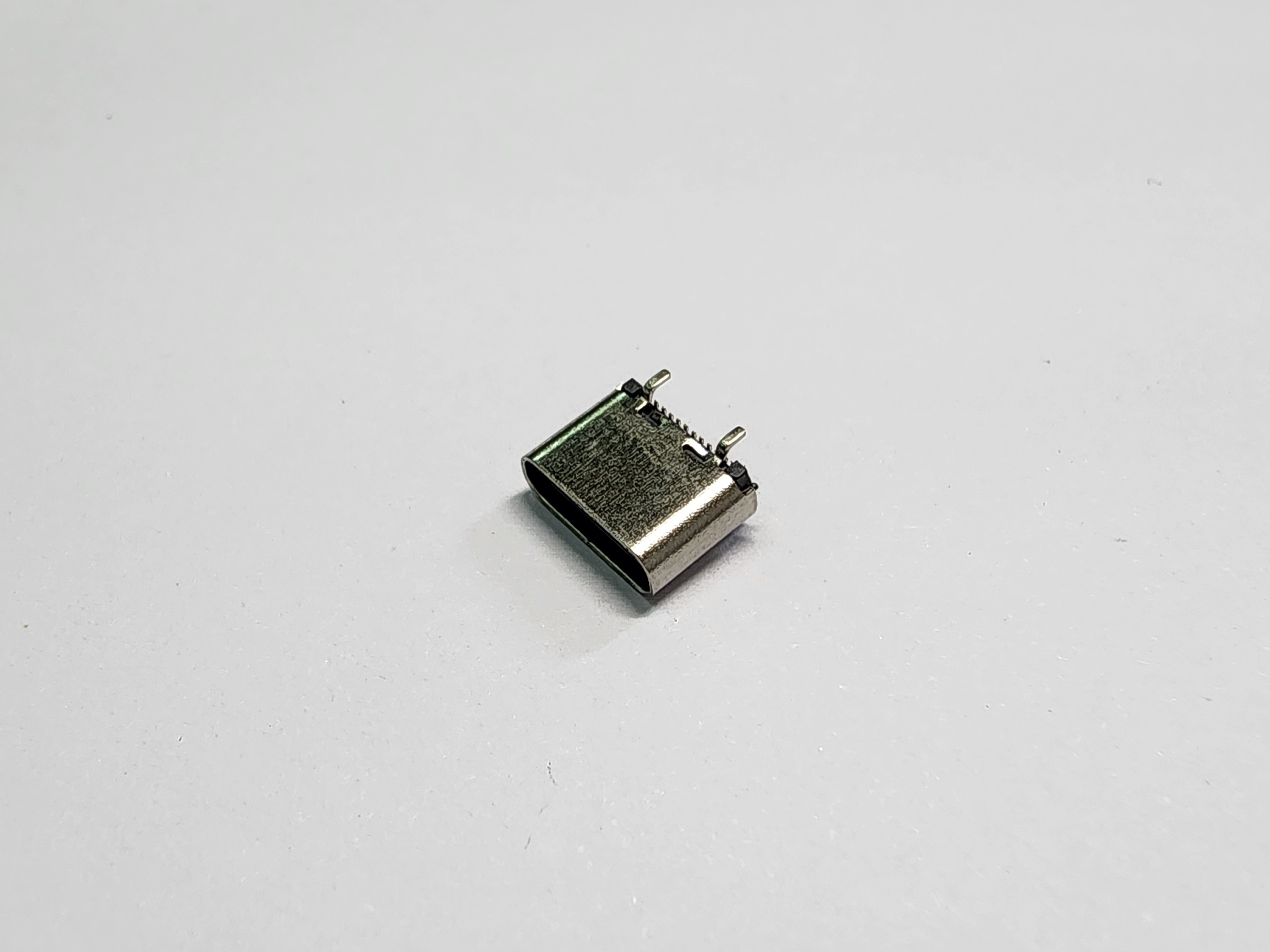

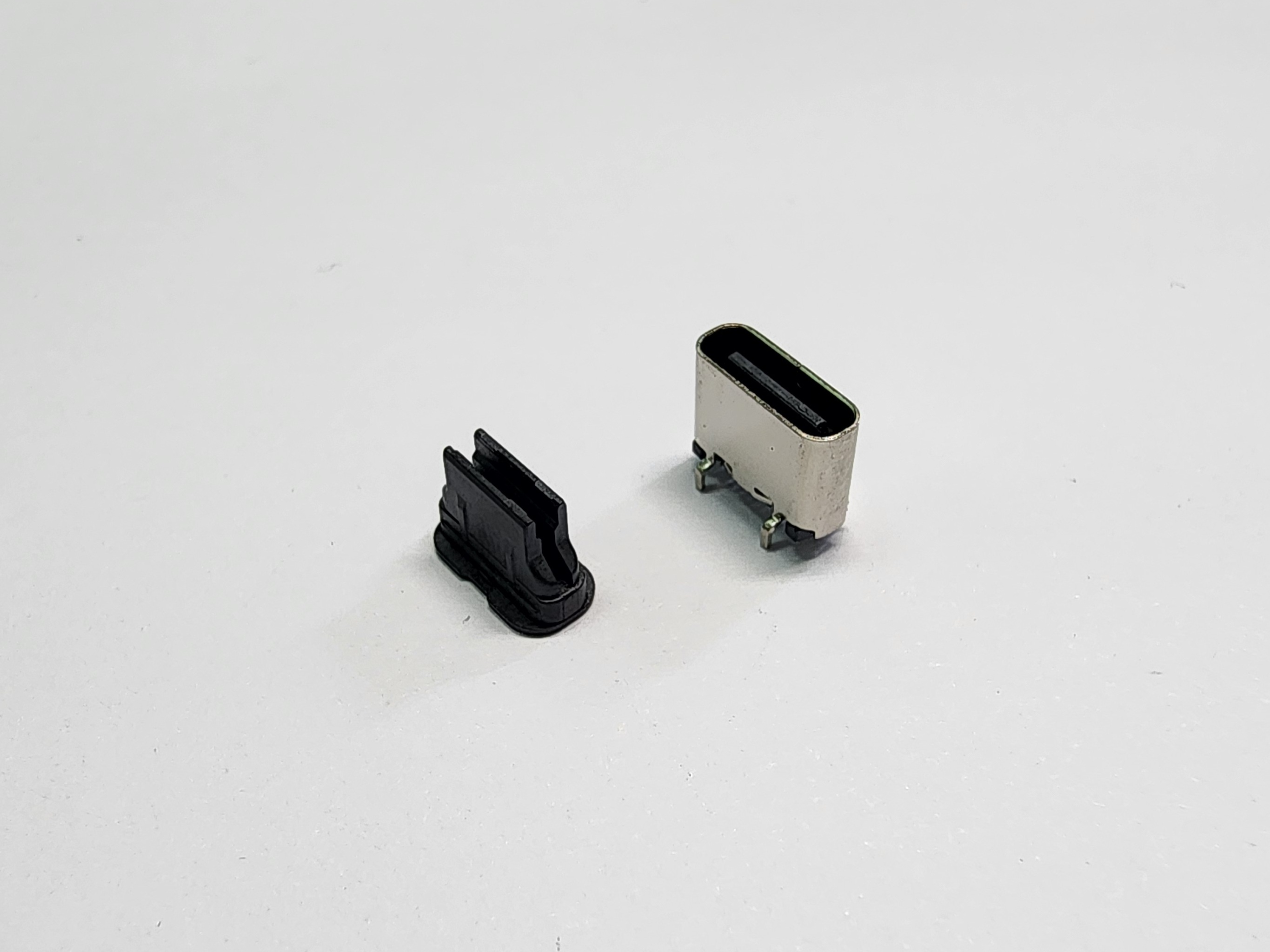

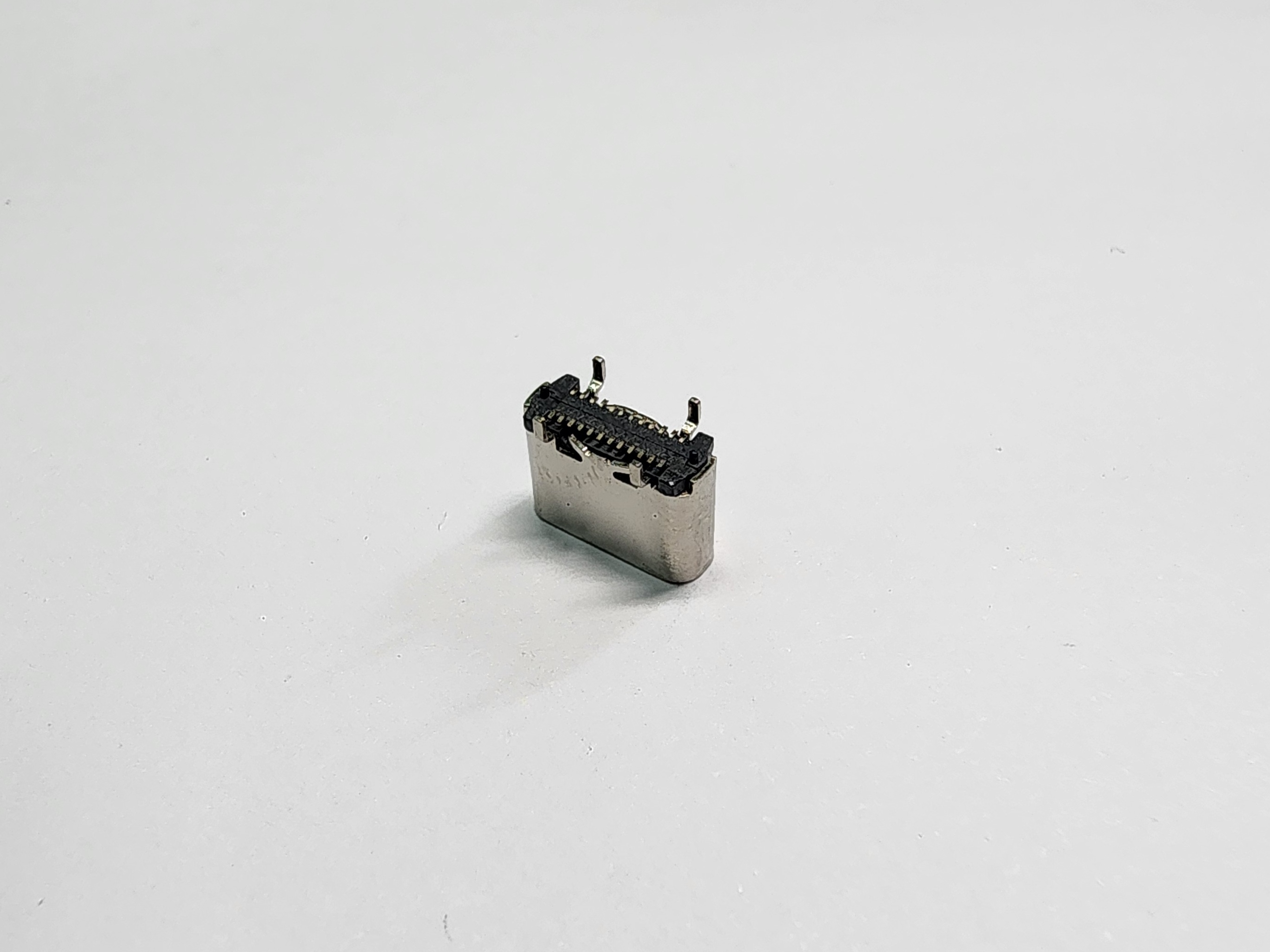

CU3C-R24VSG0-77

Description

  • USB 3.1 Type C Connector
  • 24Pins
  • Receptacle
  • Vertical Type
  • Dual Rows SMT
  • Gold Flash
  • H=6.50mm
  • Shell Pin 4.3mm*4.8mm
  • LCP
  • Black Color

USB 3.1 C Type, 24Pins, Receptacle, Vertical Type, SMT, H=6.50mm, Gold Flash, LCP, Black Color, Shell Pin 4.3mm*4.8mm

Material

  • Insulator: High Temperature Plastic, UL 94V-0 Rated.
  • Color: Black.
  • Cover: High Temperature Plastic, UL 94V-0 Rated.
  • Color: Black.
  • Contact: Copper Alloy.
  • Plating: Gold Plating on Contact Area;
  • Gold Flash on Solder Tail.
  • Nickel Underplating over All.
  • Shell: Stainless Steel, T=0.30mm.
  • Plating: Nickel Plating over All.
  • Shield Plate: Stainless Steel, T=0.15mm

Mechanical

  • Insertion Force: 5N~20N.
  • Withdrawal Force: 8N~20N.
  • Durability: 10,000Cycles.

Electrical Specification

  • Current Rating: 5A Max.
  • Voltage: 100V AC Max.
  • Contact Resistance: 40mΩ Max.
  • Insulation Resistance: 100MΩ Min.
  • Dielectric Withstanding Voltage: 100V AC R.M.S.

Environmental

  • Operating Temperature: -30°C to +85°C.
  • RoHS Compliance.
  • REACH Compliance.
