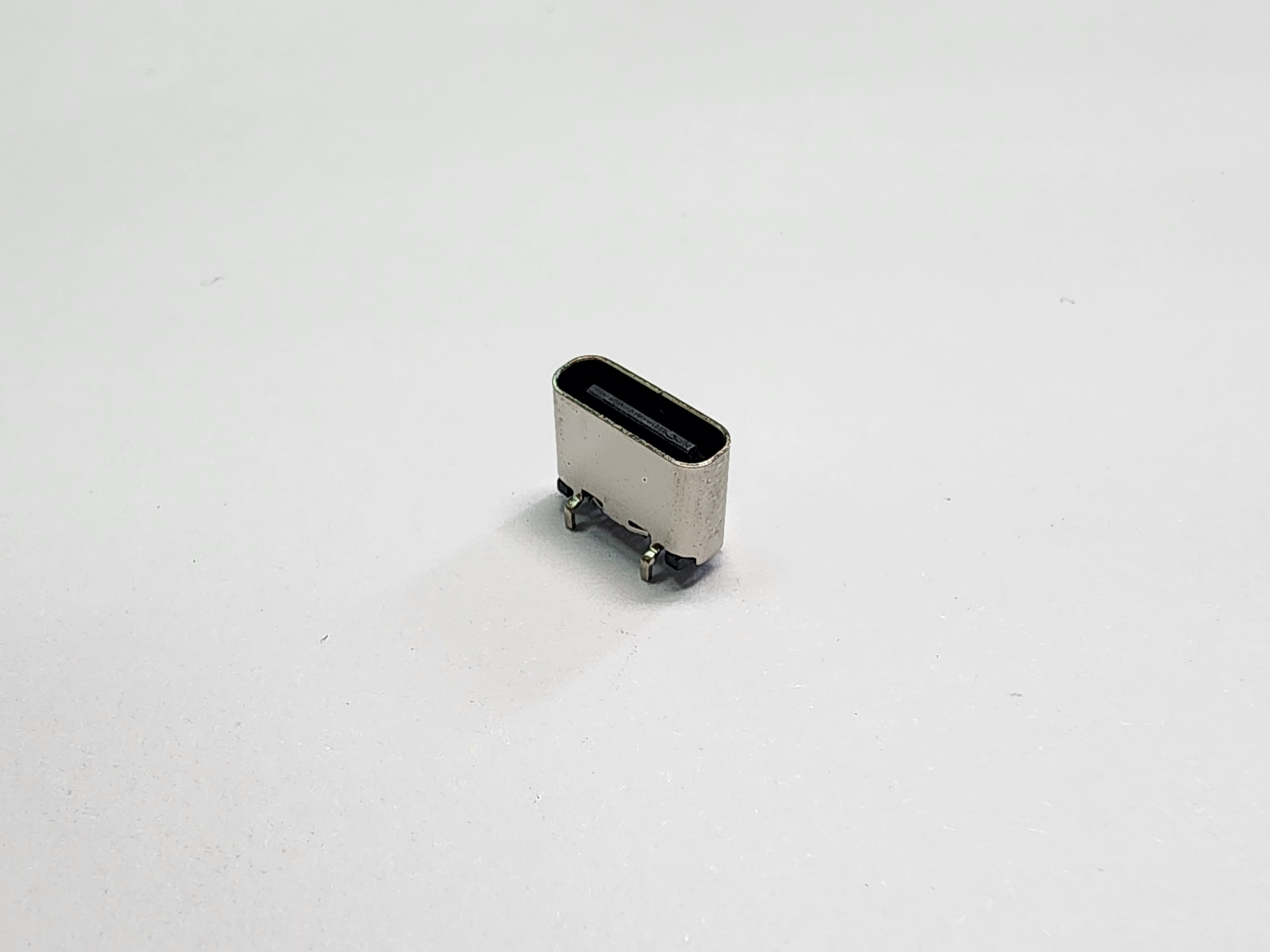

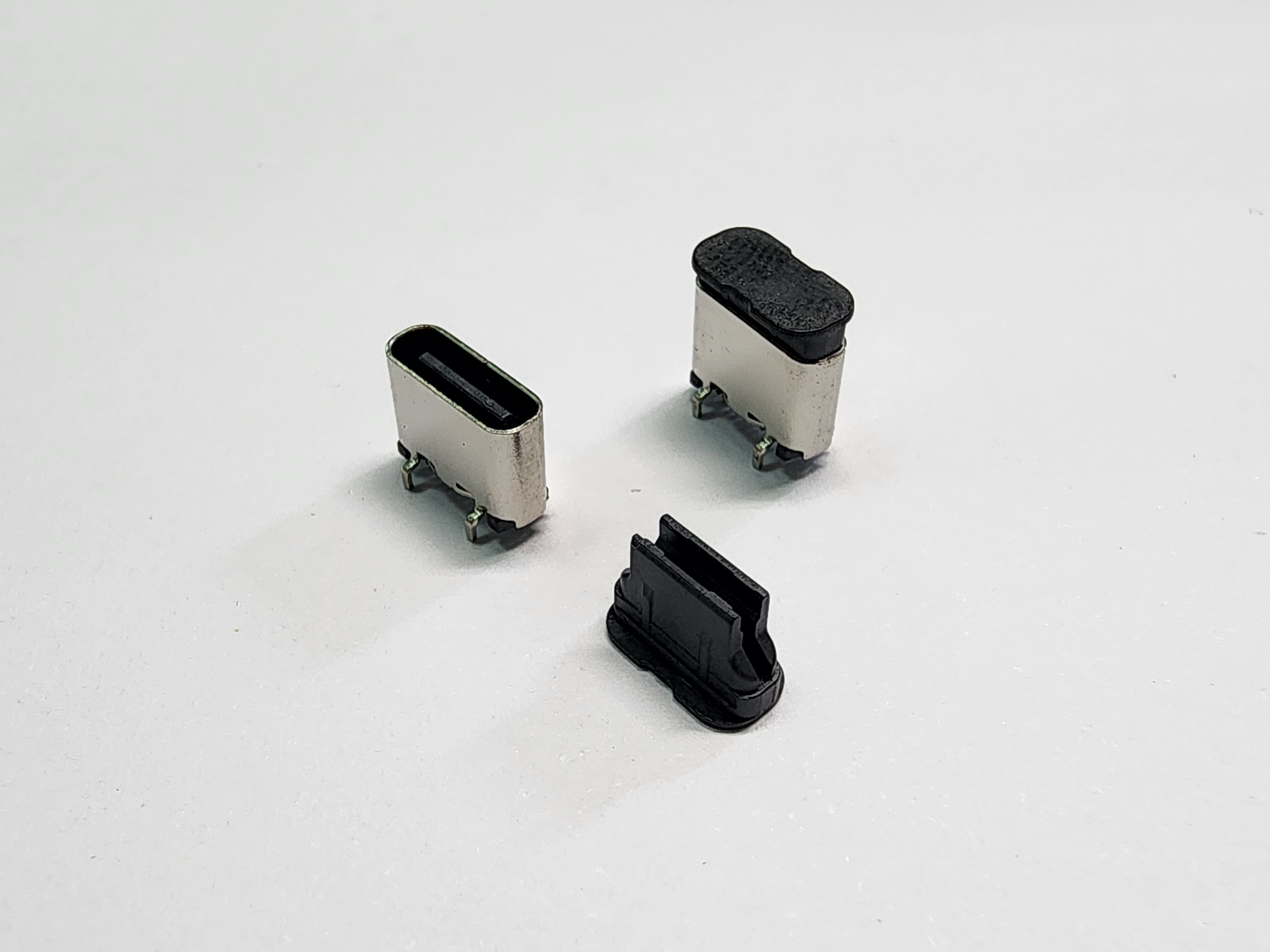

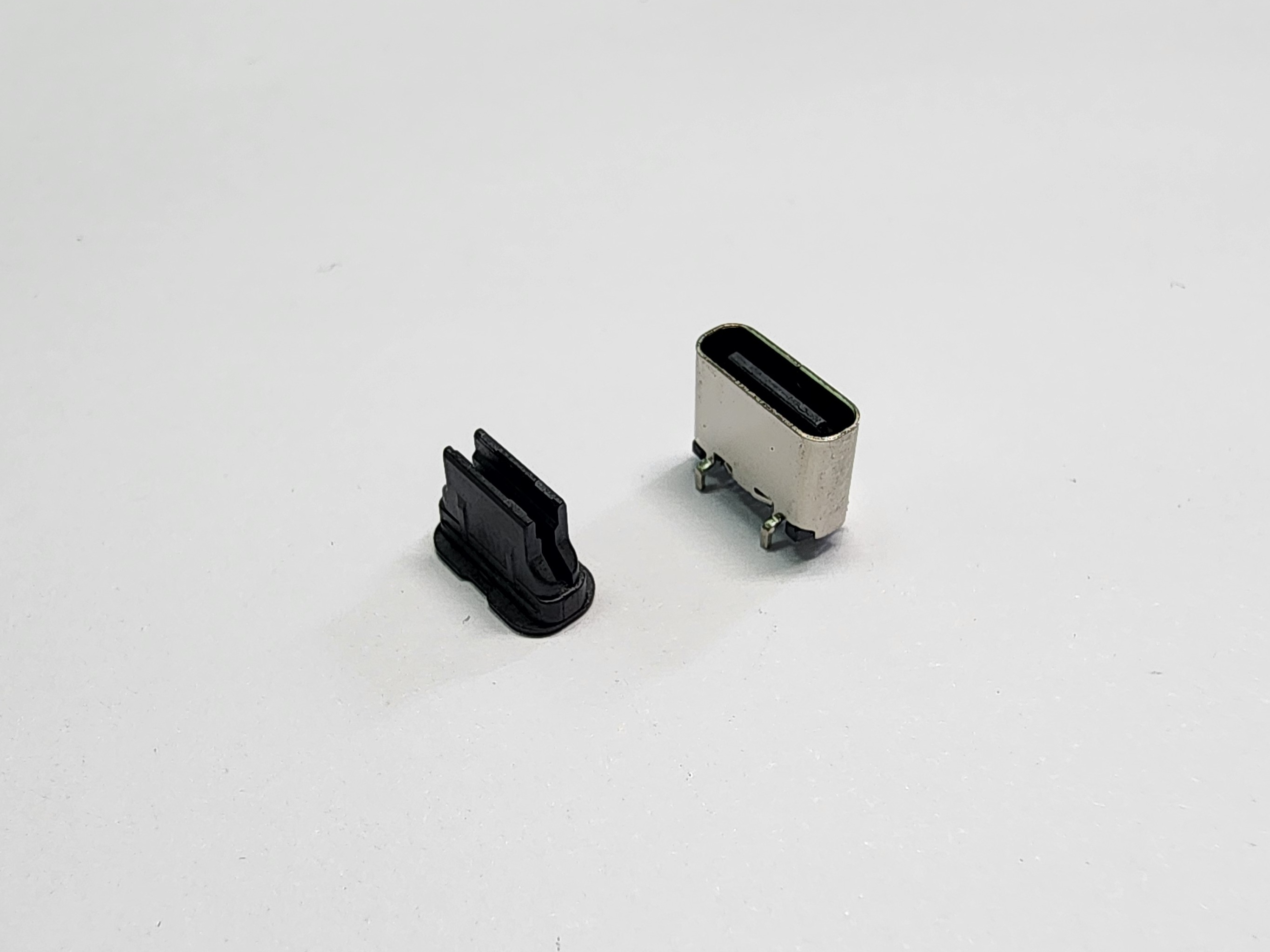

CU3C-R24VSG0-77

USB 3.1 C Type, 24Pins, Receptacle, Vertical Type, SMT, H=6.50mm, Gold Flash, LCP, Black Color, Shell Pin 4.3mm*4.8mm

Material

• Insulator: High Temperature Plastic, UL 94V-0 Rated.
• Color: Black.
• Cover: High Temperature Plastic, UL 94V-0 Rated.
• Color: Black.
• Contact: Copper Alloy.
• Plating: Gold Plating on Contact Area;
• Gold Flash on Solder Tail.
• Nickel Underplating over All.
• Shell: Stainless Steel, T=0.30mm.
• Plating: Nickel Plating over All.
• Shield Plate: Stainless Steel, T=0.15mm

Mechanical

• Insertion Force: 5N~20N.
• Withdrawal Force: 8N~20N.
• Durability: 10,000Cycles.

Electrical Specification

• Current Rating: 5A Max.
• Voltage: 100V AC Max.
• Contact Resistance: 40mΩ Max.
• Insulation Resistance: 100MΩ Min.
• Dielectric Withstanding Voltage: 100V AC R.M.S.

Environmental

• Operating Temperature: -30°C to +85°C.
• RoHS Compliance.
• REACH Compliance.
