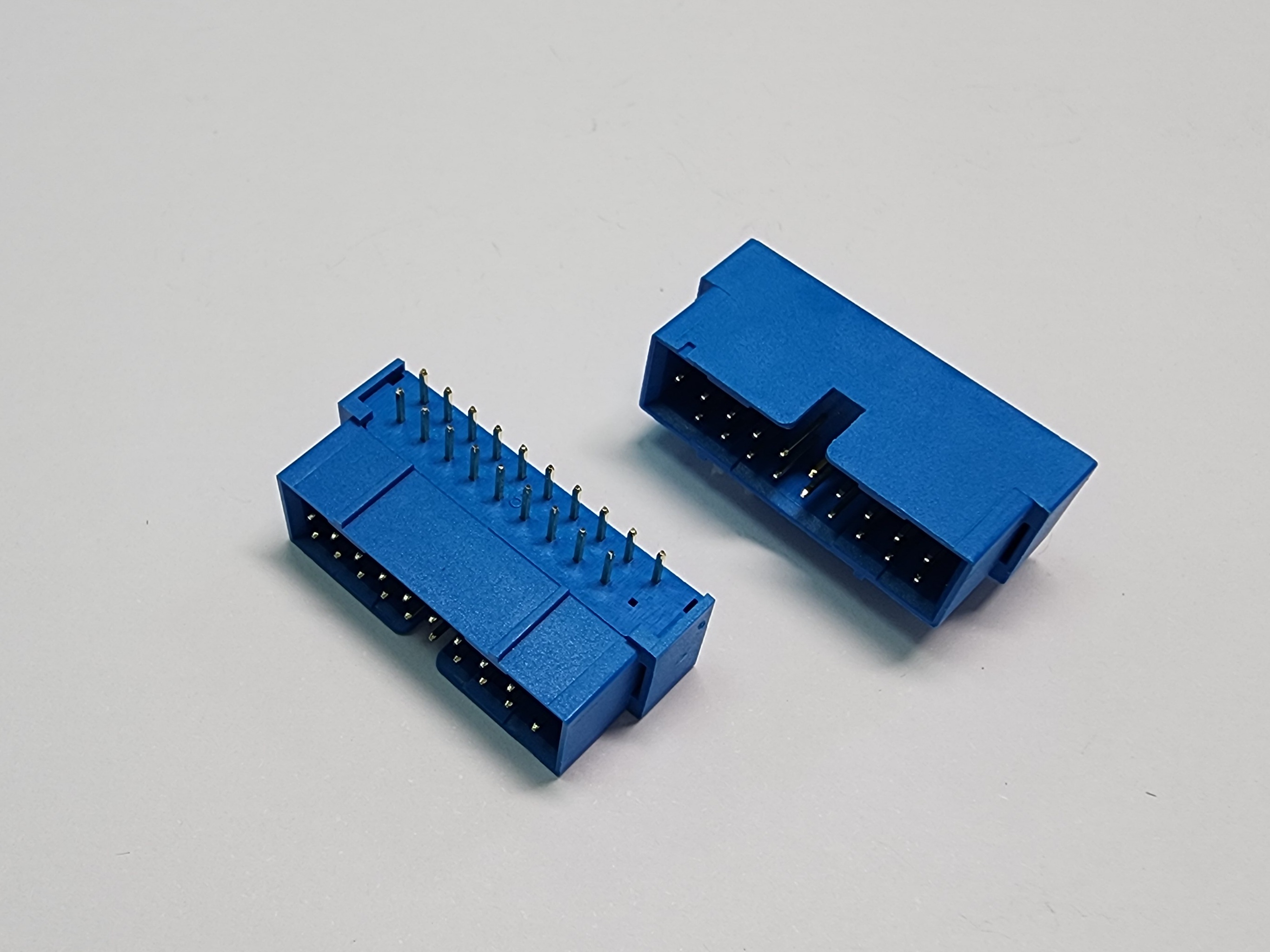

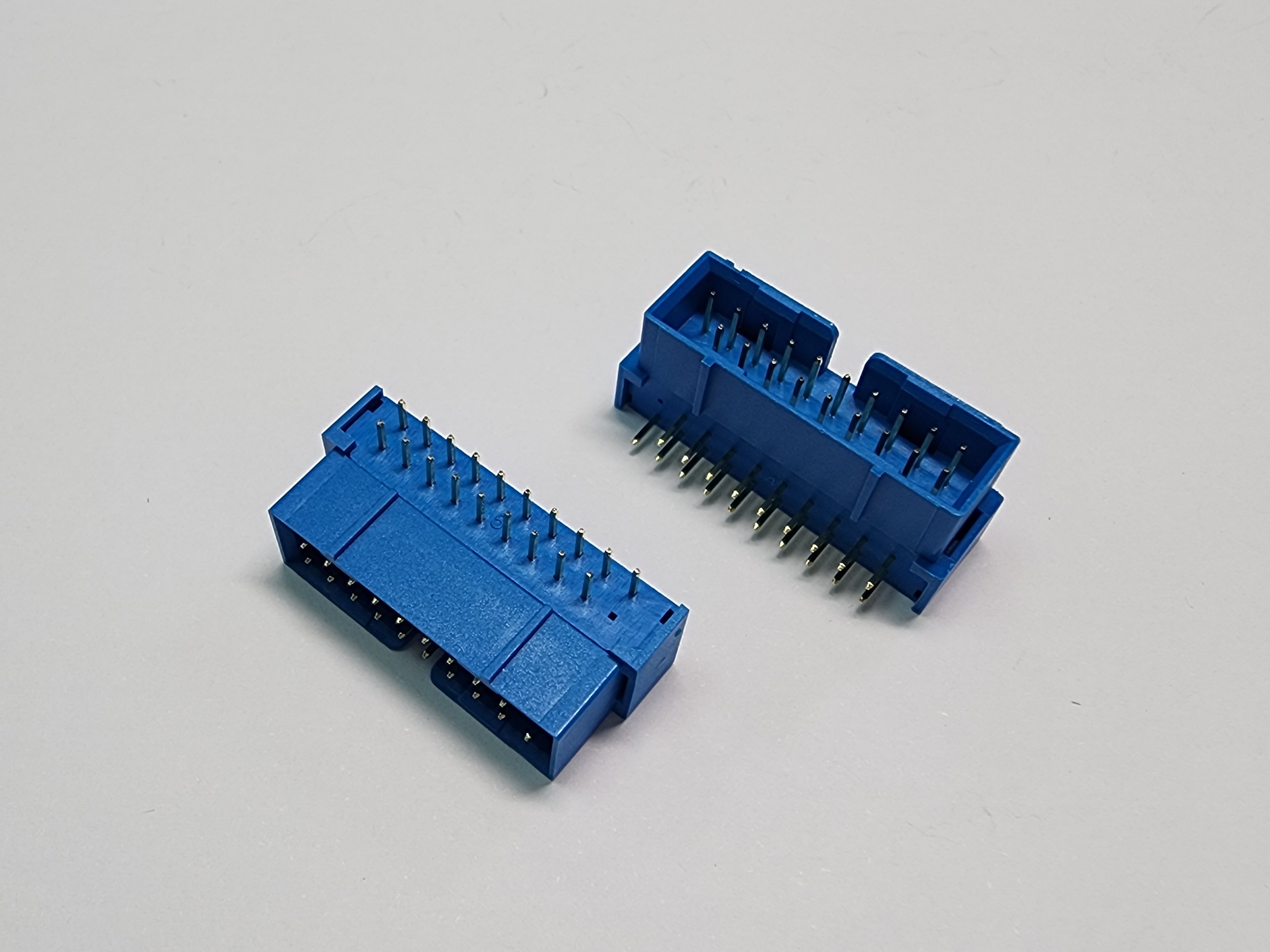

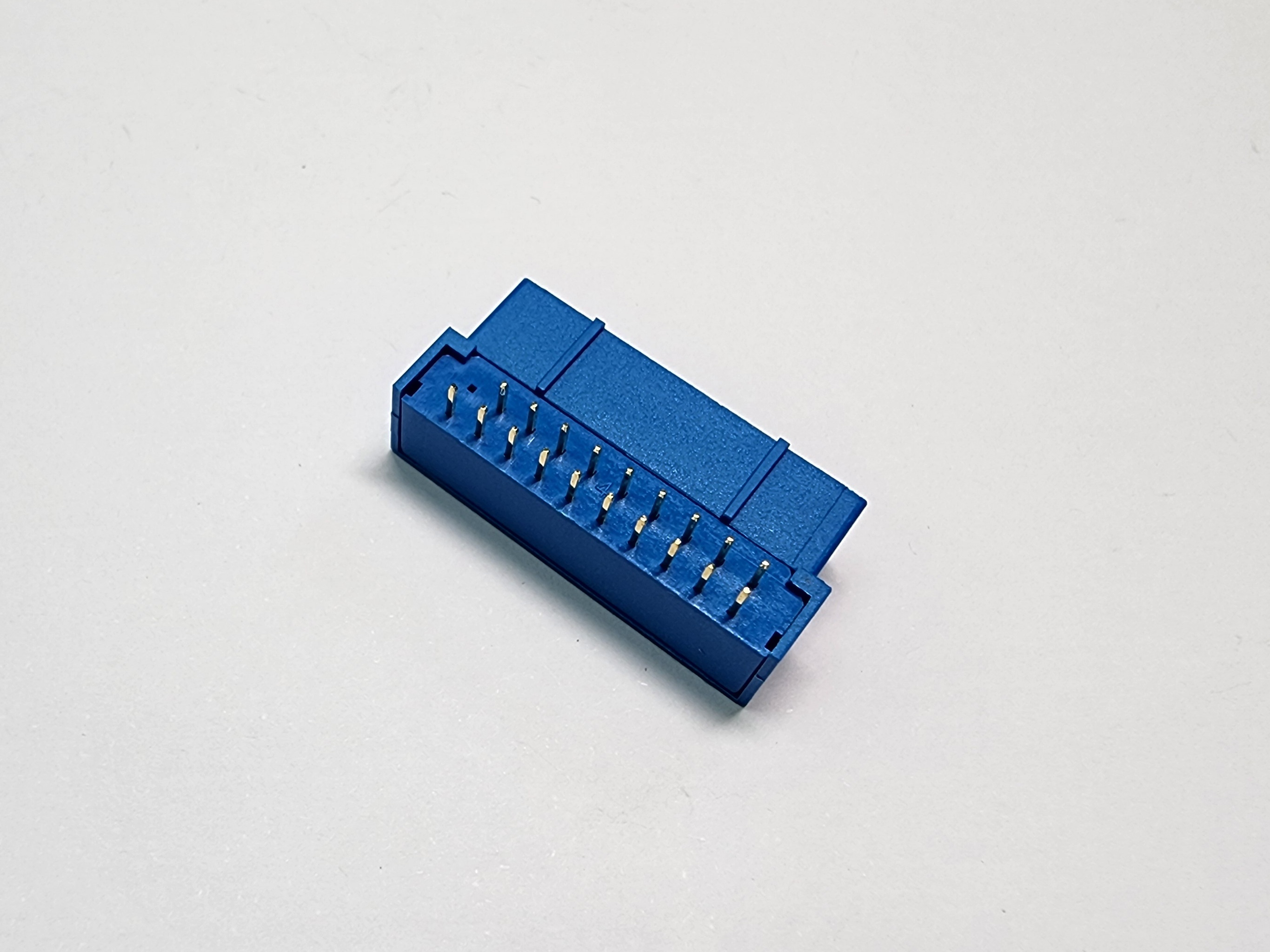

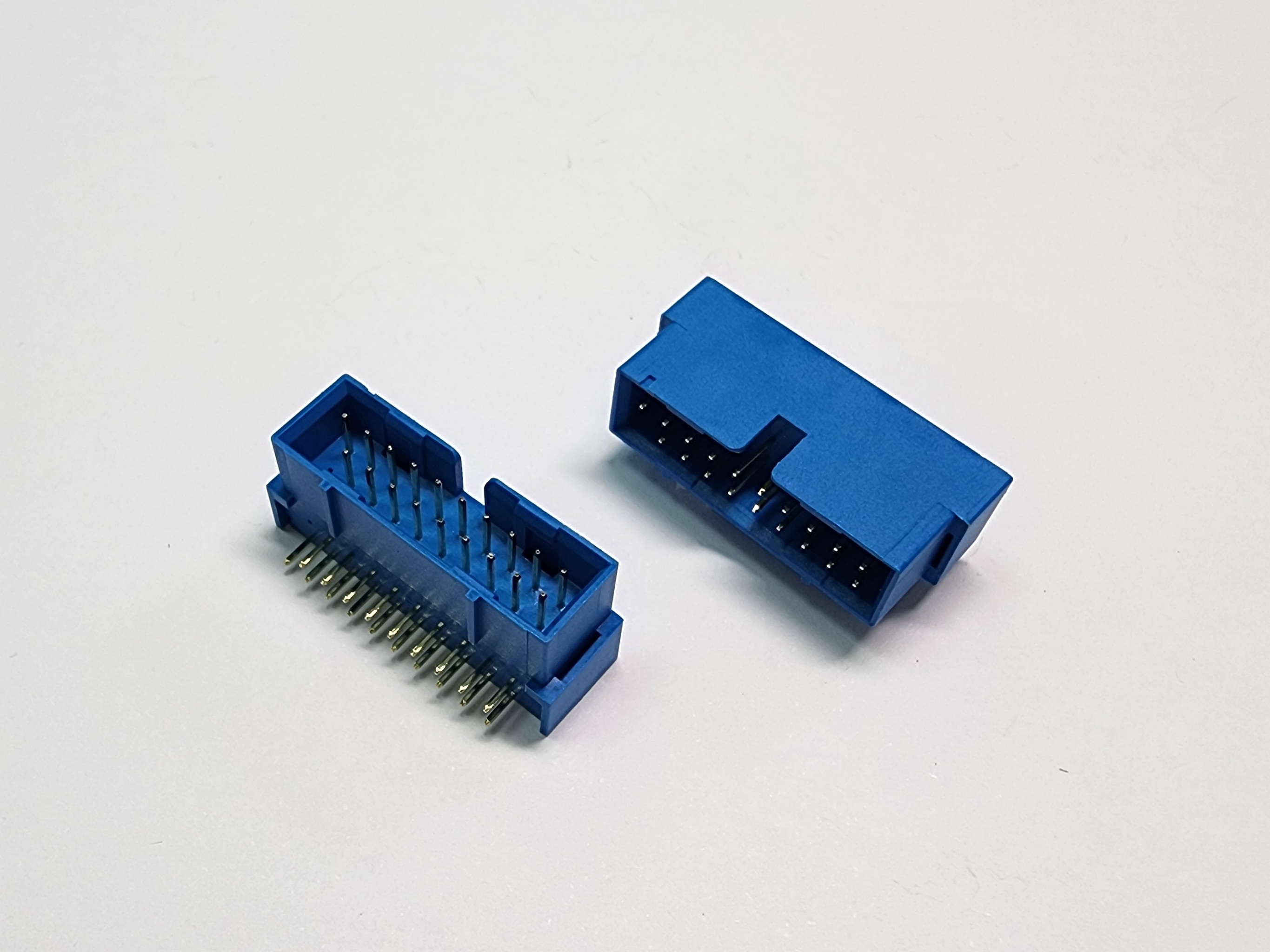

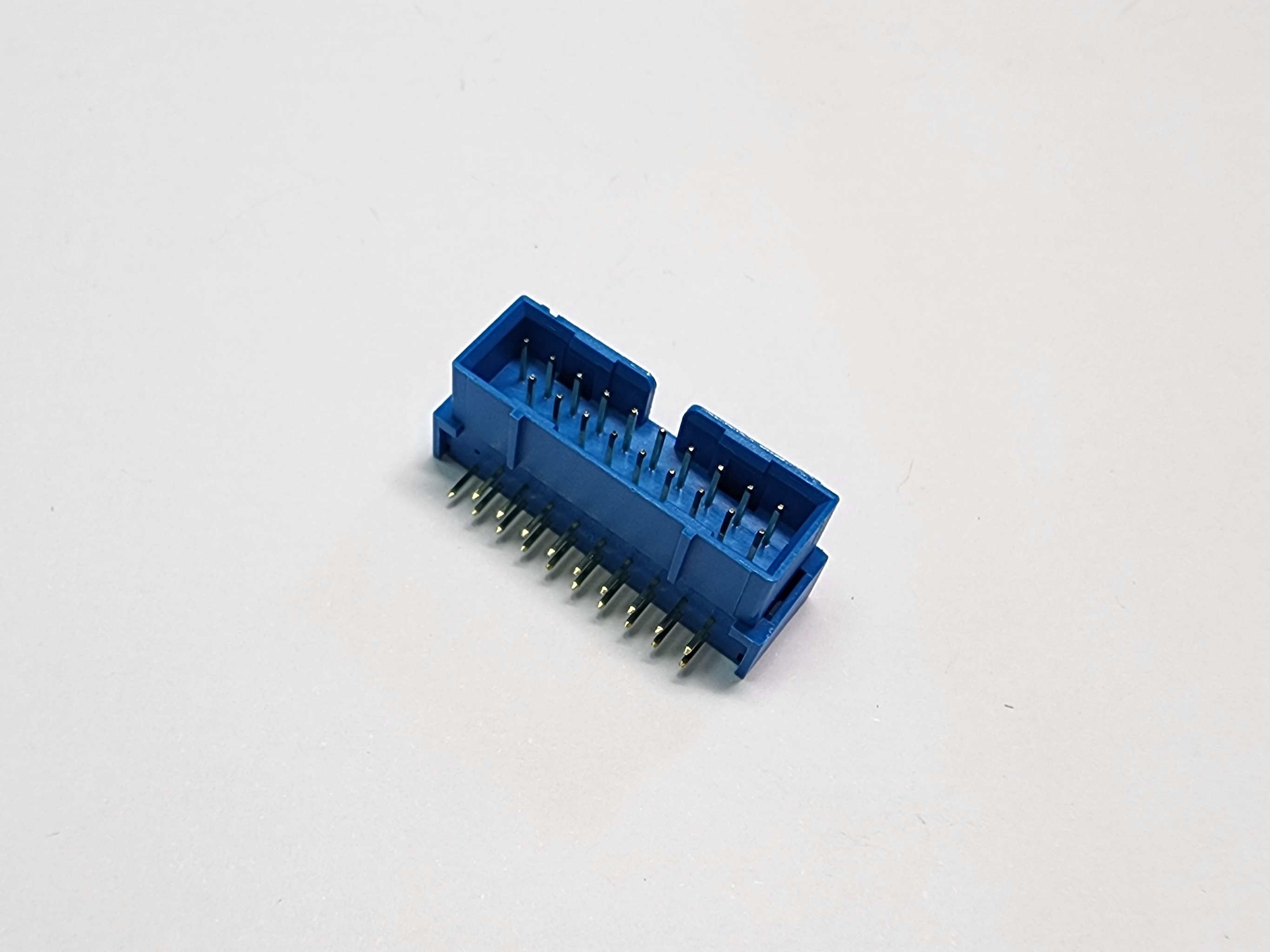

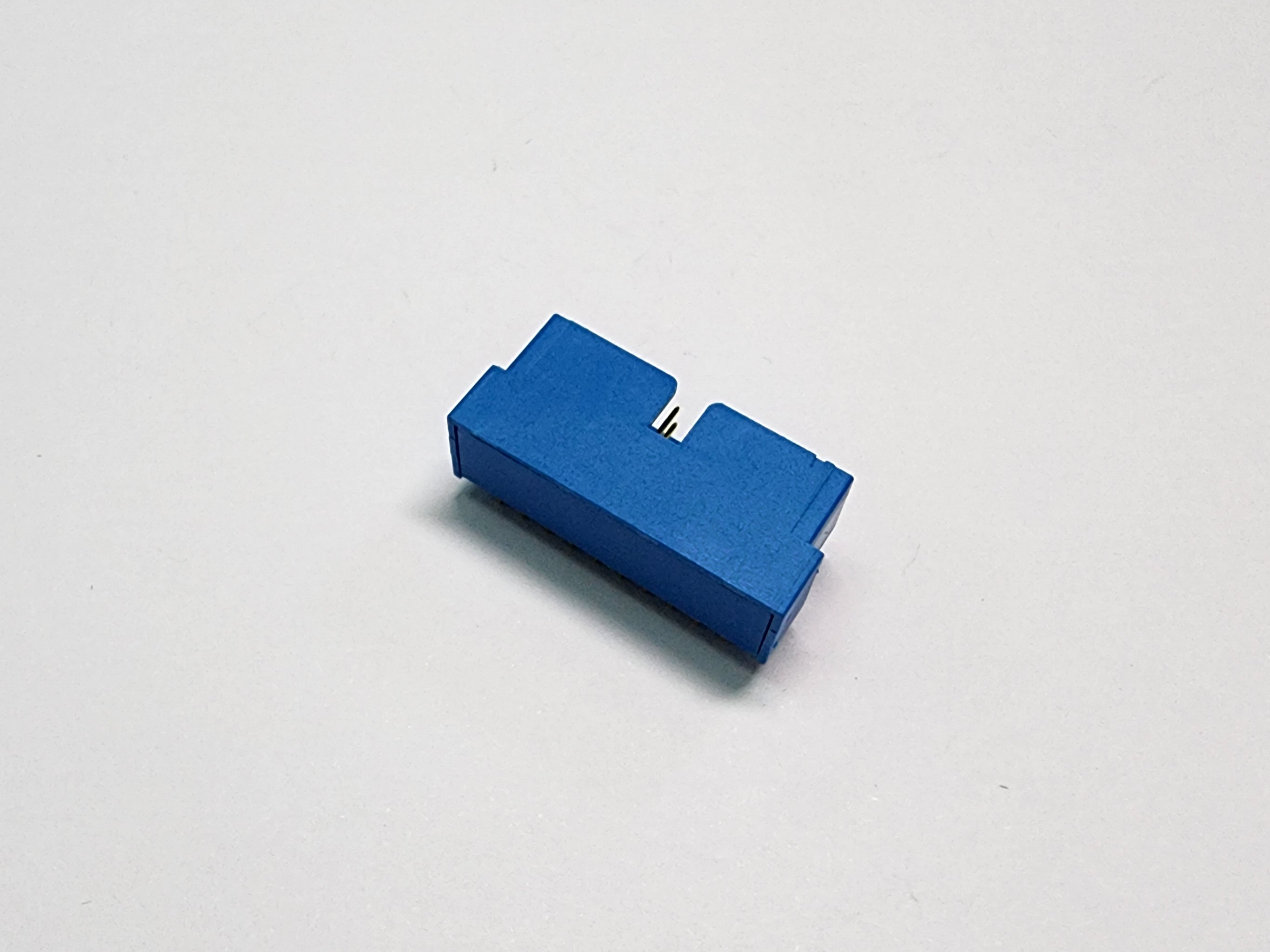

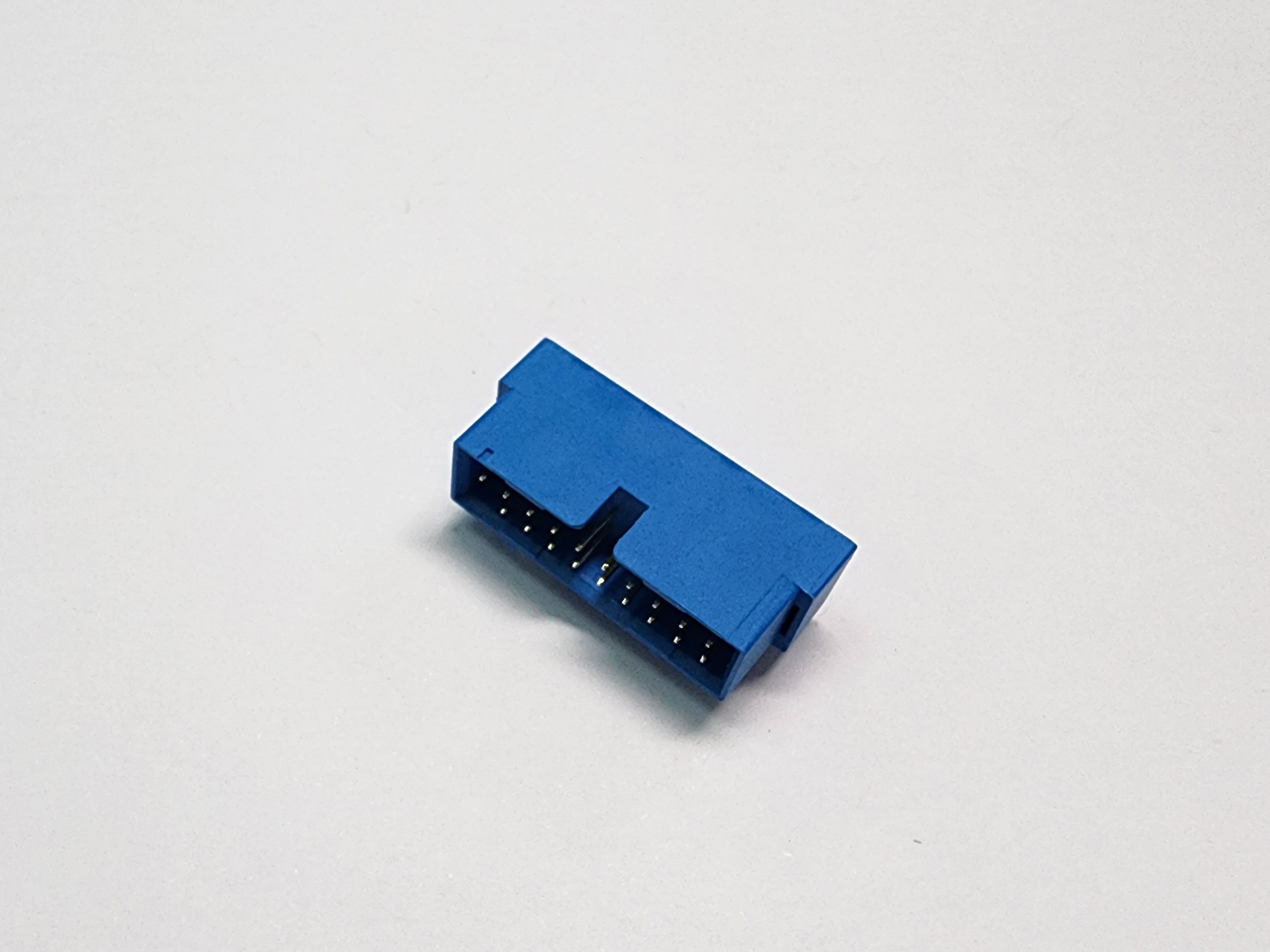

CU3I-M19RDGB-I3
Description
- USB 3.0 Internal Type Connector
- 19Pins
- Receptacle
- Male Type
- Right Angle
- DIP D=2.3mm
- Gold Flash
- Nylon 66
- Blue Color
USB 3.0 Internal Type, 19Pins, Receptacle, Right Angle, Gold Flash, DIP 2.3mm, Nylon 66, Blue Color
Material
- Housing: Nylon66, UL 94V-2 Rated.
- Color: Blue.
- Contact: Brass.
- Plating: Au Plating on Contact Area;
- Sn Plating on Solder Tail;
- Ni(50u” Min.) Underplating over All.
Mechanical
- Insertion Force: 35N Max.
- Withdrawal Force: 15N Min.
- Durability: 25 Cycles.
Electrical Specification
- Current Rating: 0.5A/Pin Min Except That VBUS Pin is 1.5A.
- Contact Resistance: 30mΩ Max.Change of All Pins: 20mΩ.
- Insulation Resistance: 100MΩ Min.
- Dielectric Withstanding Voltage: 500V AC for 1 Minute.
Environmental
- Operating Temperature: -55°C to +105°C.
- RoHS Compliance.
- REACH Compliance.
