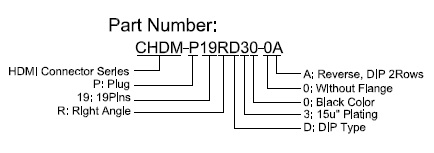

CHDM-P19RD30-0A

Material

• Housing: LCP+50%G.F., UL 94V-0 Rated.
• Color: Black.
• Spacer: LCP+50% G.F., UL 94V-0 rated.
• Color: Black.
• Shield: Brass.
• Plating: Nickel(40u" Min.) Plating.
• Film: PET.
• Color: Brown.
• Contact: Brass.
• Plating: Gold plating on contact area;
  Tin(100u" Min.) plating on solder Tail.
  Nickel(40u" Min.) underplating overall.

Electrical Specification

• Operation Voltage: 40VAC max.
• Current Rating: 0.5Ampere per contact.
• Contact Resistance: 10 mΩ Max.
• Insulation Resistance: 100MΩ Min.
• Dielectric Withstanding Voltage: 500VAC.

Environmental

• Operating Temperature: -25°C to +85°C
• RoHS Compliance.
• Halogen Free.
