Conn-Link Technology Inc

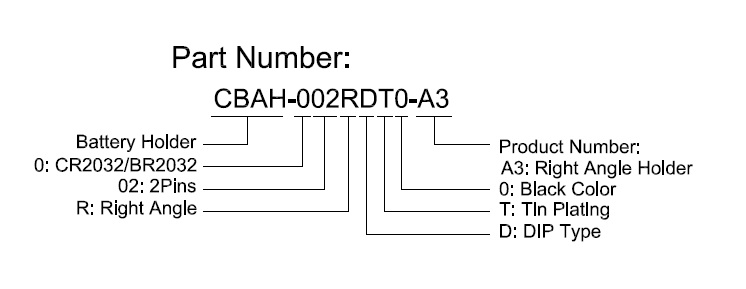

CBAH-002RDT0-A3

Description
  • Battery Holder CR2032/BR2032
  • Right Angle
  • DIP Type

Material

  • Housing: PBT+25% G.F., UL 94V-0 Rated.
  • Color: Black.
  • Contact: Brass.
  • Plating: Tin Plating(100u") over Nickel.

Mechanica&Electrical Specification

  • Application for 3V Lithium Battery.
  • Contact Resistance: 30 Milliohms.
  • Insulation Resistance: 1000MΩ Min.
  • Dielectric Withstanding Voltage: 750VAC per Sec Level.
  • Durability: 50Cycles Min.

Environmental

  • Operating Temperature: -55°C to +85°C
  • RoHS Compliance.
