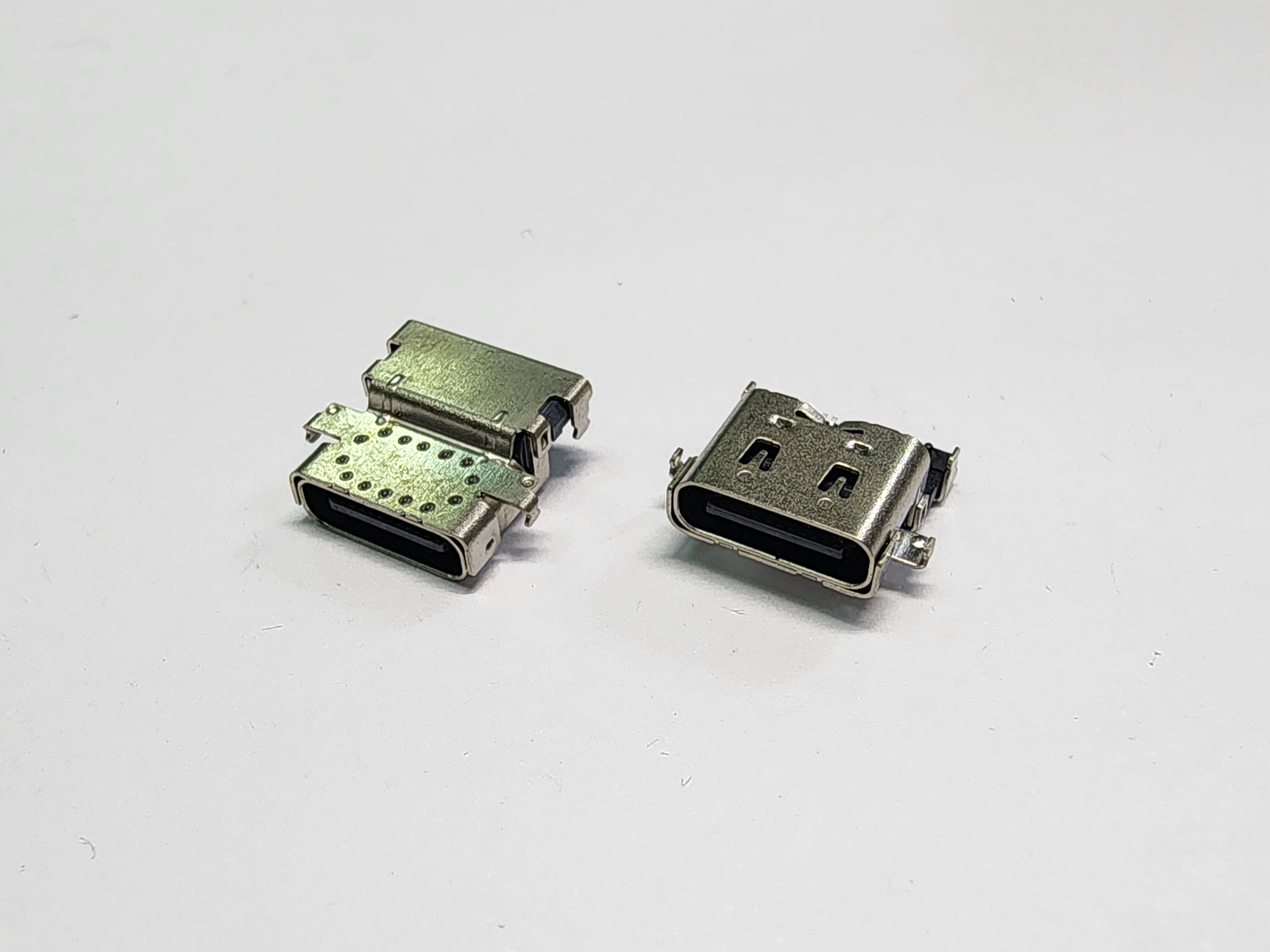

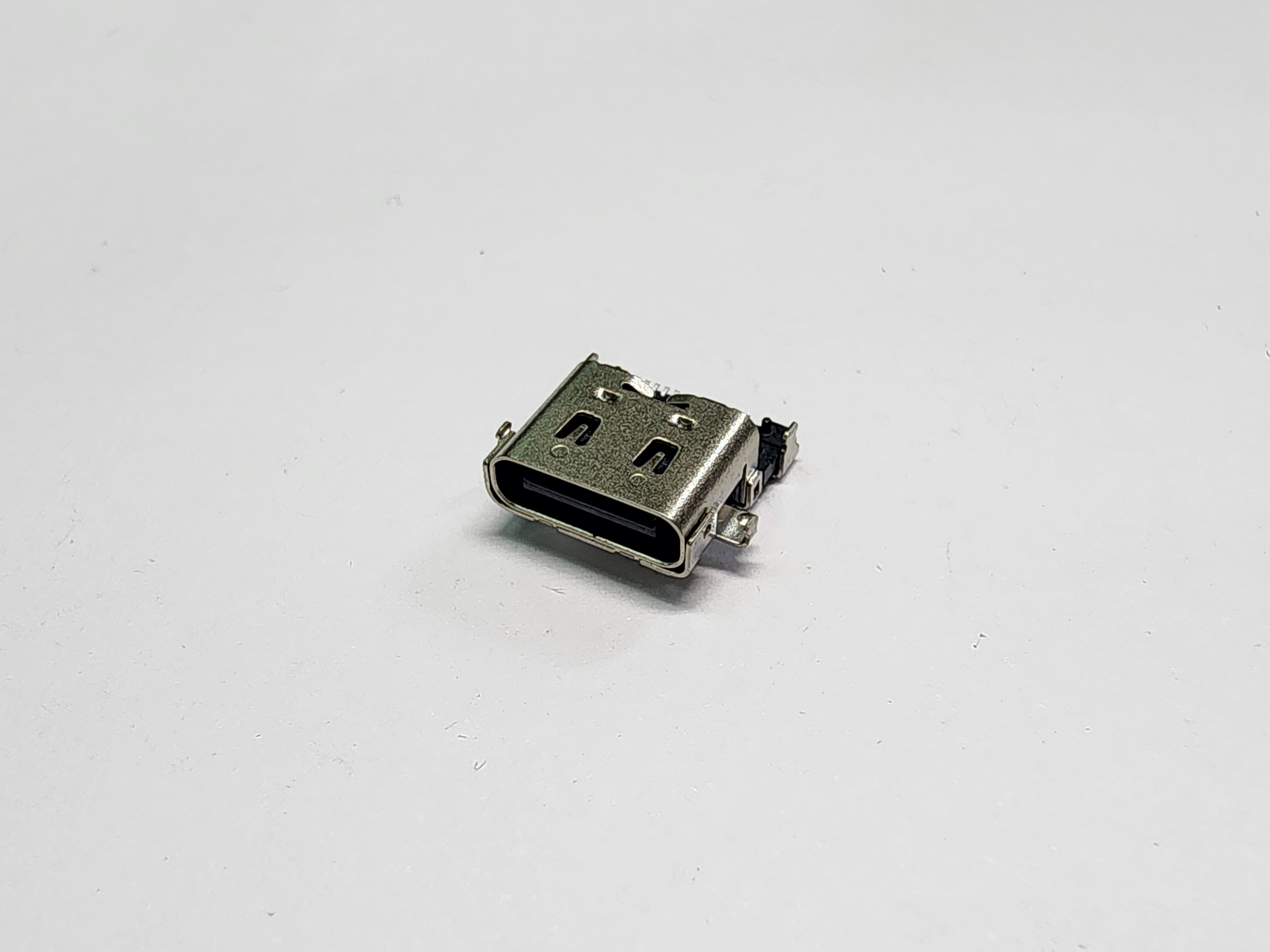

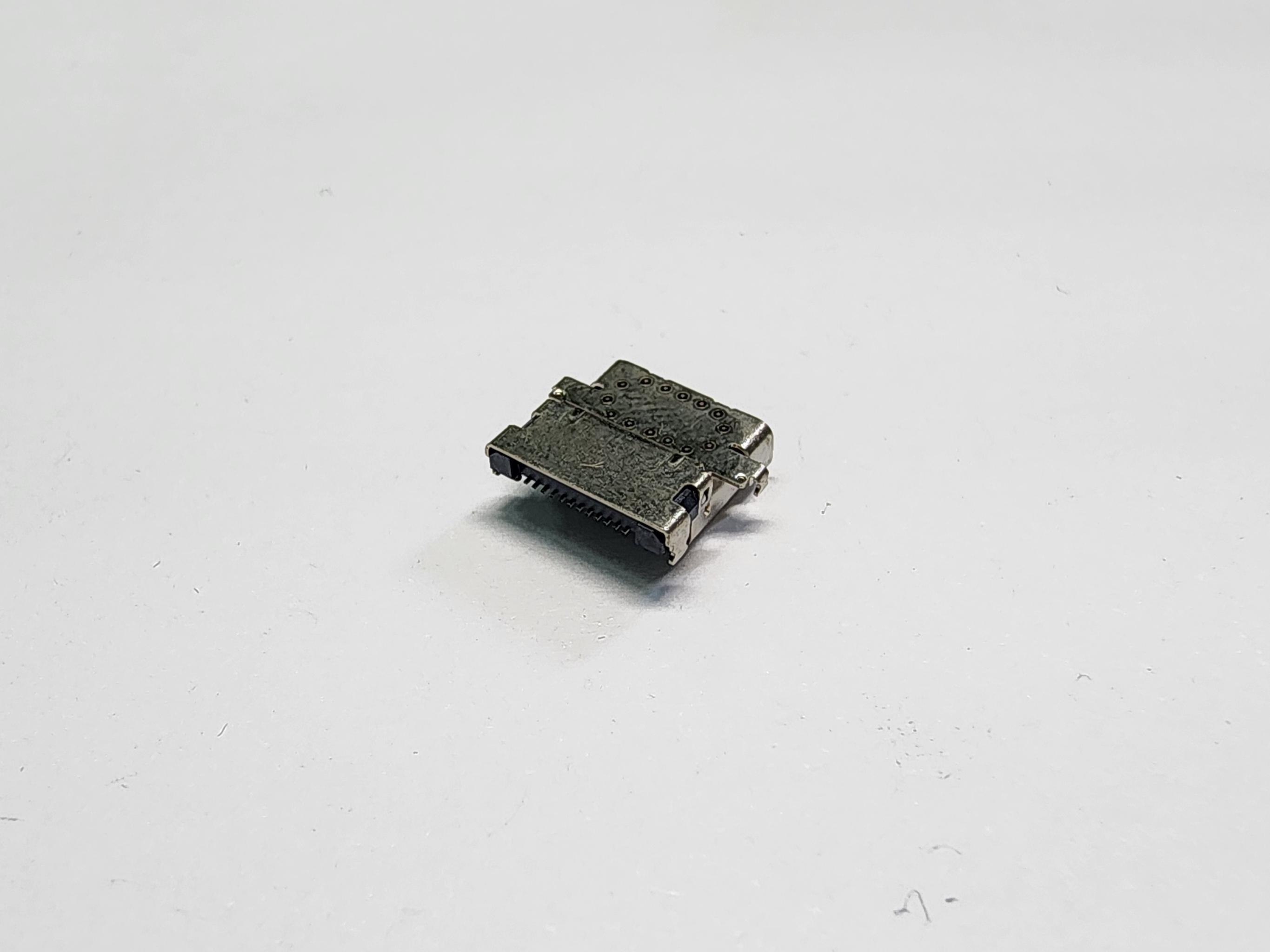

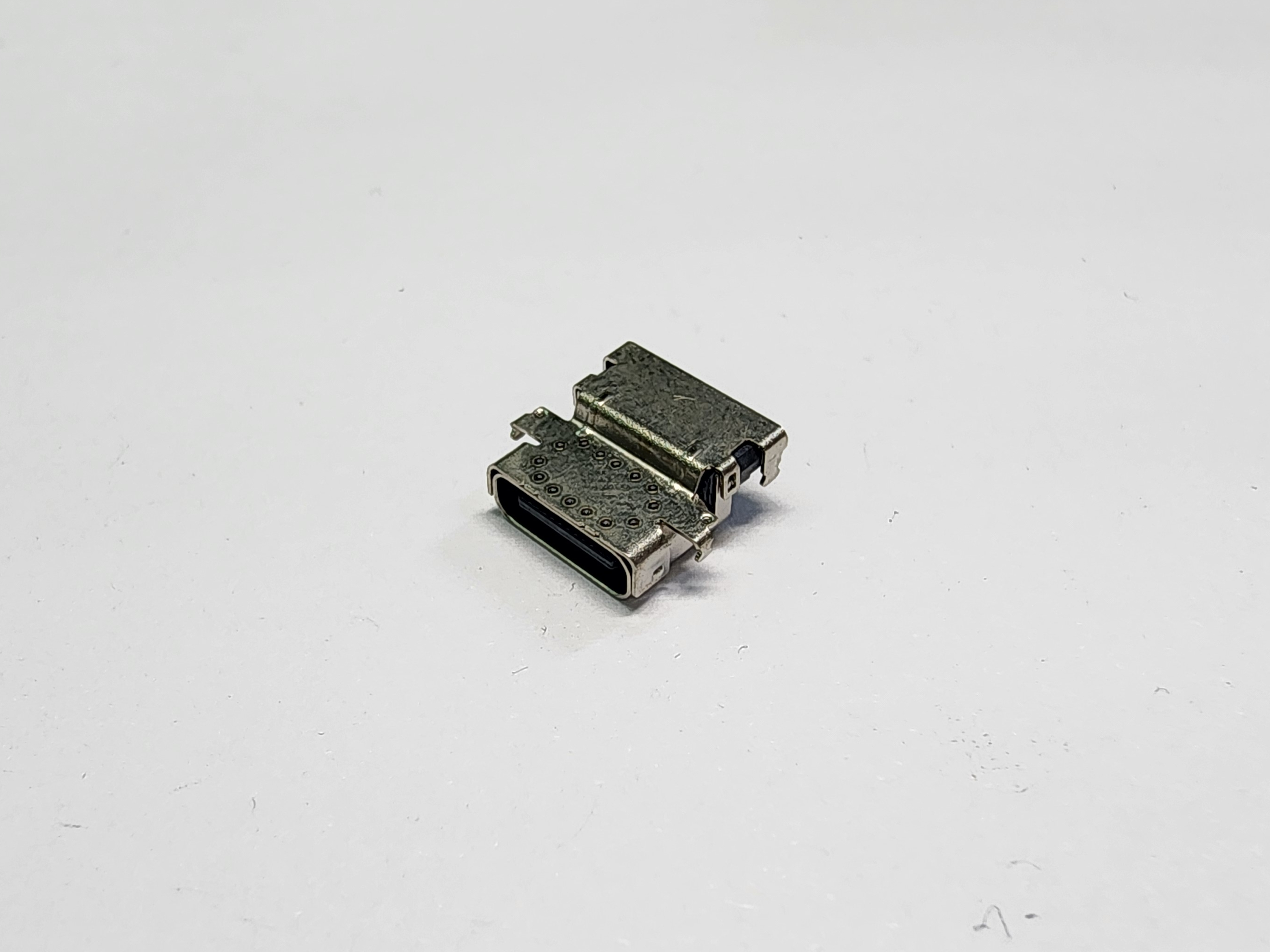

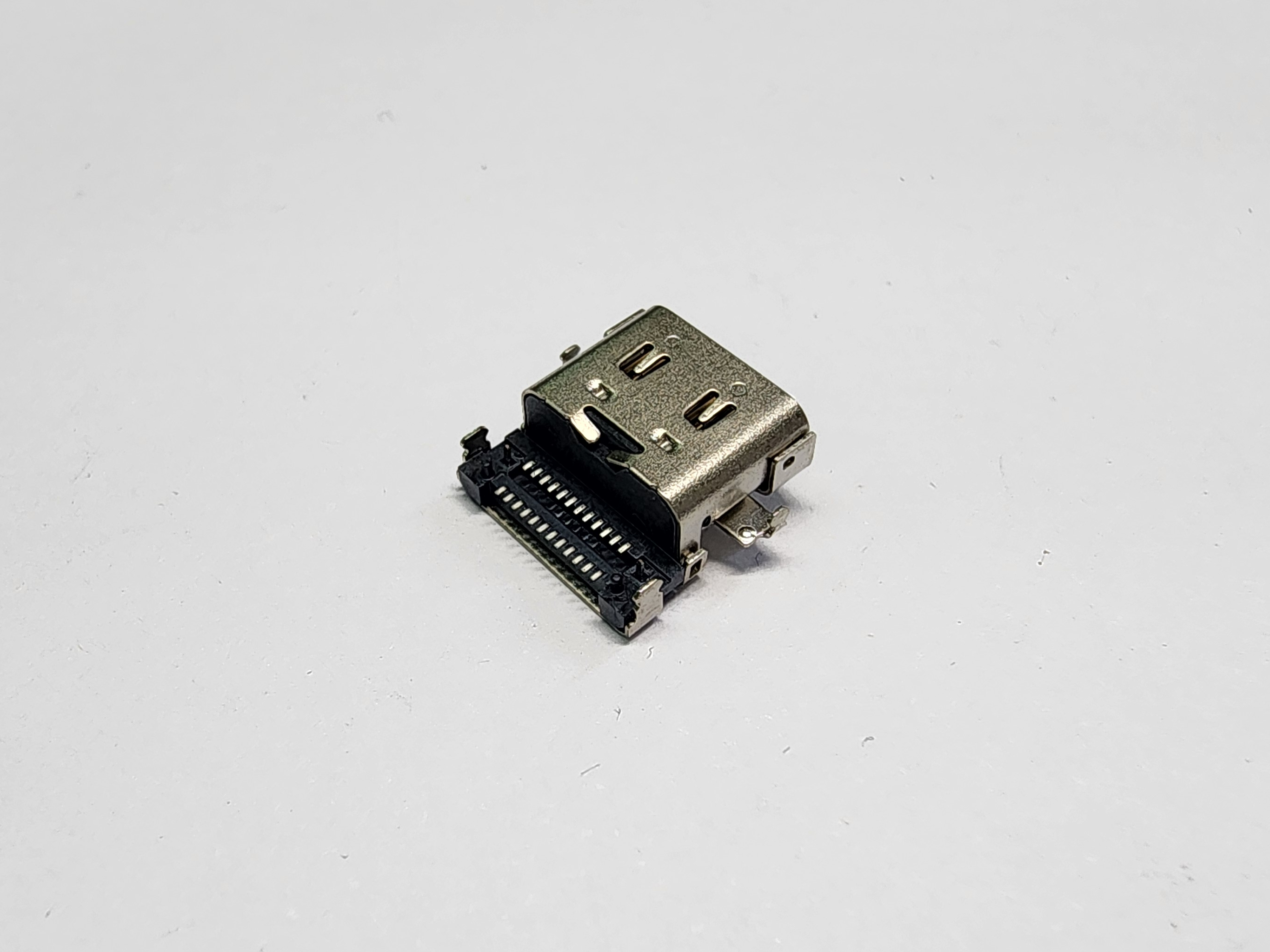

CU4C-R241S40-33
Description
- USB 4.0 Type C Connector
- Gen3
- 24Pins
- Receptacle
- Subside Type
- Dual Rows SMT
- 30u” Gold Plating
- CH=1.40mm
- Body L=9.92mm
- Thermoplastic, Glass Fiber Filled
- Black Color
USB4.0 C Type, Gen3, 24Pins, Receptacle, Subside Type, CH=1.40mm, Dual Rows SMT, 30u" Plating, Body L=9.92mm, Black Color
Material
- Insulator: Thermoplastic, Glass Fiber Filled, UL 94V-0 Rated.
- Color: Black.
- Contact: Copper Alloy.
- Plating: Gold Plating over Nickel on Contact Area;
- Tin Plating over Nickel on Solder Tail.
- Shell: Stainless Steel.
- Plating: Nickel Plating over All.
Mechanical
- Insertion Force: 5~20N.
- Withdrawal Force: 8~20N.
- Durability: 10,000Cycles.
Electrical Specification
- Current Rating: 5.0A Max.
- Voltage Rating: 5V AC Max.
- Contact Resistance: 40mΩ Max.
- Insulation Resistance: 100MΩ Min.
- Dielectric Withstanding Voltage: 100V AC R.M.S.
Environmental
- Operating Temperature: -30°C to +85°C.
- RoHS Compliance.
- REACH Compliance.
