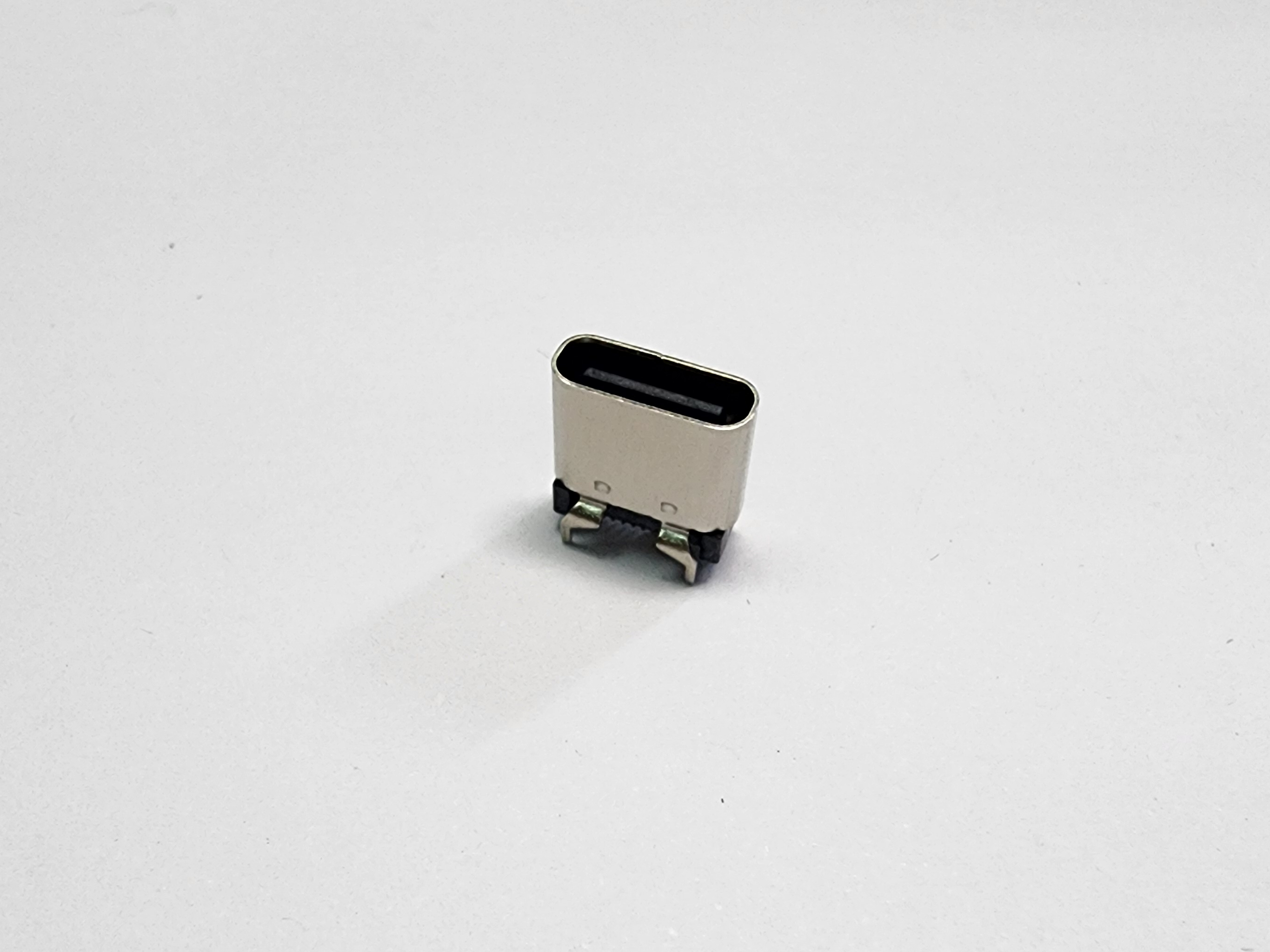

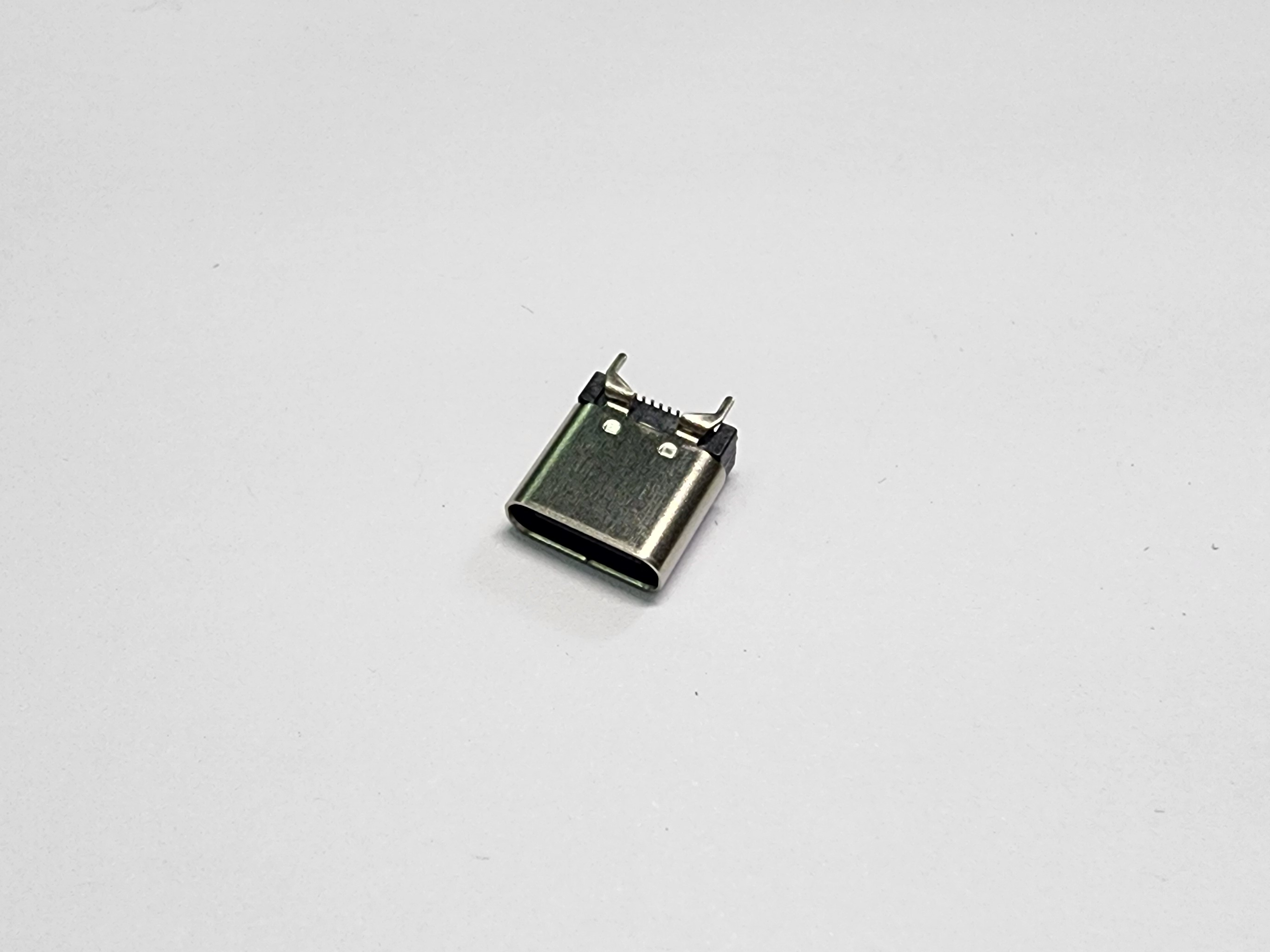

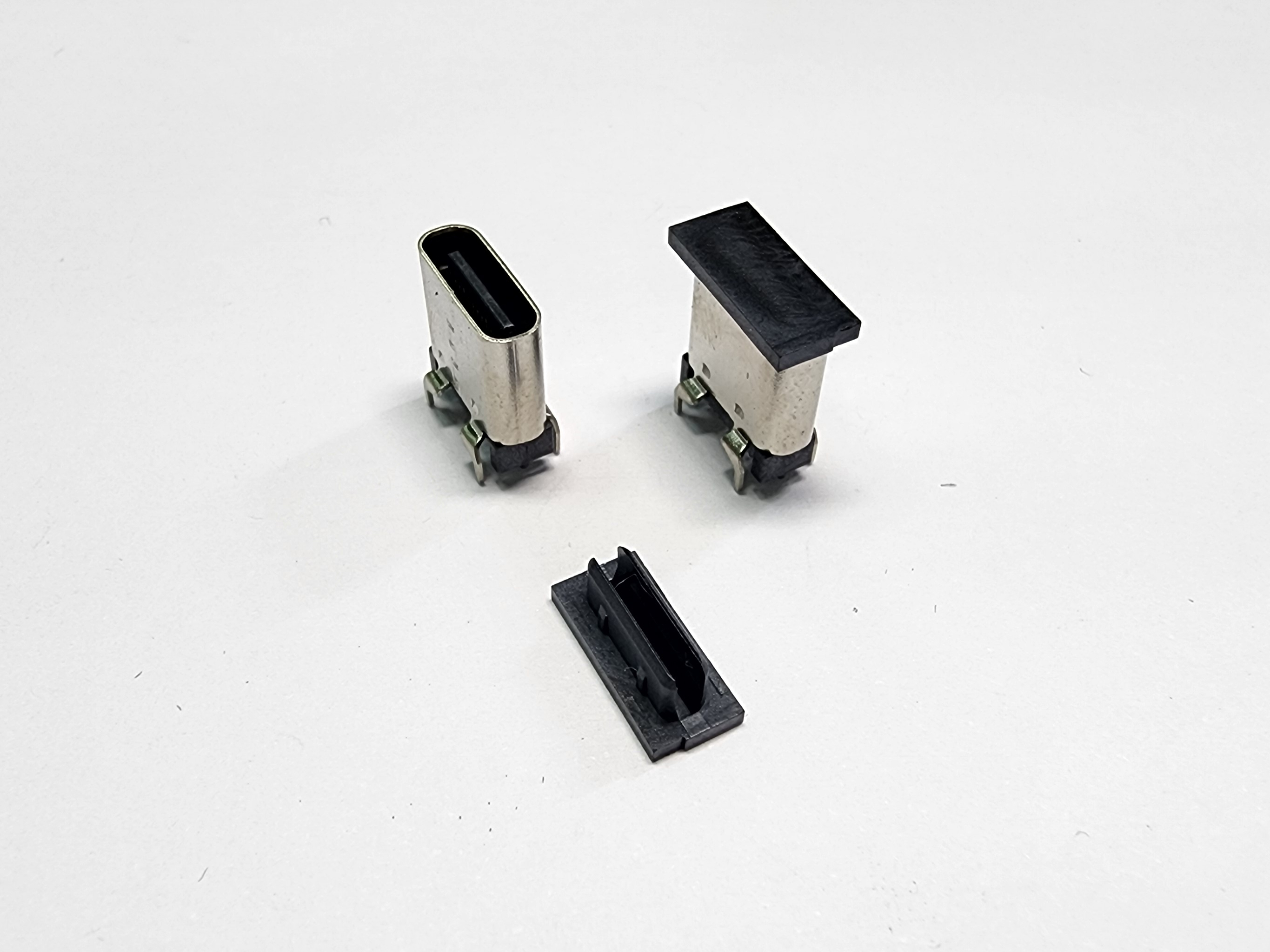

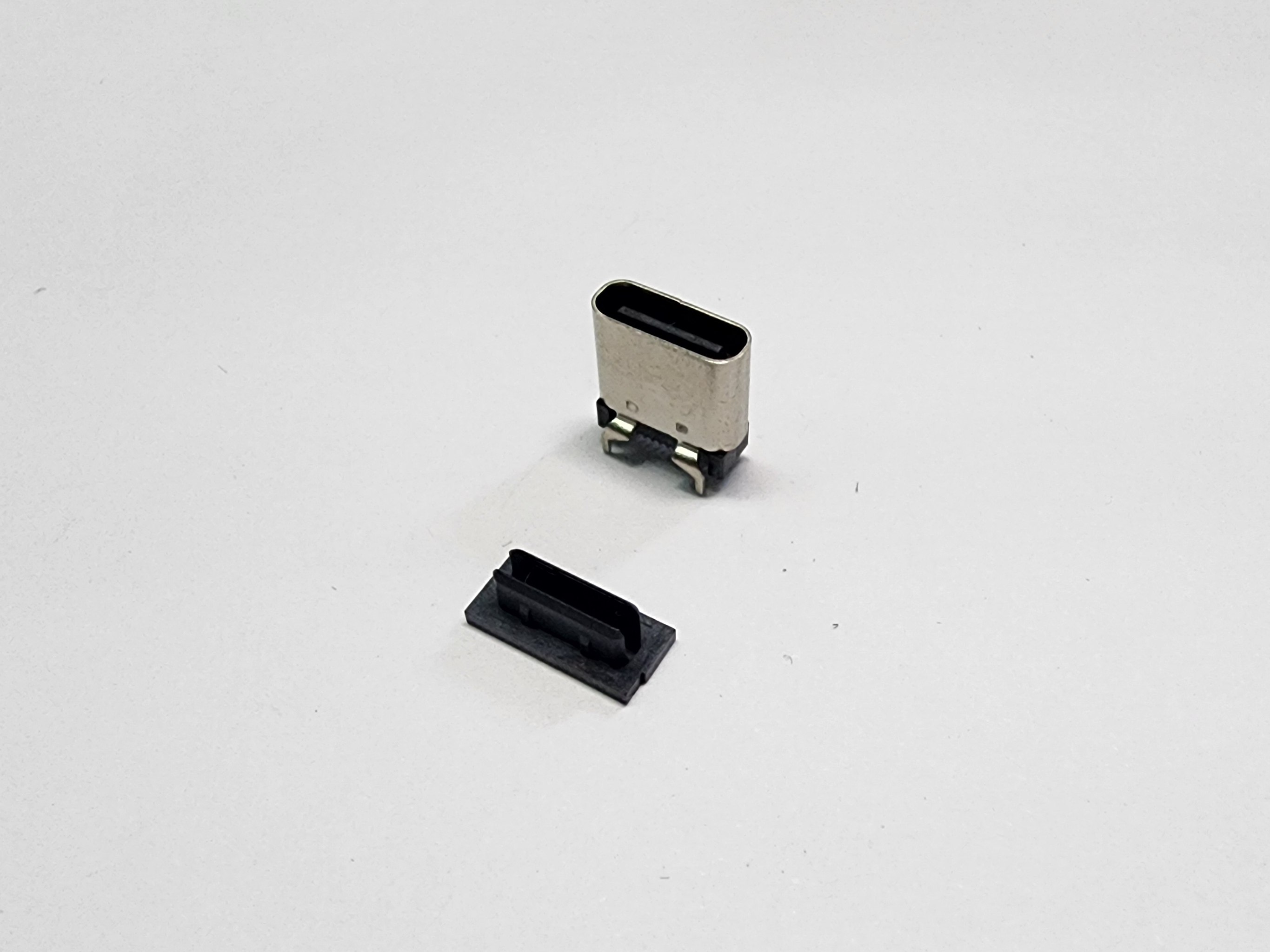

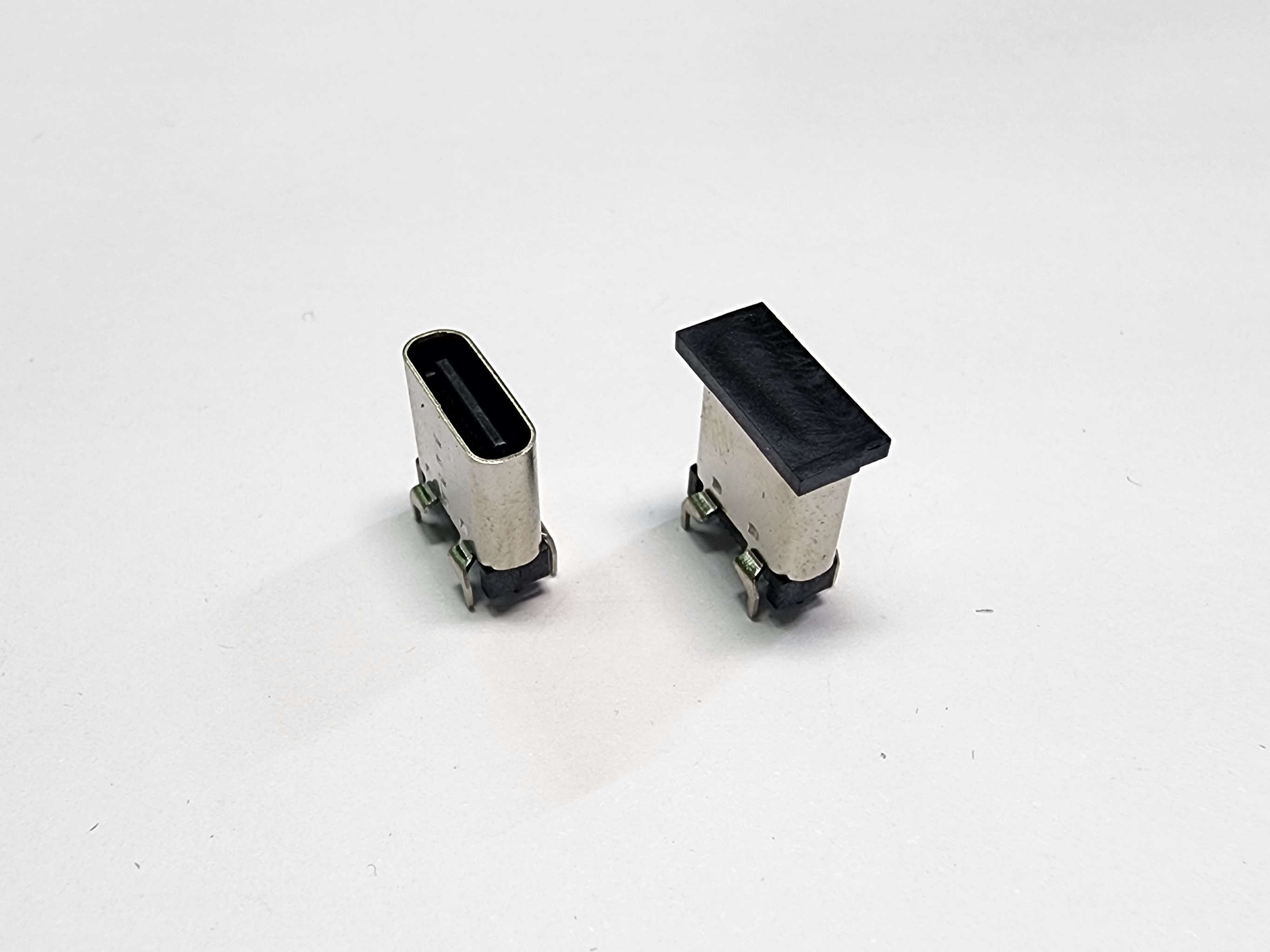

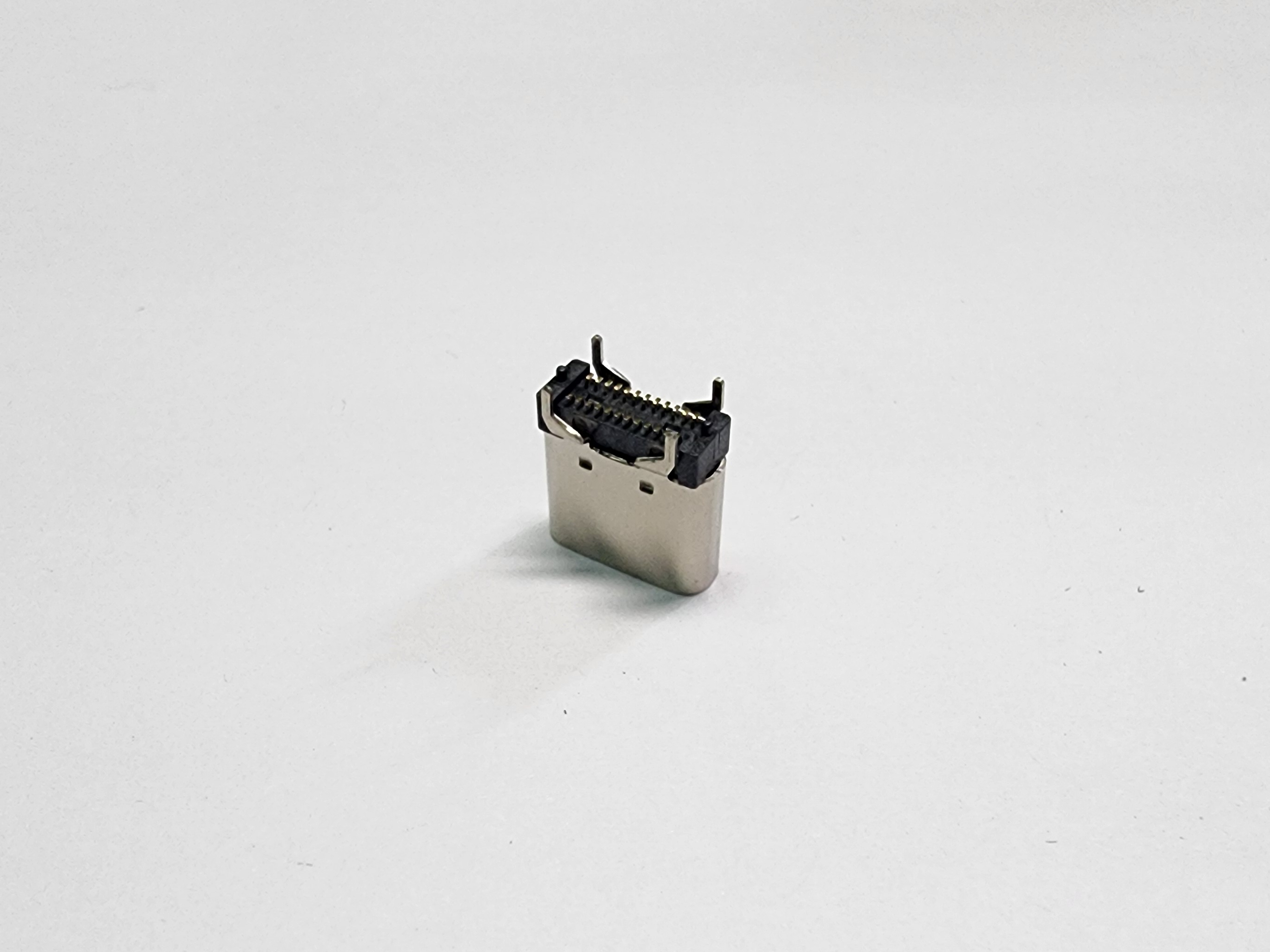

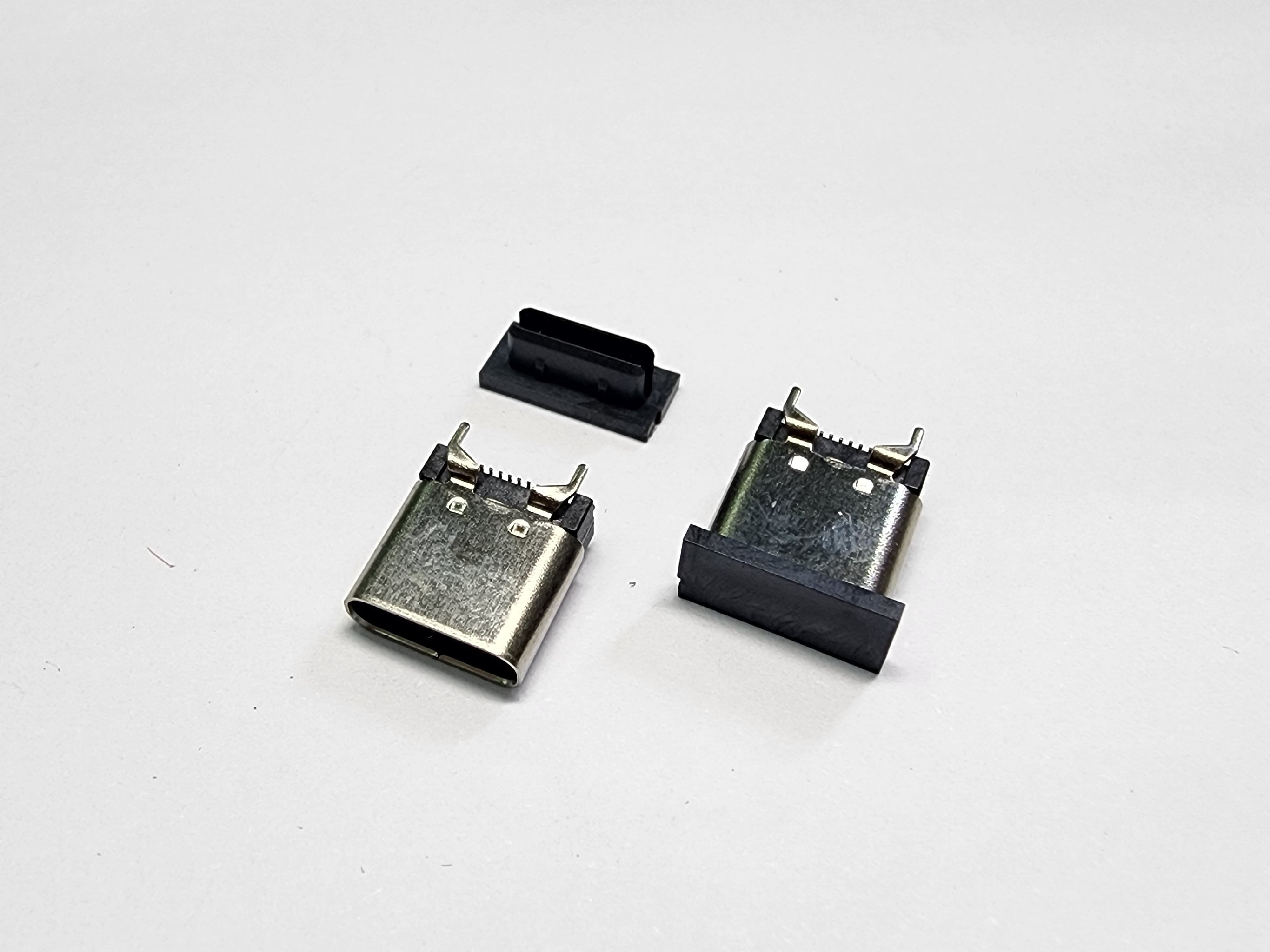

CU4C-R24VSG0-17

USB4.0 C Type, Gen3, 24Pins, Receptacle, Vertical Type, Dual Rows SMT, Gold Flash, H=9.0mm, LCP, Black Color, Shell Pin 4.3mm*6.2mm

Material

• Insulator: LCP, UL 94V-0 Rated.
• Color: Black.
• Contact: Copper Alloy.
• Plating: Gold Plating over Nickel on Contact Area;
• Gold Flash over Nickel on Solder Tail.
• Shell: Stainless Steel, SUS304-H, T=0.30±0.03mm.
• Plating: Nickel Plating over All.
• EMI Shield: Stainless Steel, SUS301-H, T=0.10±0.03mm.
• Latch: Stainless Steel, SUS301-H, T=0.15±0.03mm.

Mechanical

• Insertion Force: 5~20N.
• Withdrawal Force: 8~20N.
• Durability: 10,000Cycles.

Electrical Specification

• Current Rating: 5.0A Max for VBUS.
• 0.25A Max for Others.
• Voltage Rating: 5V AC Max.
• Contact Resistance: 40mΩ Max.
• Insulation Resistance: 100MΩ Min.
• Dielectric Withstanding Voltage: 100V AC R.M.S.

Environmental

• Operating Temperature:  -30°C to +80°C.
• RoHS Compliance.
• REACH Compliance.
