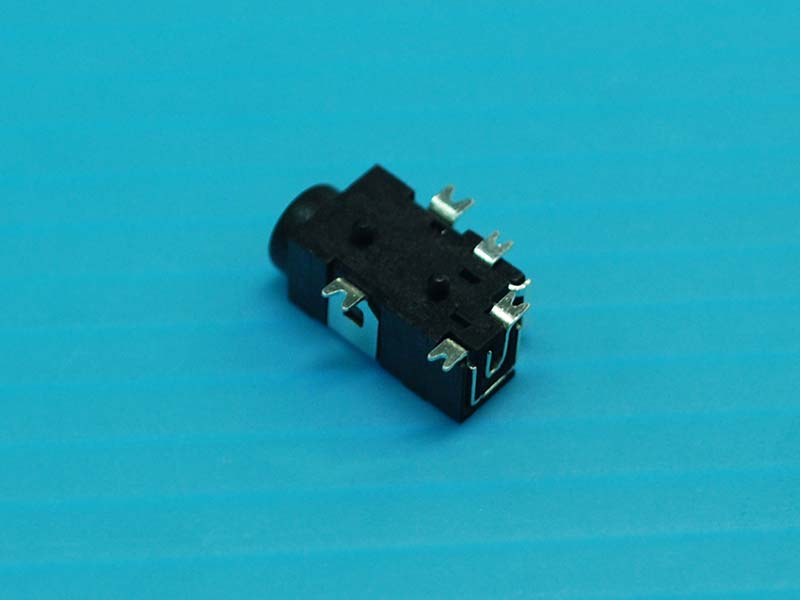

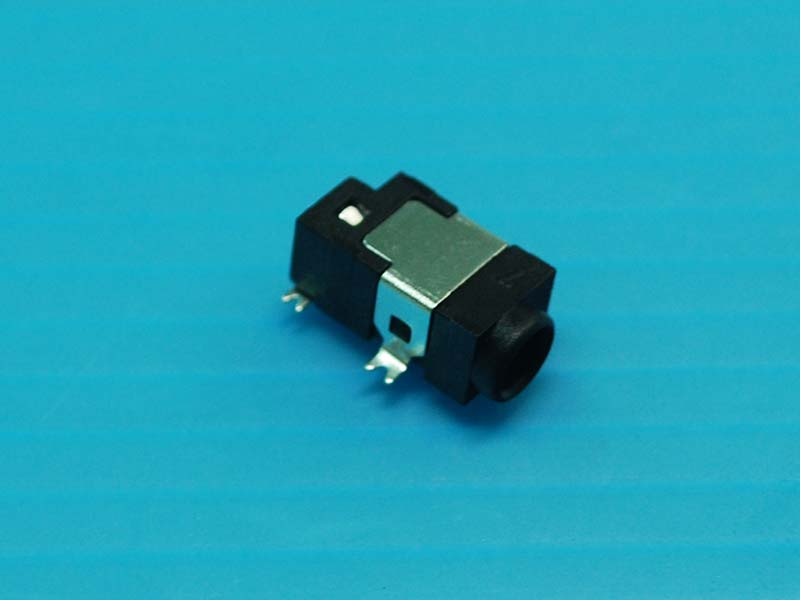

Description
  • DC Power Jack
  • 1.00mm/3.20mm
  • Right Angle
  • SMT Type
  • Ag Plating
  • Black Color

Mechanical

  • Insertion Force: 3N to 30N.
  • Extraction Force: 3N to 30N.
  • Durability: 5,000 Cycles Min.

Electrical Specification

  • Contact Resistance: 30mΩ Max initial, 50mΩ Max after Life Test.
  • Insulation Resistance: 100MΩ Min initial, 50MΩ Min after Life Test.
  • Dielectric Withstand Voltage: 500V AC per Minute.
  • Current Rating: 12V DC at 2.5Amp.

Environmental

  • Operating Temperature: -20°C to +70°C
  • Respervation Temperature: -40°C to +85°C
  • RoHS Compliance.
