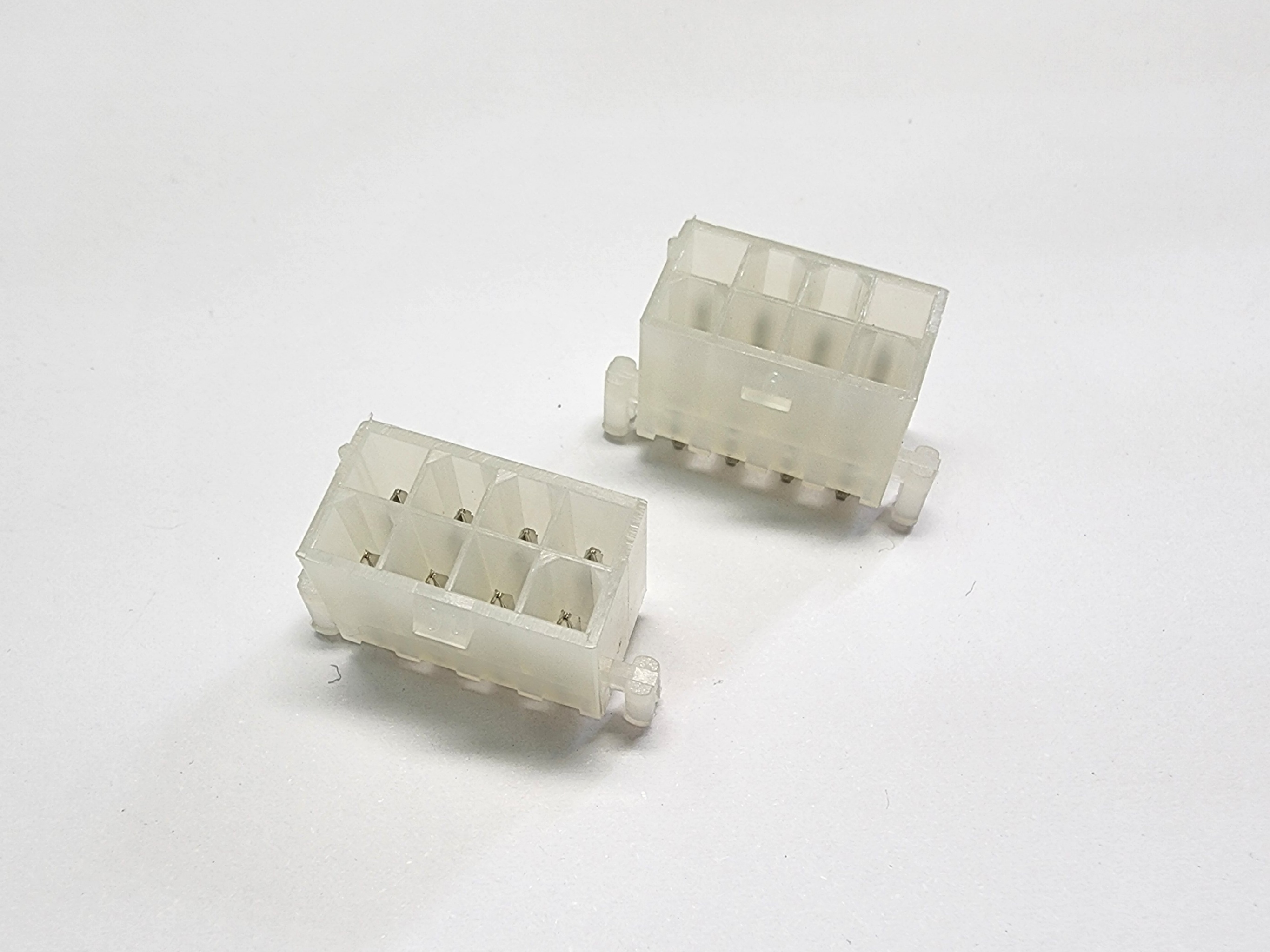

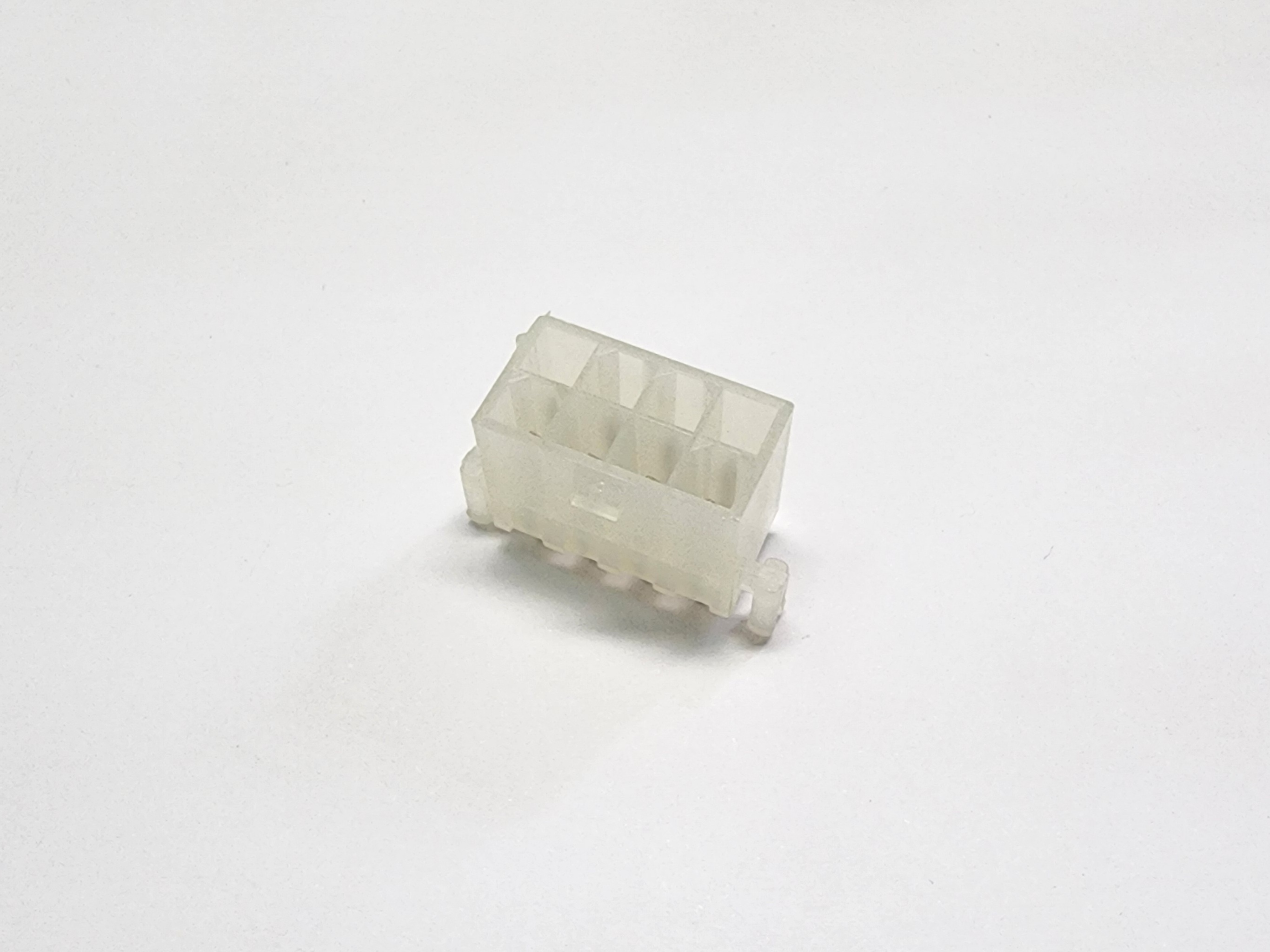

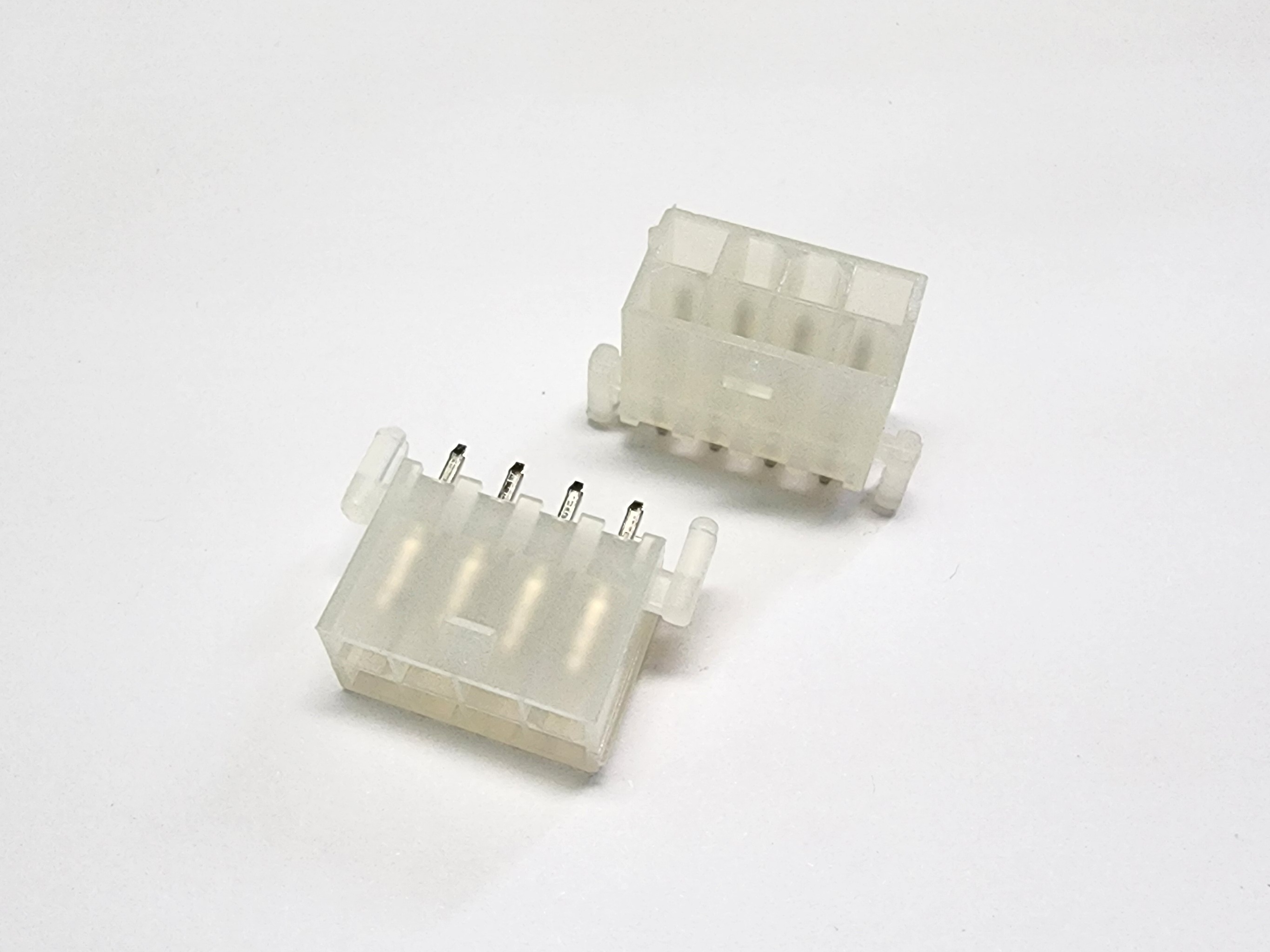

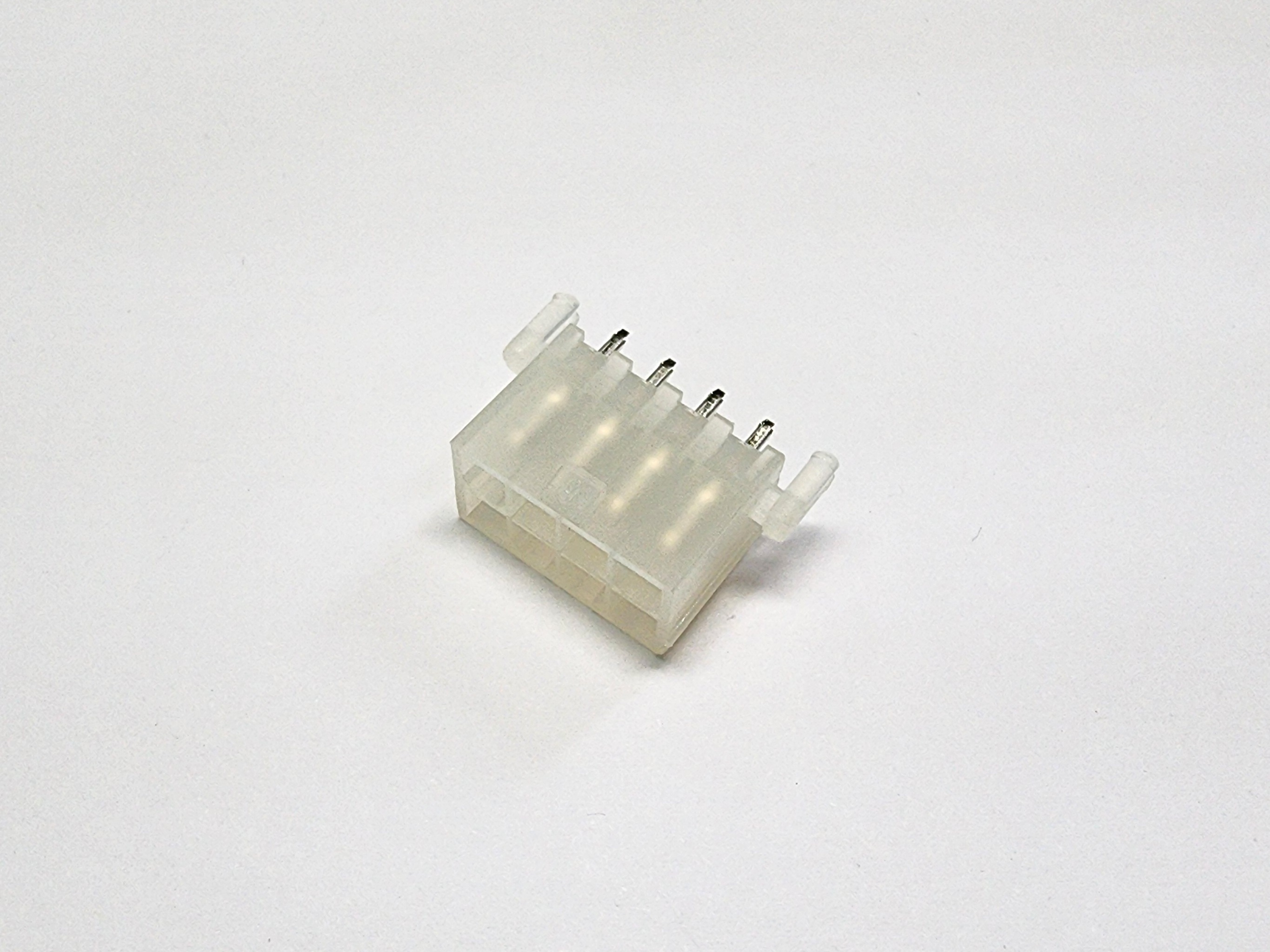

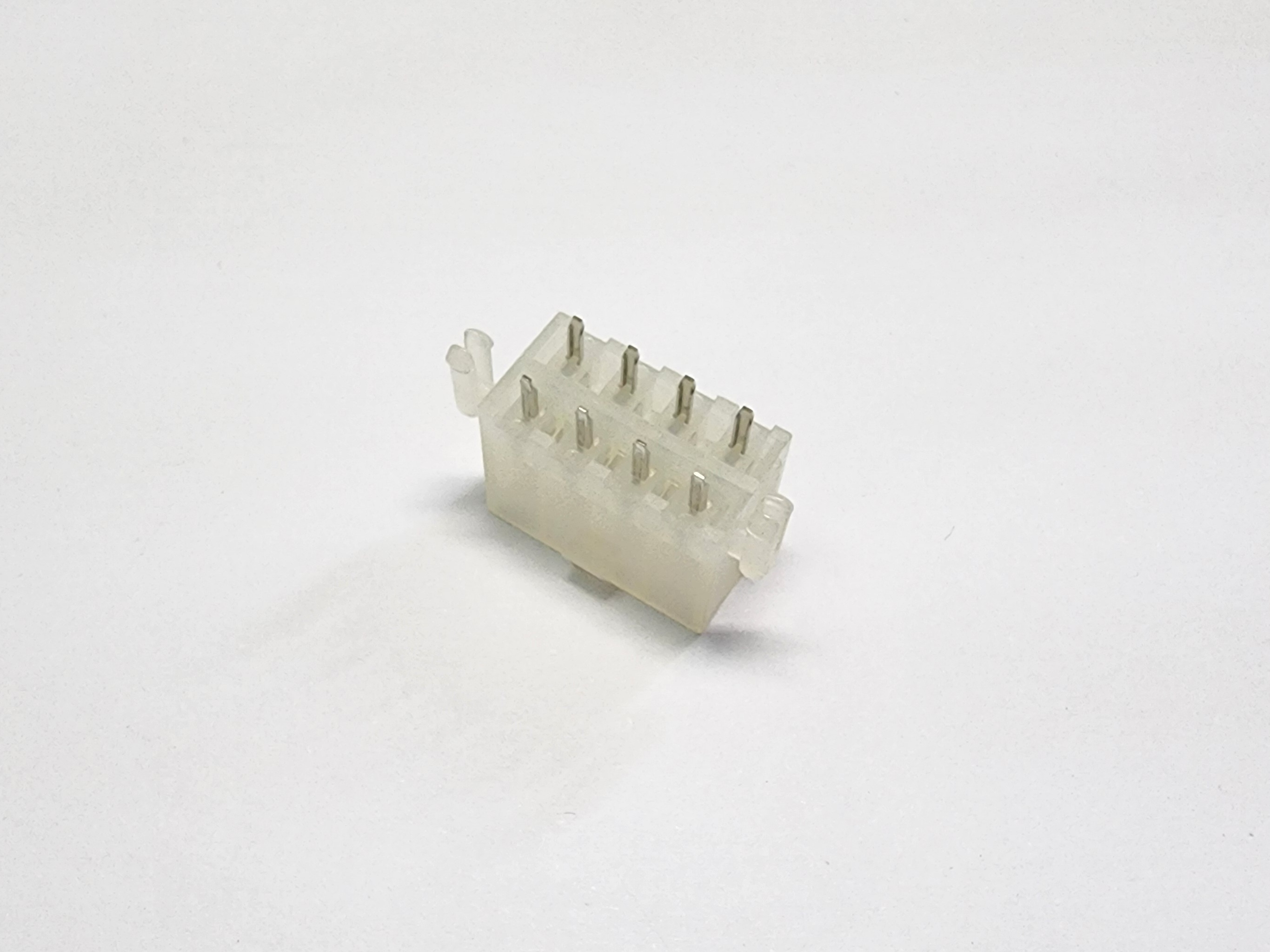

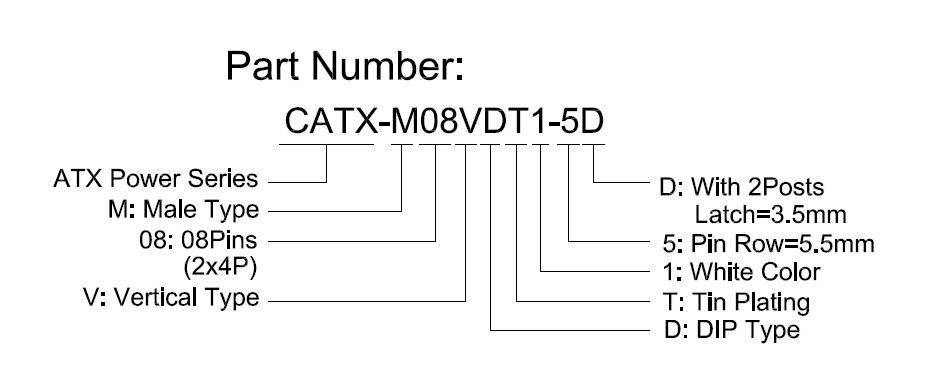

CATX-M08VDT1-5D
Description
- ATX Power Connector
- 2x04Pins (8P)
- Dual Rows 5.5mm*4.2mm
- Male Type
- Vertical Type
- DIP
- Pitch 4.2mm
- Tin Plating
- With 2Posts
- Latch=3.5mm
- Nylon 66
- White Color (Natural)
ATX Power 2X4Pins, Vertical, DIP, 5.5mm*4.2mm, With 2Posts, Latch=3.5mm, Natural White Color
Material
- Housing: NY66, UL 94V-0 Rated.
- Color: White(Natural).
- Contact: Brass C2680.
- Plating: Tin Plating 100u" Min. Over All.
- Nickel Under Plating 50u" Min. Over All.
Electrical Specification
- Voltage Rating: 250V AC/DC.
- Current Rating: 9 Ampere AC/DC.
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 1500V AC per Minute.
Environmental
- Operating Temperature: -40°C to +105°C.
- RoHS Compliance.
- REACH Compliance.
