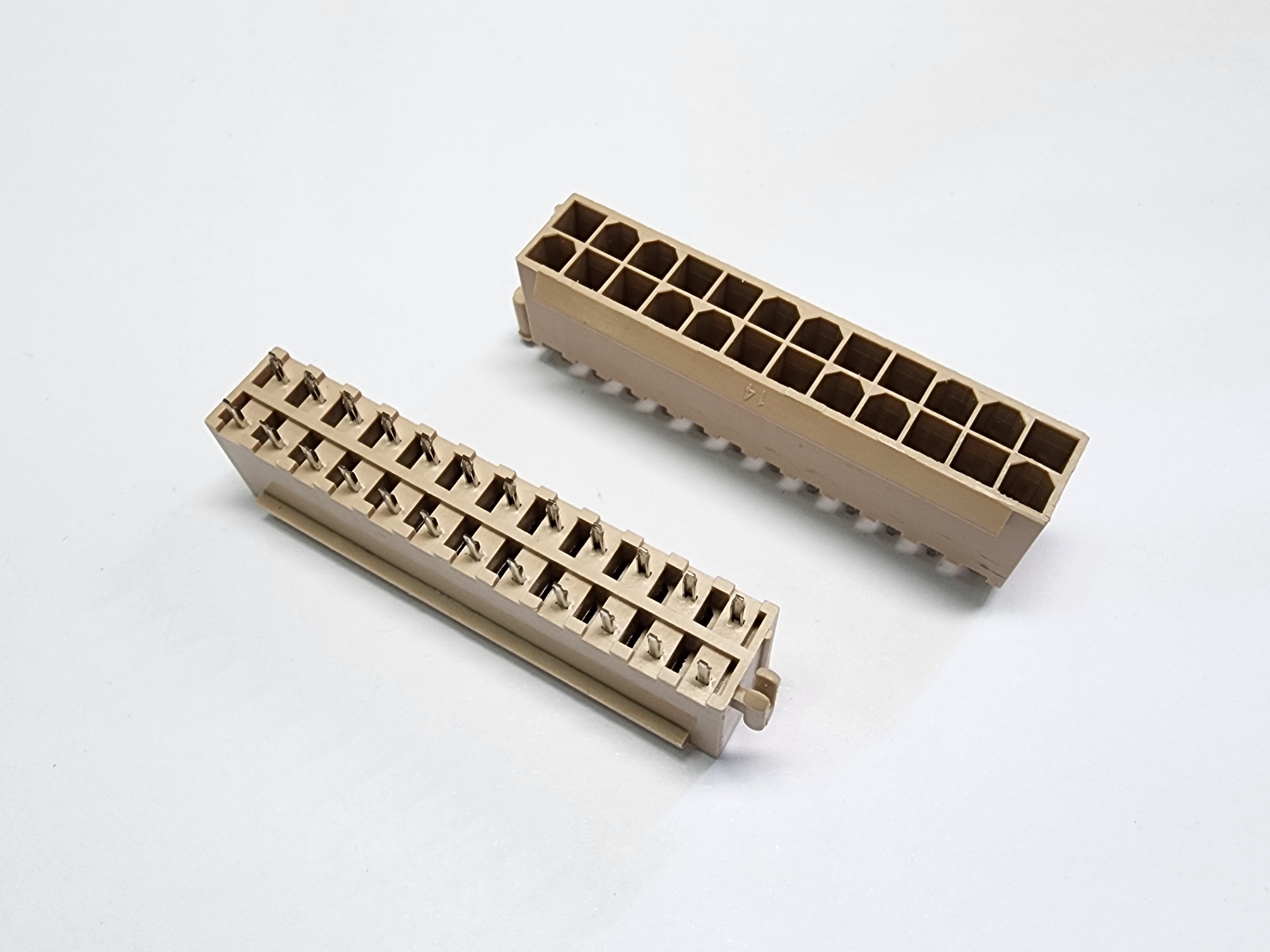

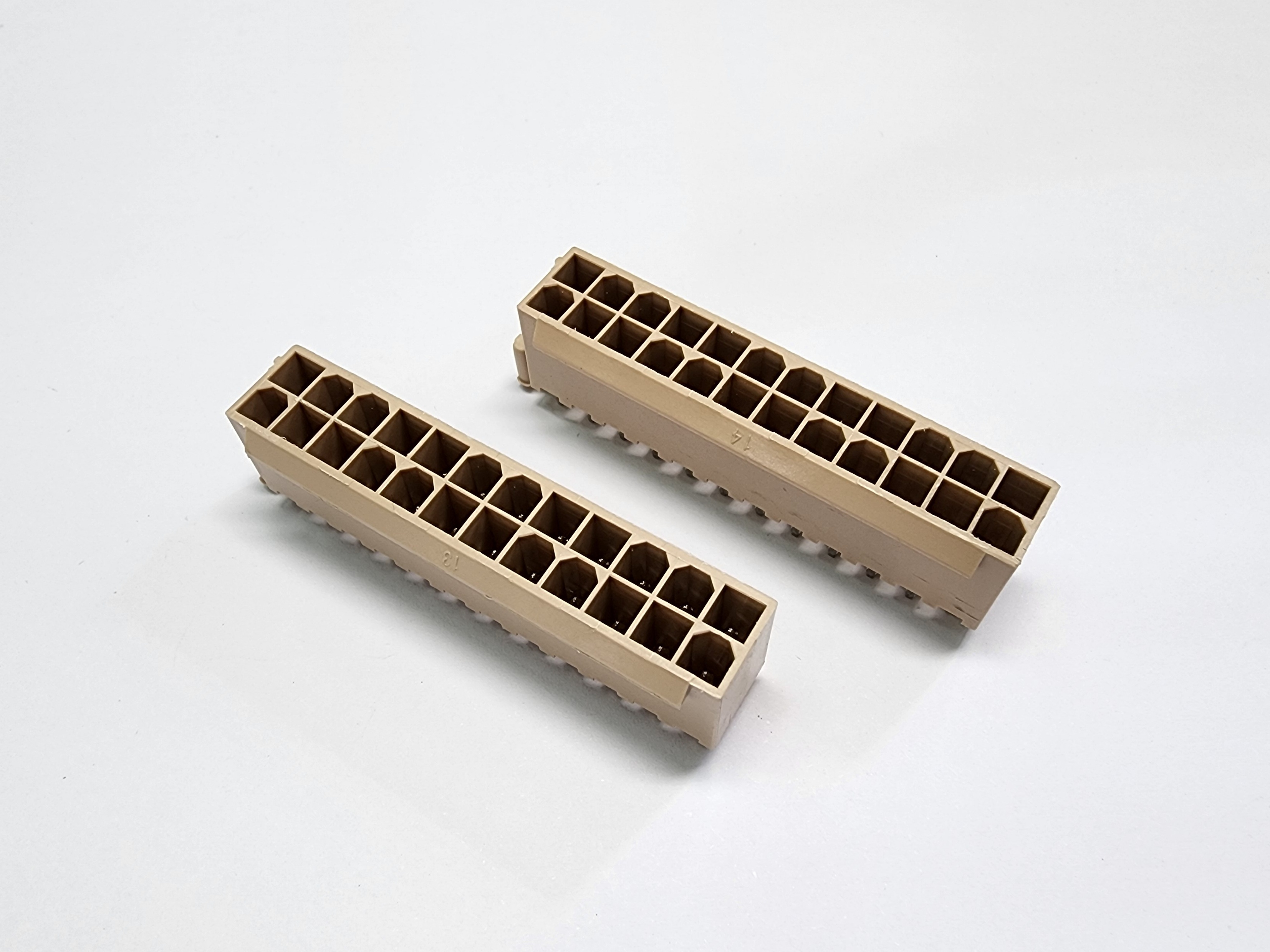

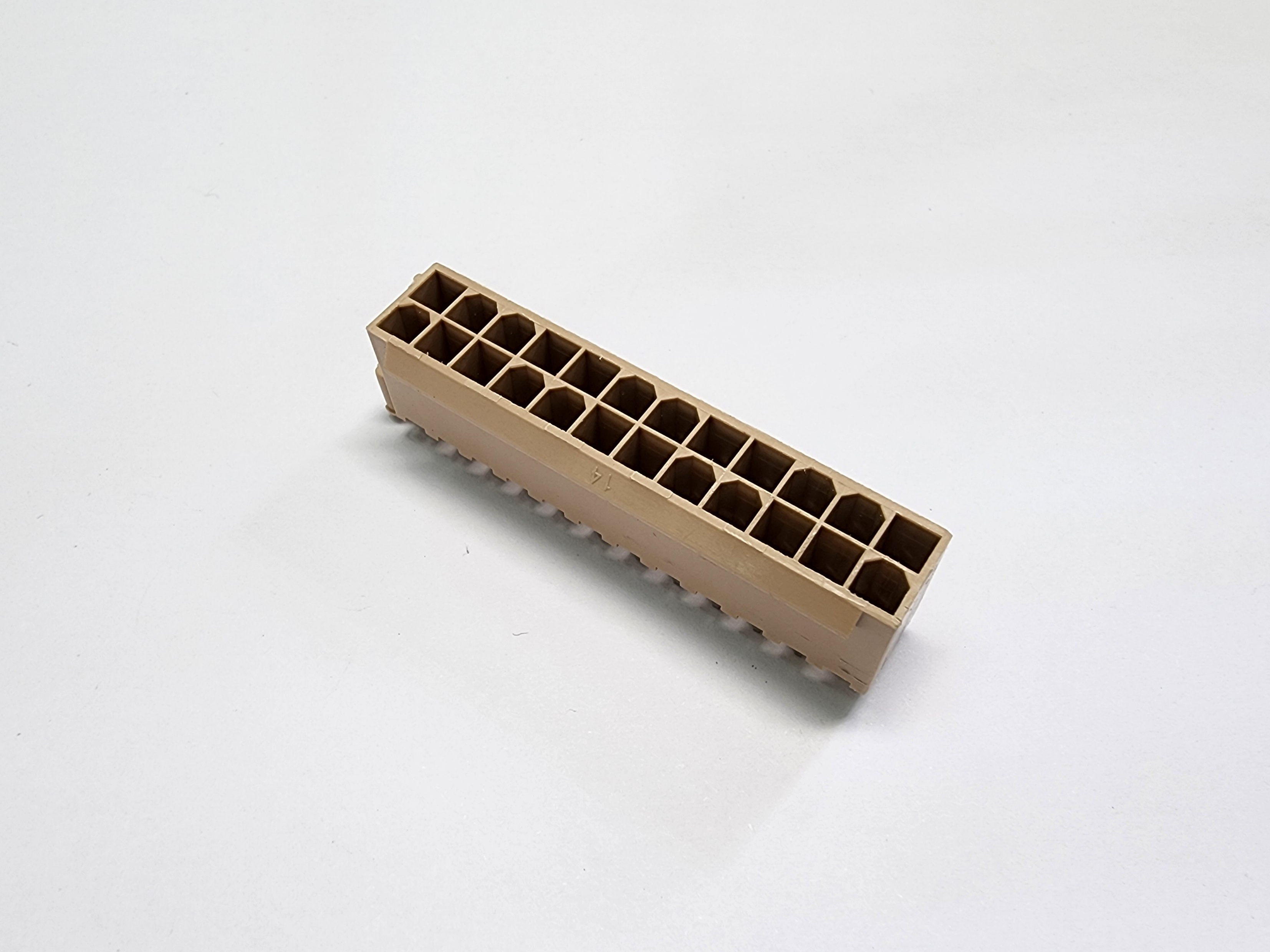

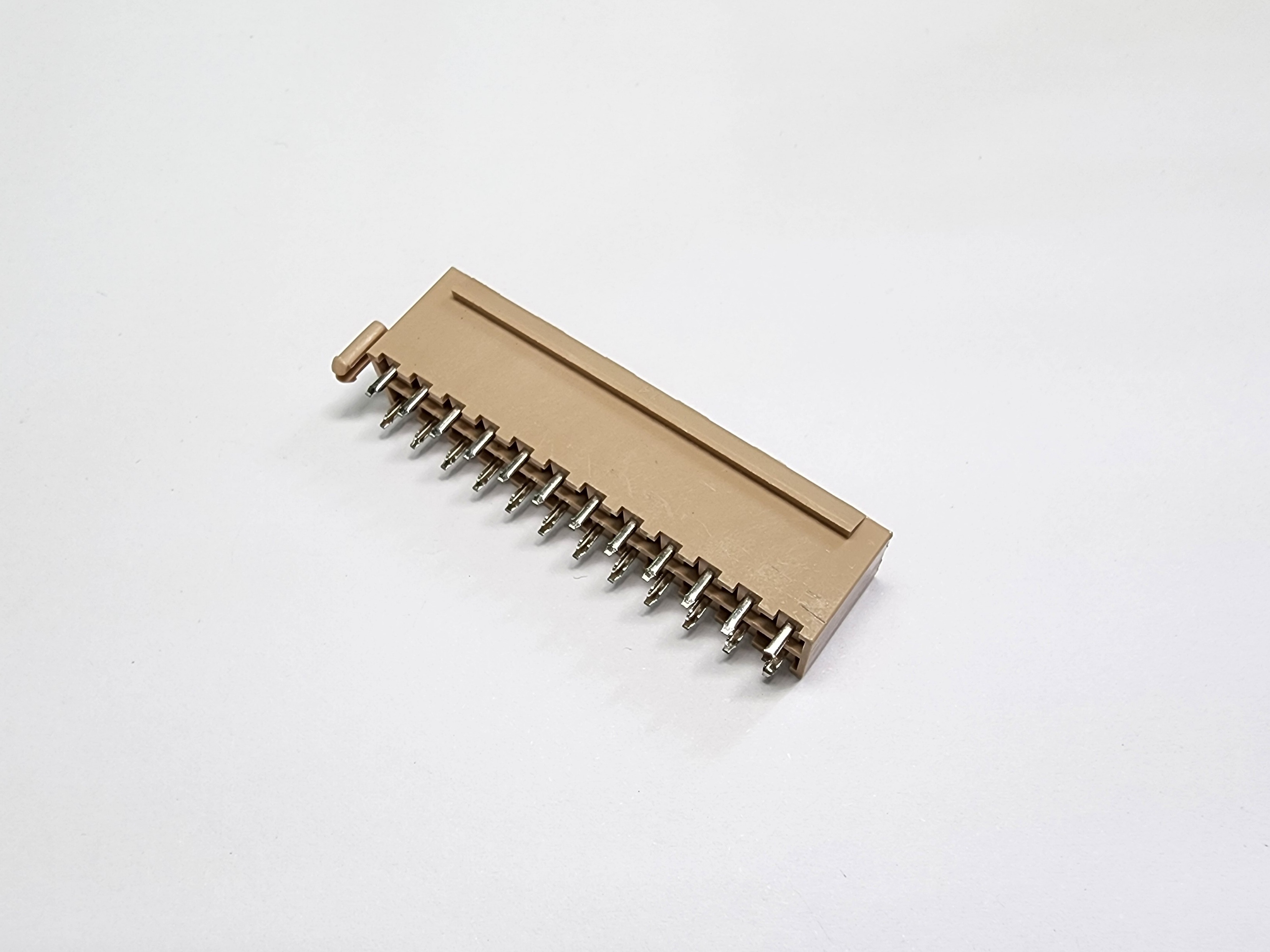

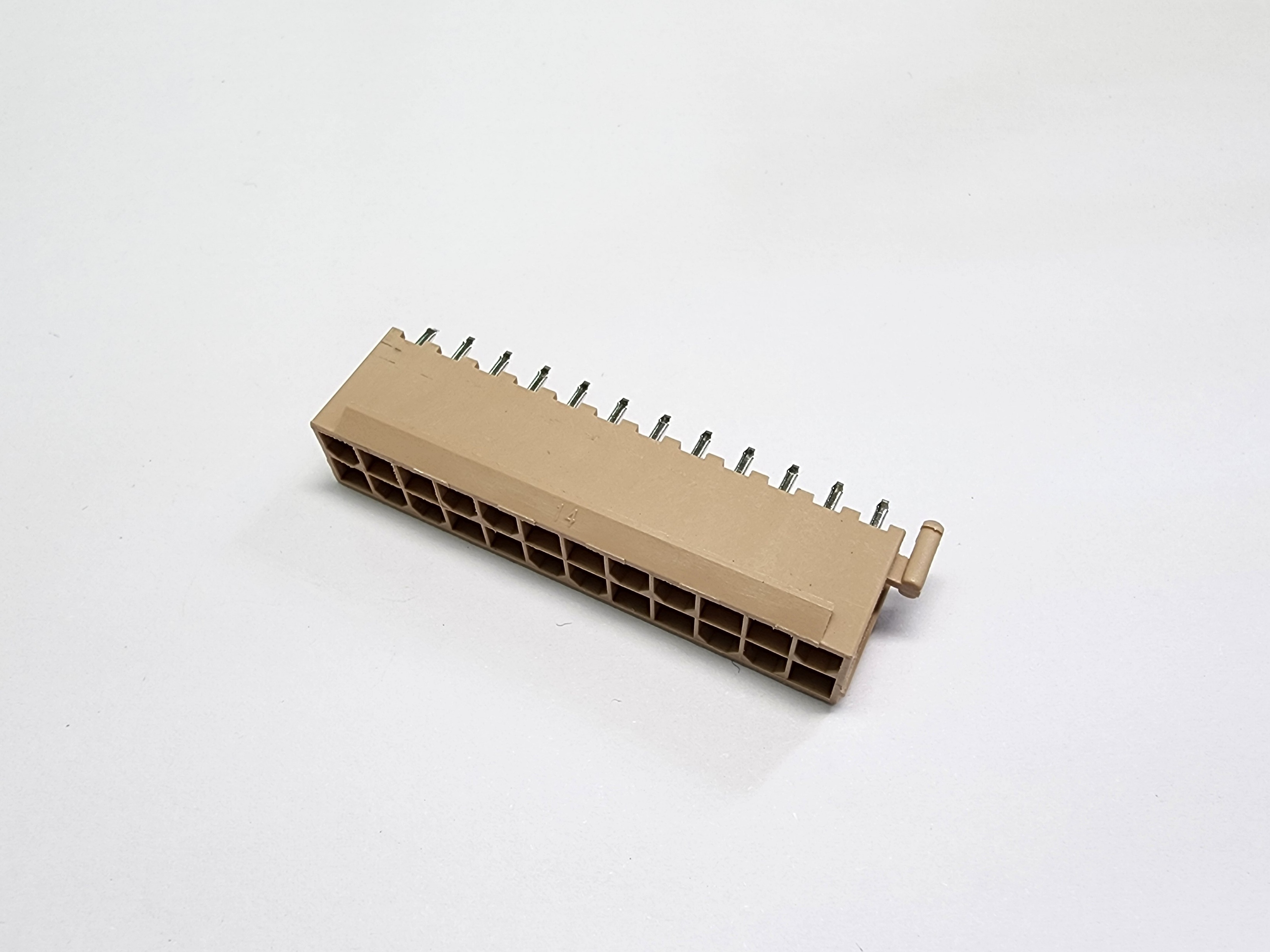

CATX-M24VDT3-5H
Description
- ATX Power Connector
- 2x12Pins (24P)
- Male Type
- Vertical Type
- DIP
- 5.5mm*4.2mm
- Tin Plating
- Without Post
- Long Latch=46.2mm
- Nylon 46
- Gray Color
ATX Power 2X12Pins, Vertical, DIP, 5.5mm*4.2mm, Without Post, Long Latch=46.2mm, Tin Plating, Gray Color
Material
- Housing: NY46, UL 94V-0 Rated.
- Color: Gray.
- Contact: Brass C2680.
- Plating: Tin Plating 100u" Min. Over All;
- Nickel Under Plating 50u" Min. Over All.
Electrical Specification
- Voltage Rating: 250V AC/DC.
- Current Rating: 9Ampere AC/DC.
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 1500V AC per Minute.
Environmental
- Operating Temperature: -40°C to +105°C.
- RoHS Compliance.
- REACH Compliance.
