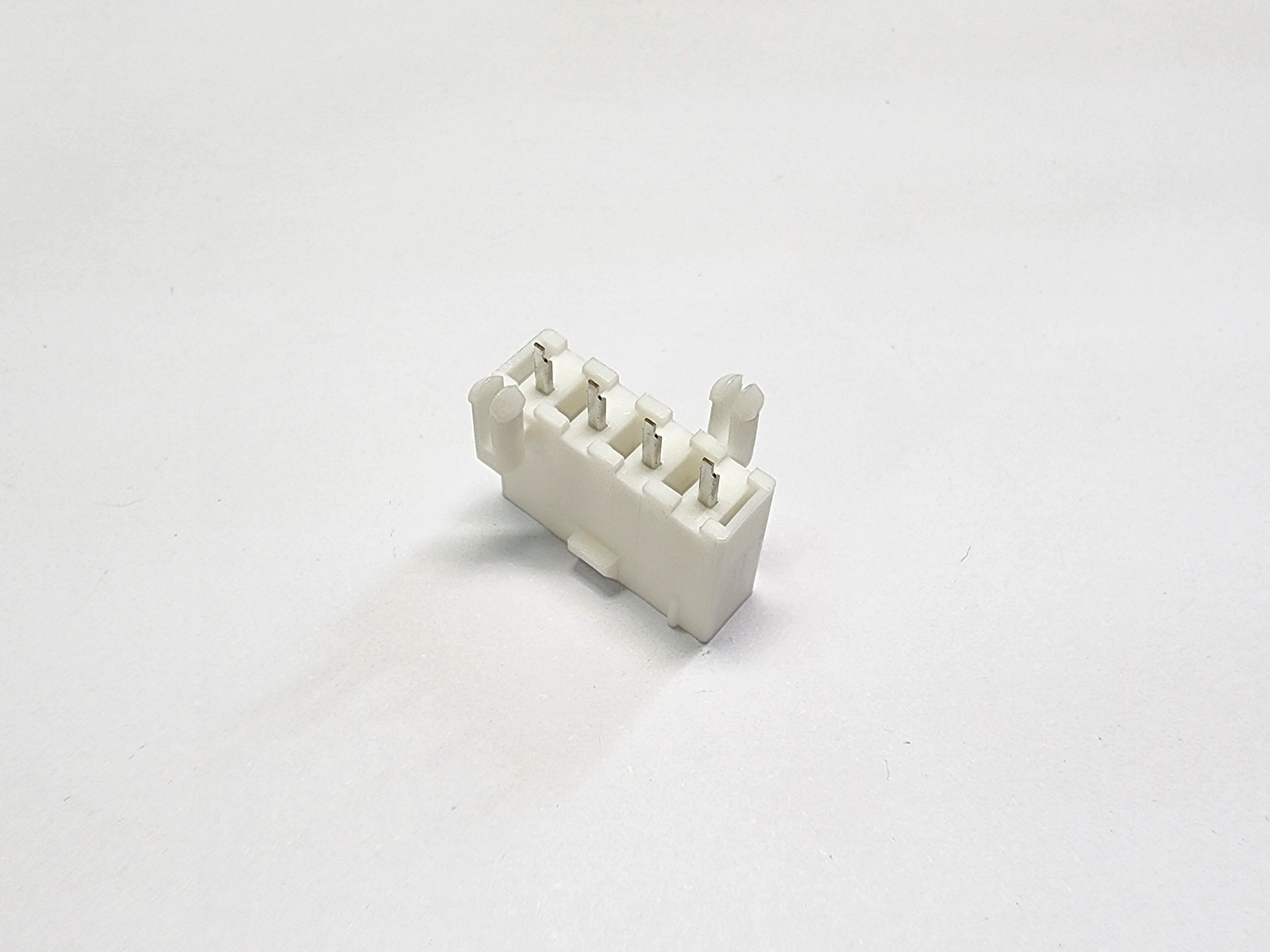

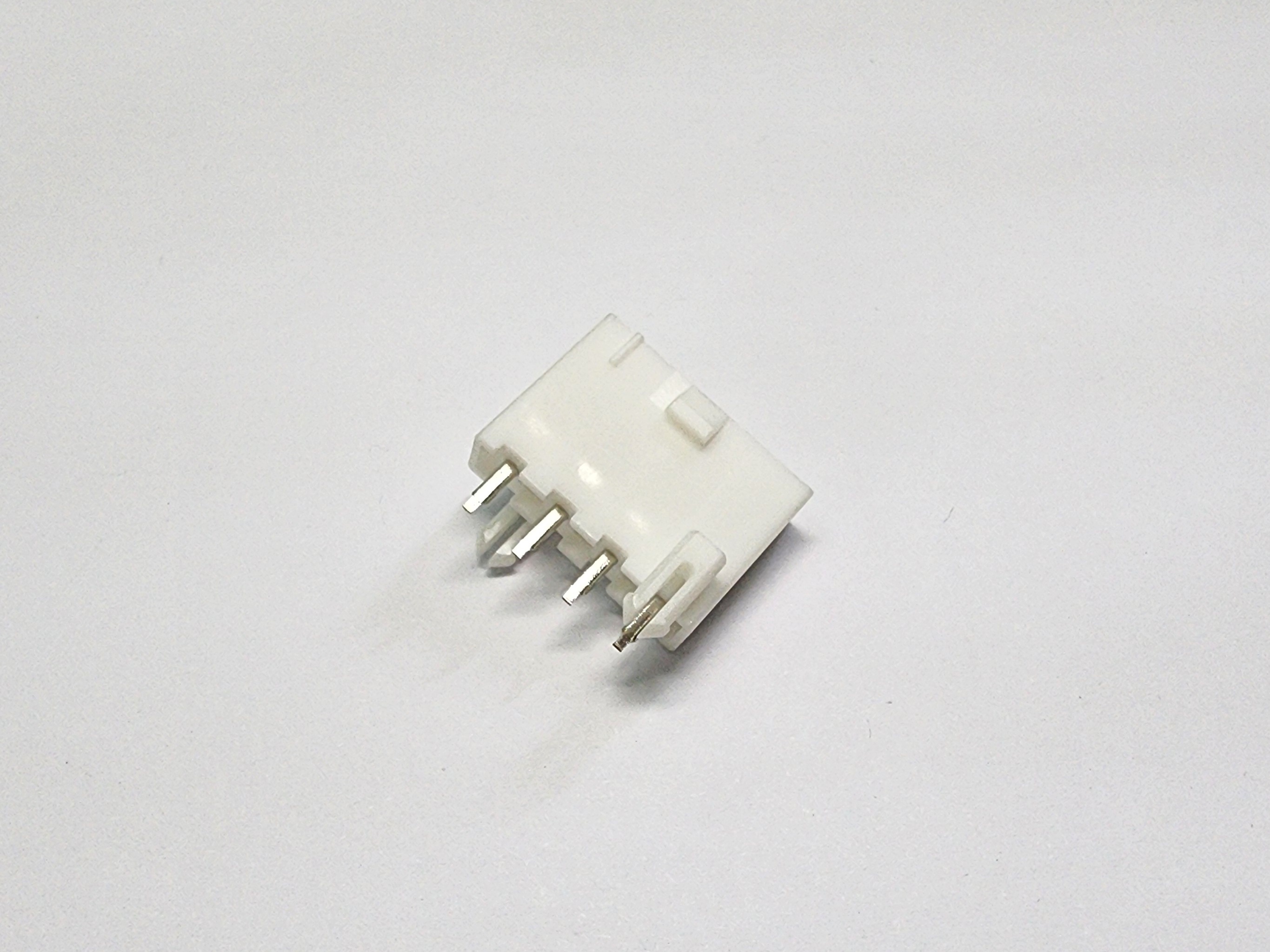

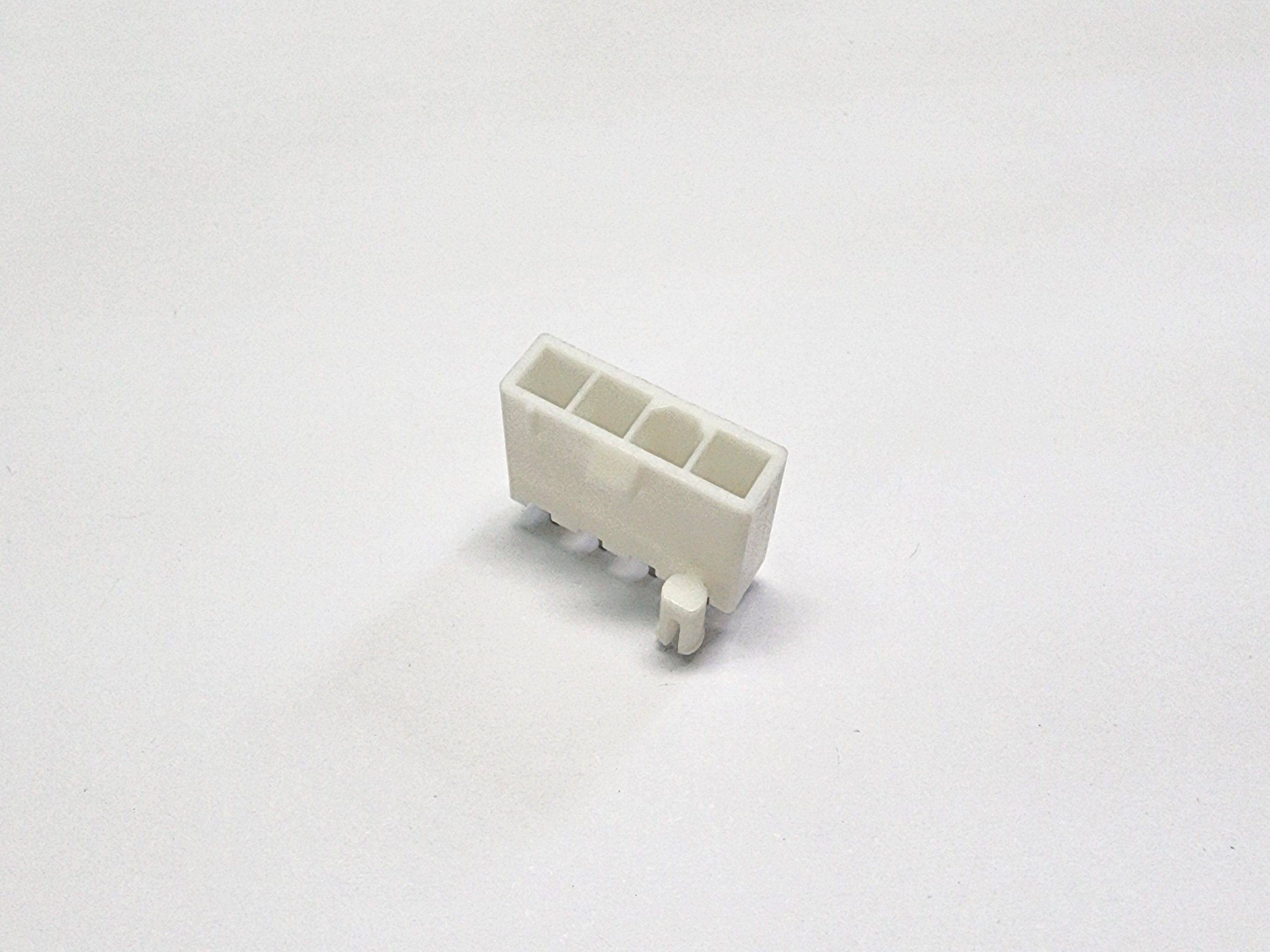

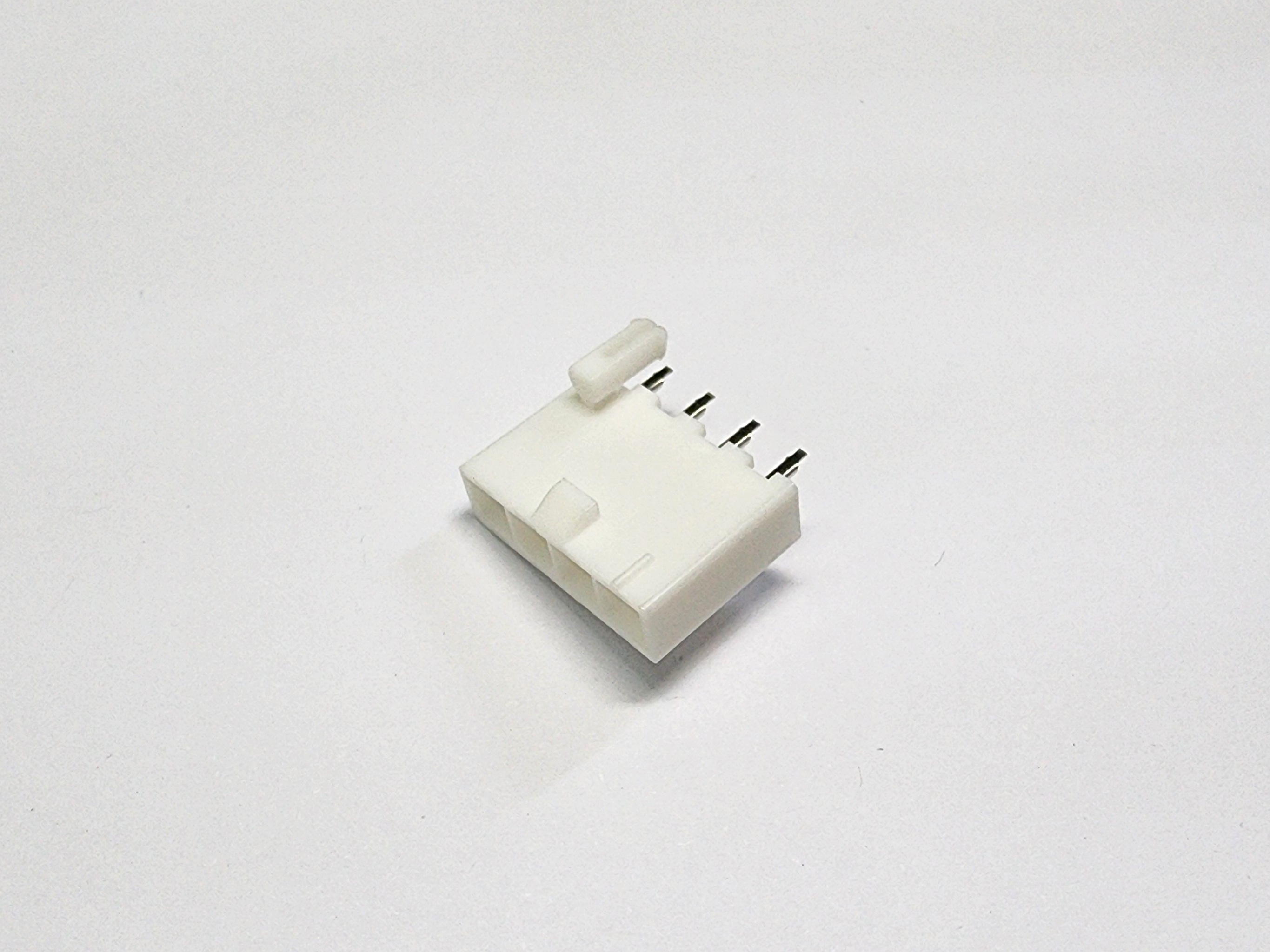

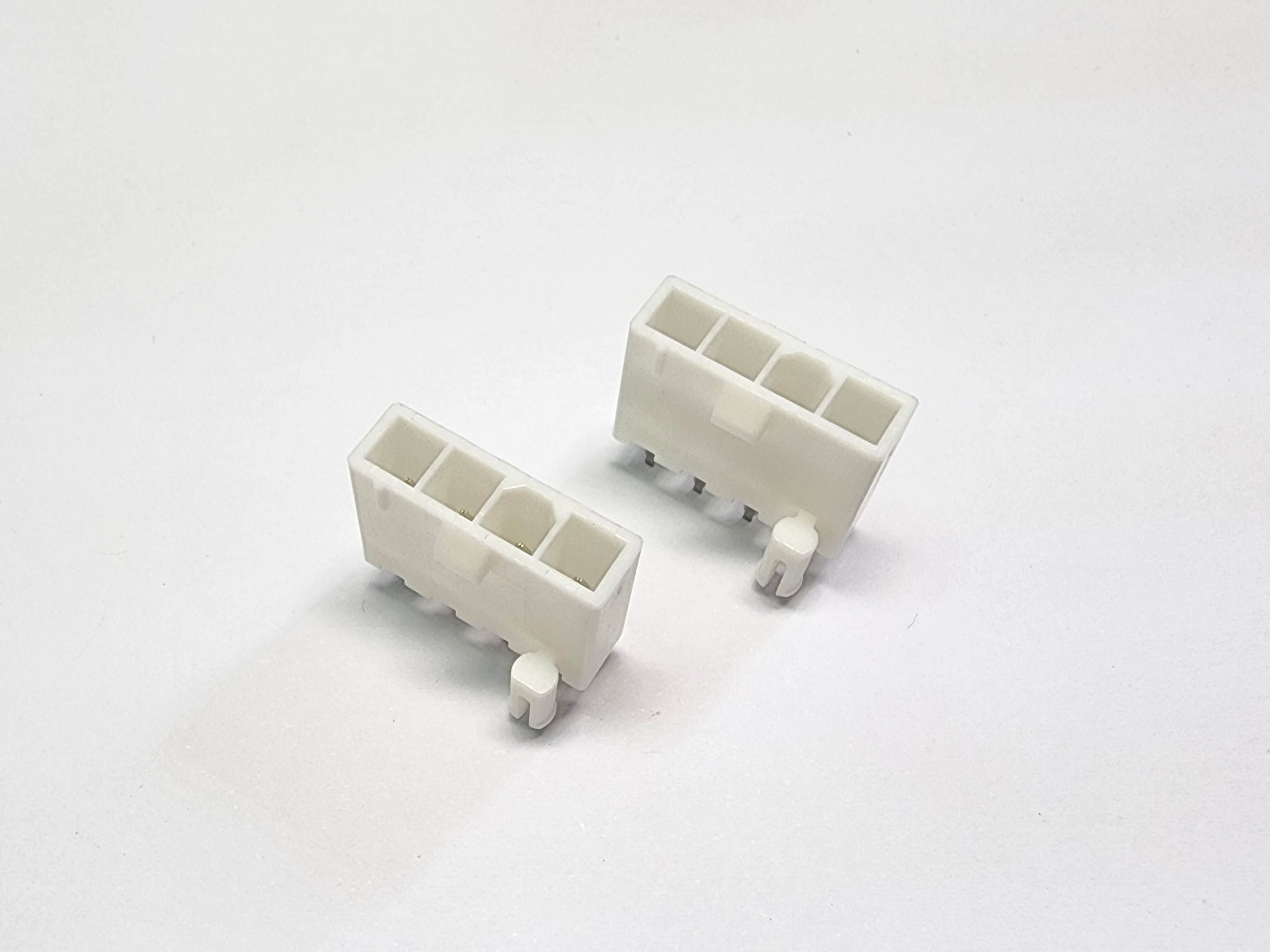

CATX-MXXVDT1-6E
Description
- ATX Power Connector
- 1xXXPins (1x3P~1x6P)
- Single Row
- Male Type
- Vertical Type
- DIP
- Pitch 4.2mm
- Tin Plating
- With 2Posts
- Latch=3.4mm
- Nylon 66
- White Color (Milky)
ATX Power Single Row, 1xXXPins, Vertical, DIP, Pitch 4.2mm, With 2Posts, Latch=3.4mm, Tin Plating, NY66 UL 94V-0 Rated, White Color(Milky)
Material
- Housing: NY66, UL 94V-0 Rated.
- Color: White(Milky).
- Contact: Brass.
- Plating: Tin Plating Over All.
Electrical Specification
- Voltage Rating: 600V AC/DC.
- Current Rating: 7Ampere AC/DC.
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 1500V AC per Minute.
Environmental
- Operating Temperature: -20°C to +85°C.
- RoHS Compliance.
- REACH Compliance.
