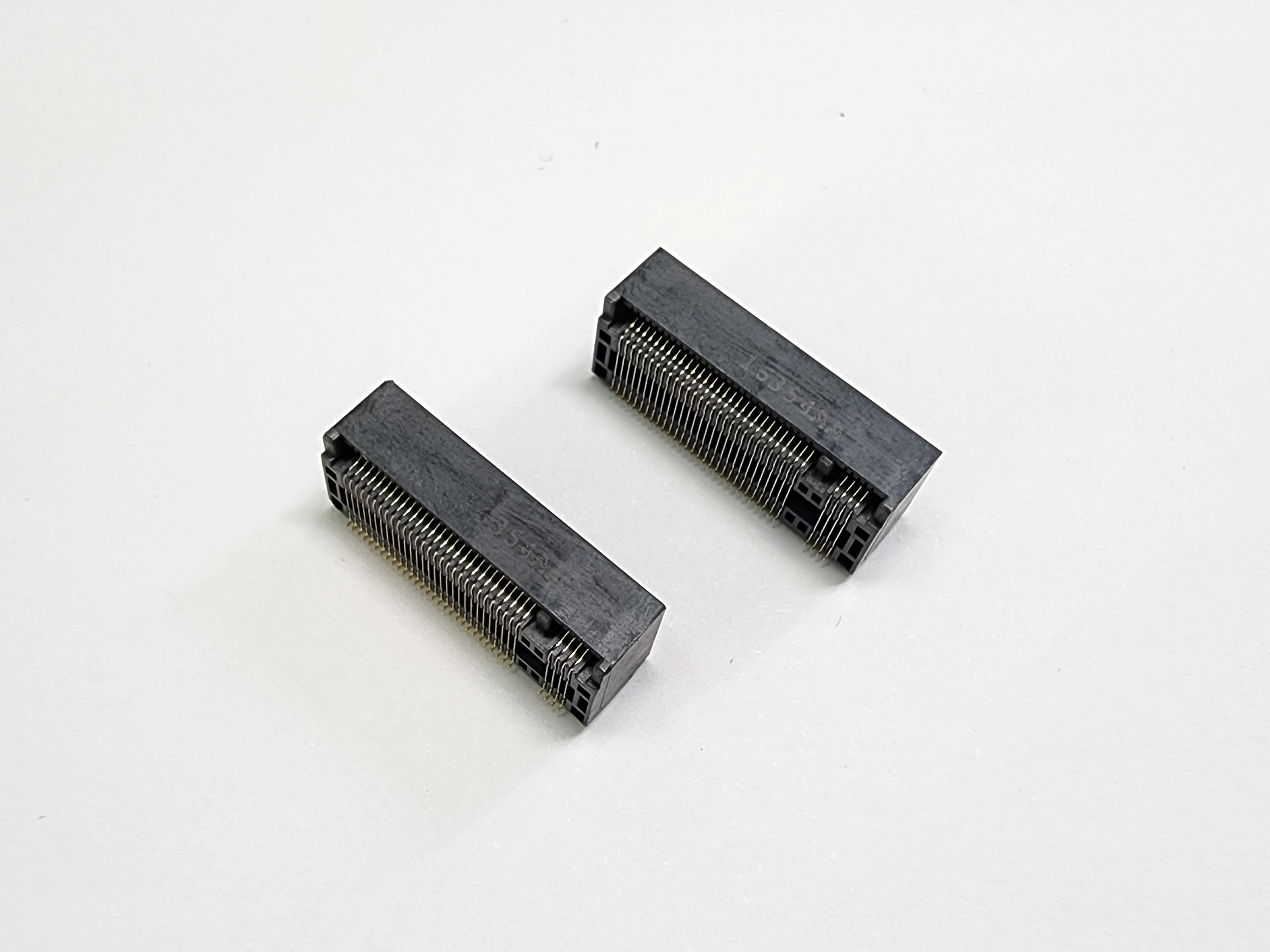

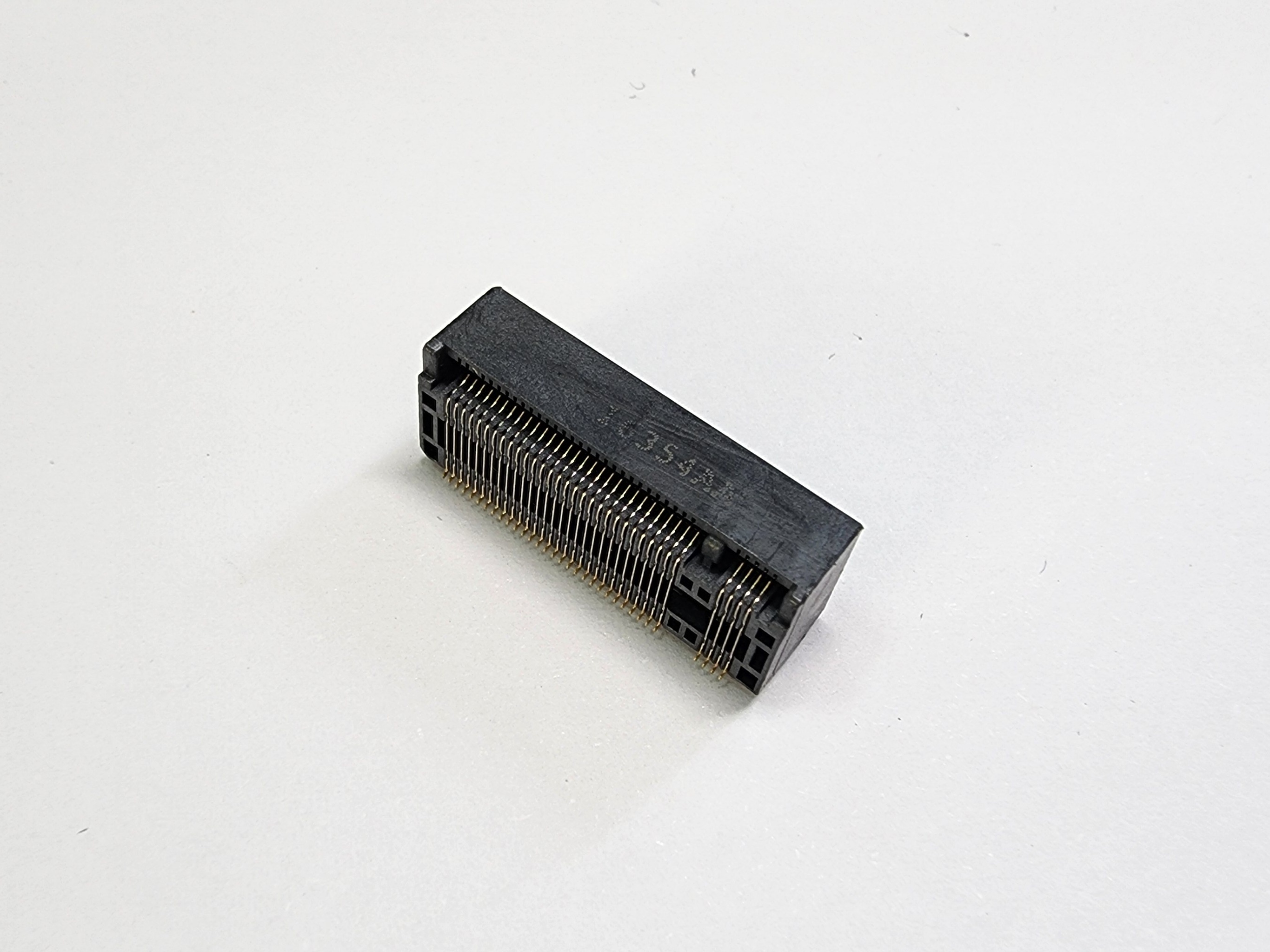

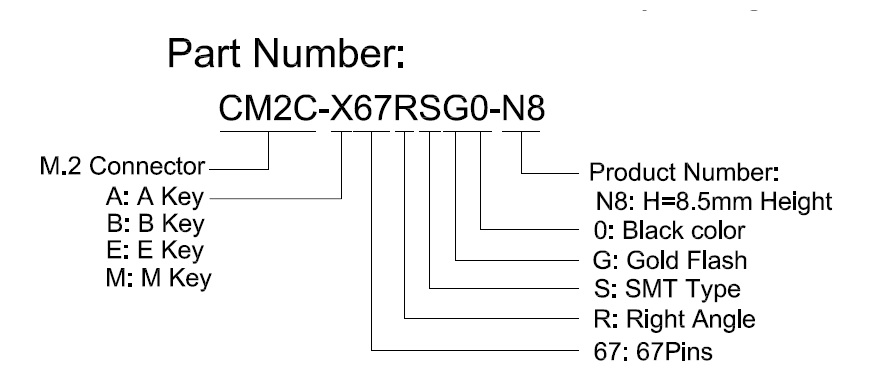

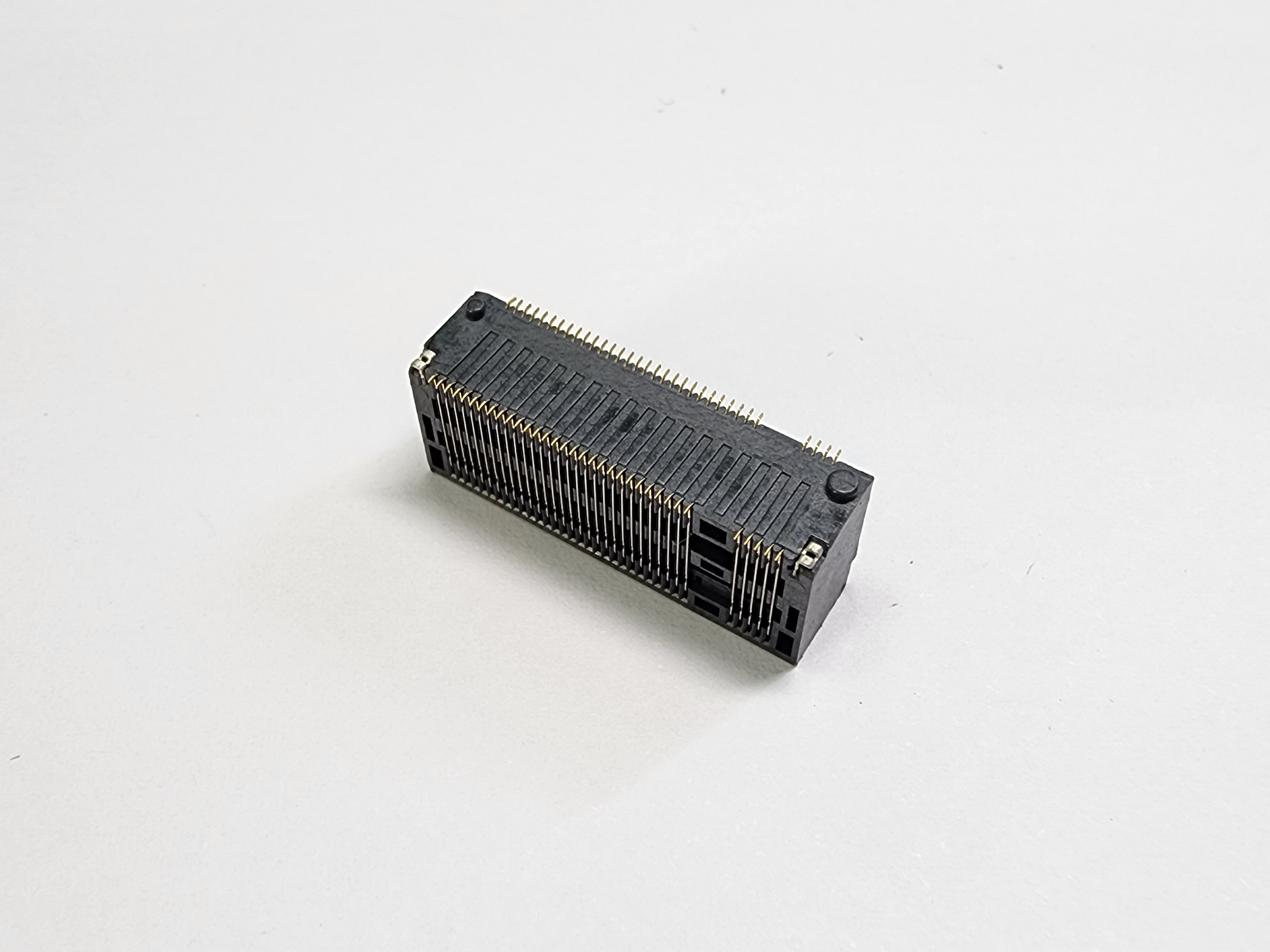

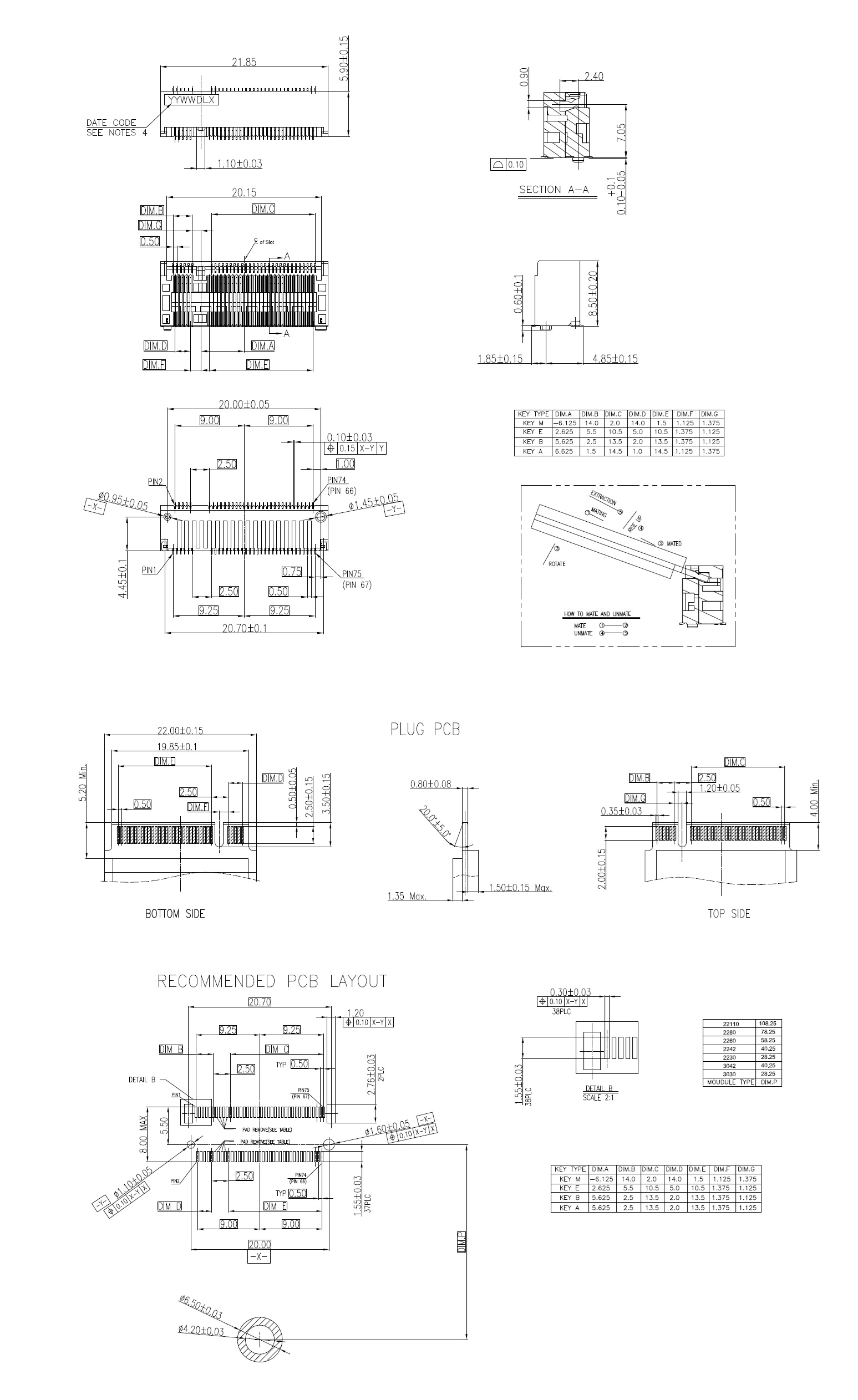

CM2C-M67RSG0-N8
Description
- M.2 Card Edge Connector
- M Key
- 67Pins
- Right Angle
- SMT
- Gold Flash
- H=8.50mm
- High Temperature Plastics
- Black Color
M.2 Card Edge Connector, M Key, 67Pins, Right Angle, SMT, Gold Flash, H=8.5mm, High Temperature Plastics, Black Color
Material
- Housing: High Temperature Thermo Plastic, UL 94V-0 Rated.
- Color: Black.
- Contact: Copper Alloy.
- Plating: Gold Plating over Nickel on Contact Area;
- Tin Plating on Solder Tail.
- Solder Peg: Stainless Steel.
- Plating: Tin Plating.
- Connector Actual Pin Quantity is 67P, as the Key Taking Out 8Pins
Mechanical
- Insertion Force: 20N Max.
- Extraction Force: 25N Min.
- Durability Test: 60 Cycles Min.
Electrical Specification
- Current Rating: 0.5 Ampere per Contact.
- Contact Resistance: 55mΩ Max. (Initial).
- 20mΩ Max. (Change from Initial).
- Insulation Resistance: 500MΩ Min Measure at 500V DC.
- Dielectric Withstanding Voltage: 300V AC for One Minute.
Environmental
- Operating Temperature: -25°C to +85°C.
- For Reflow Soldering Lead-Free Process.
- Soldering Heat Resistance Reflow Soldering 260°C.
- RoHS Compliance.
- REACH Compliance.
