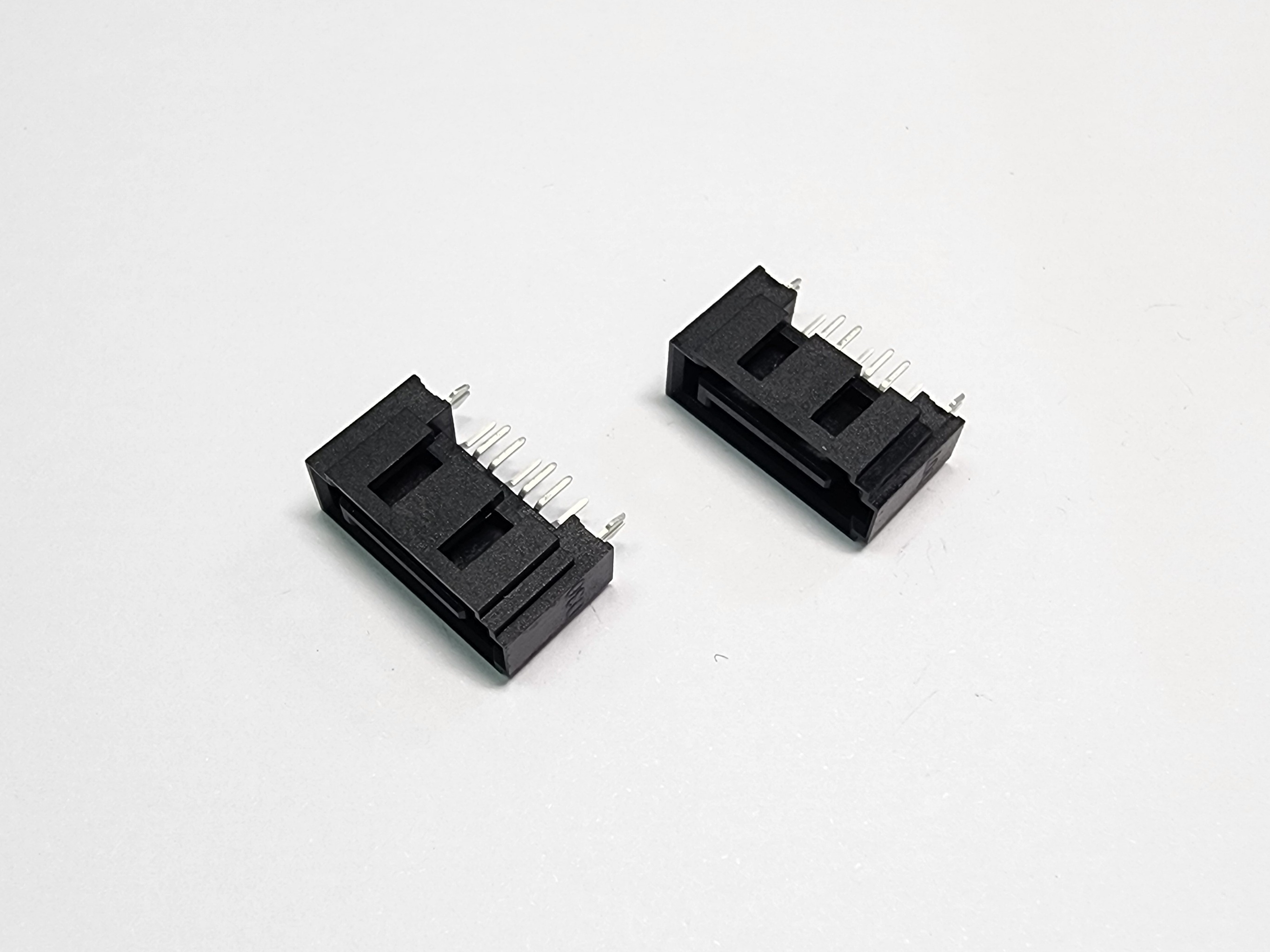

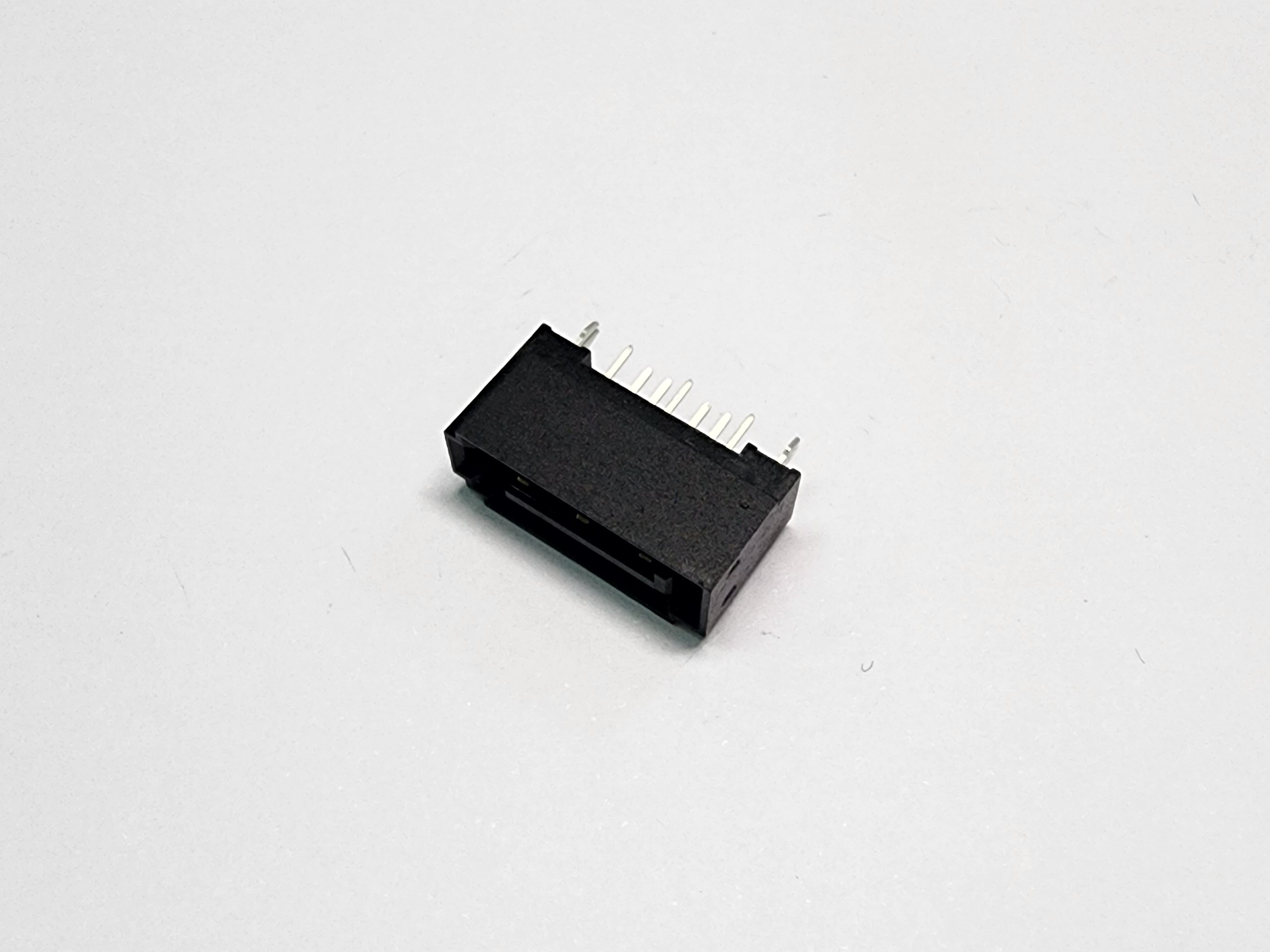

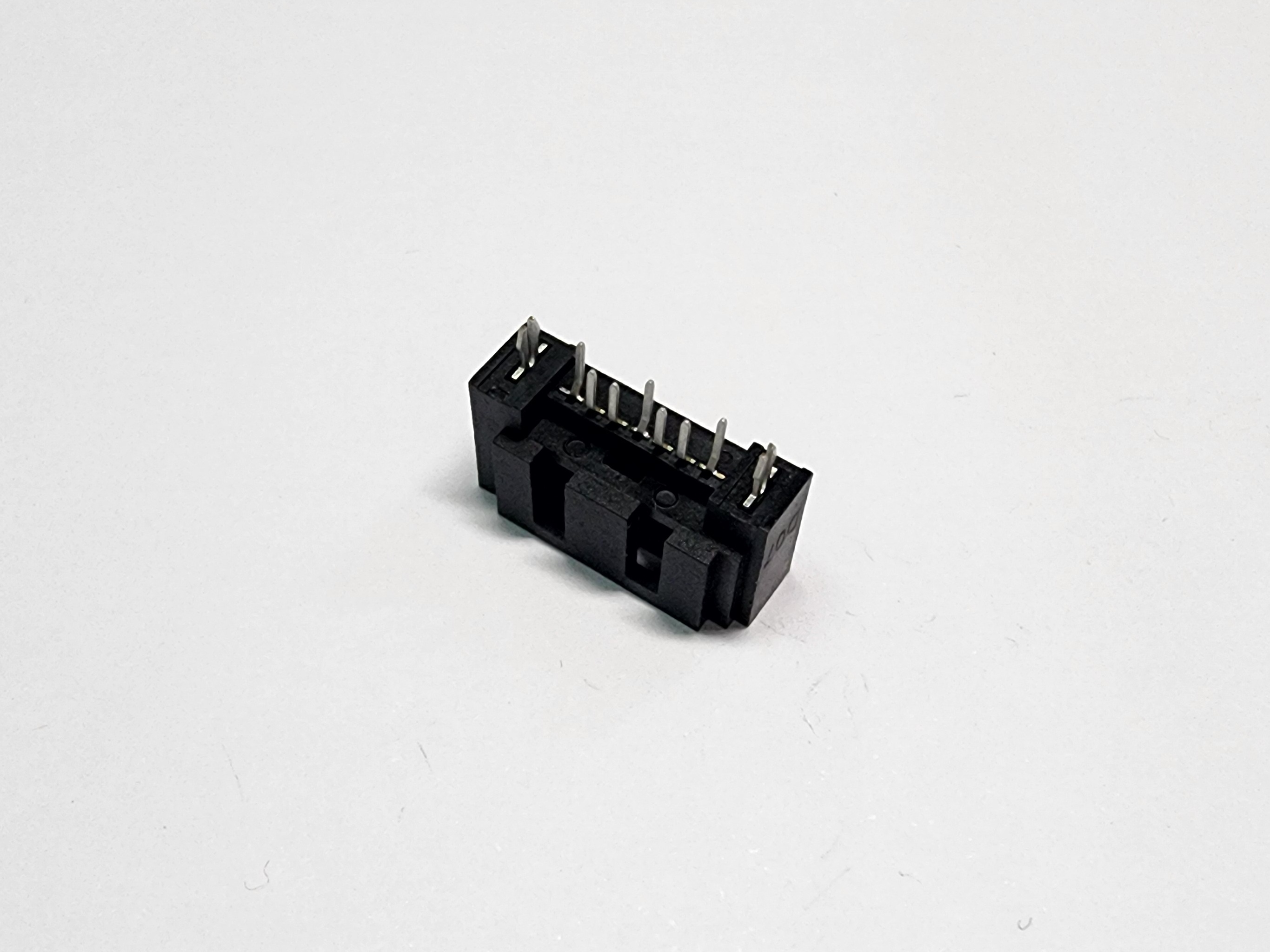

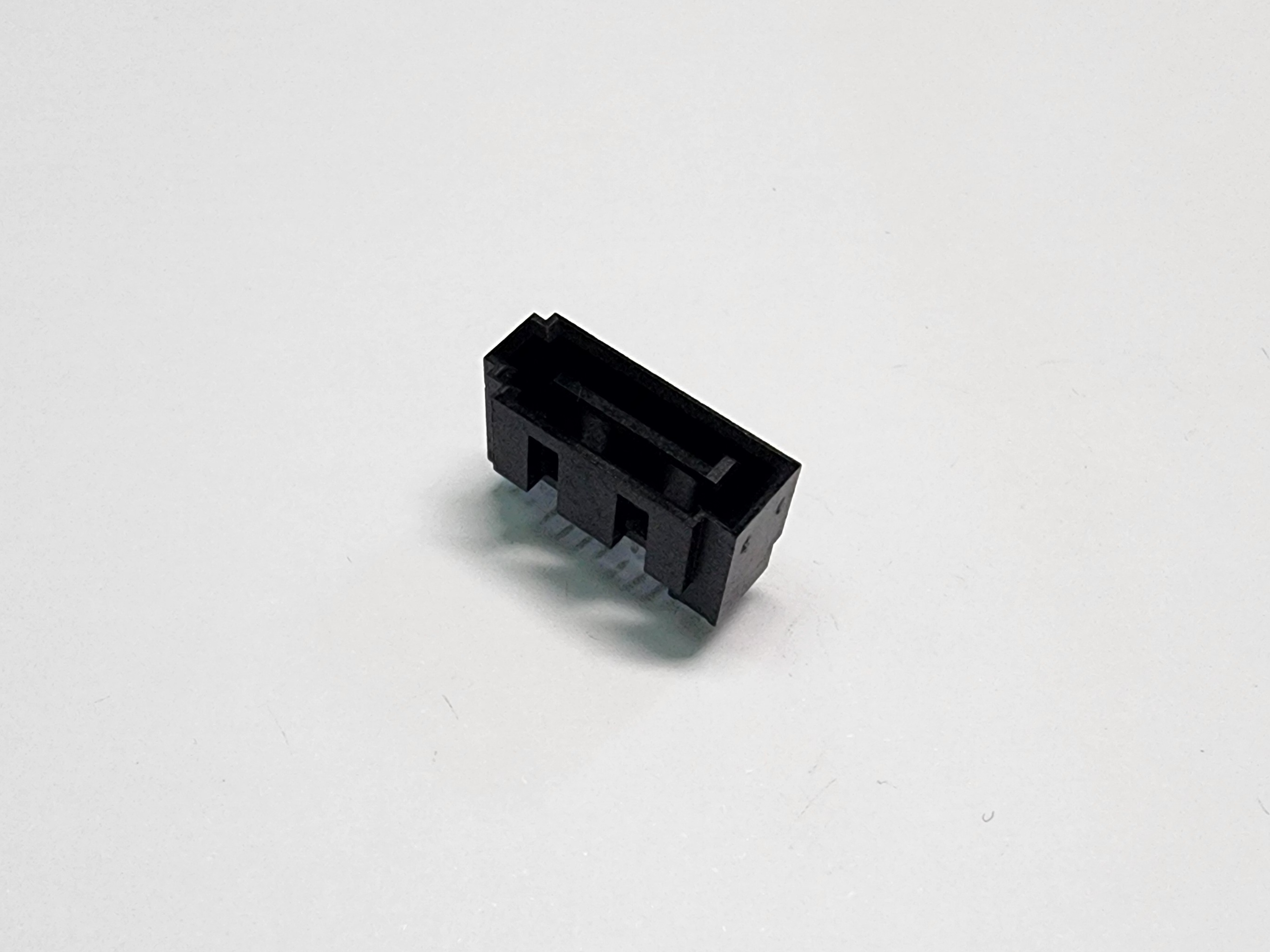

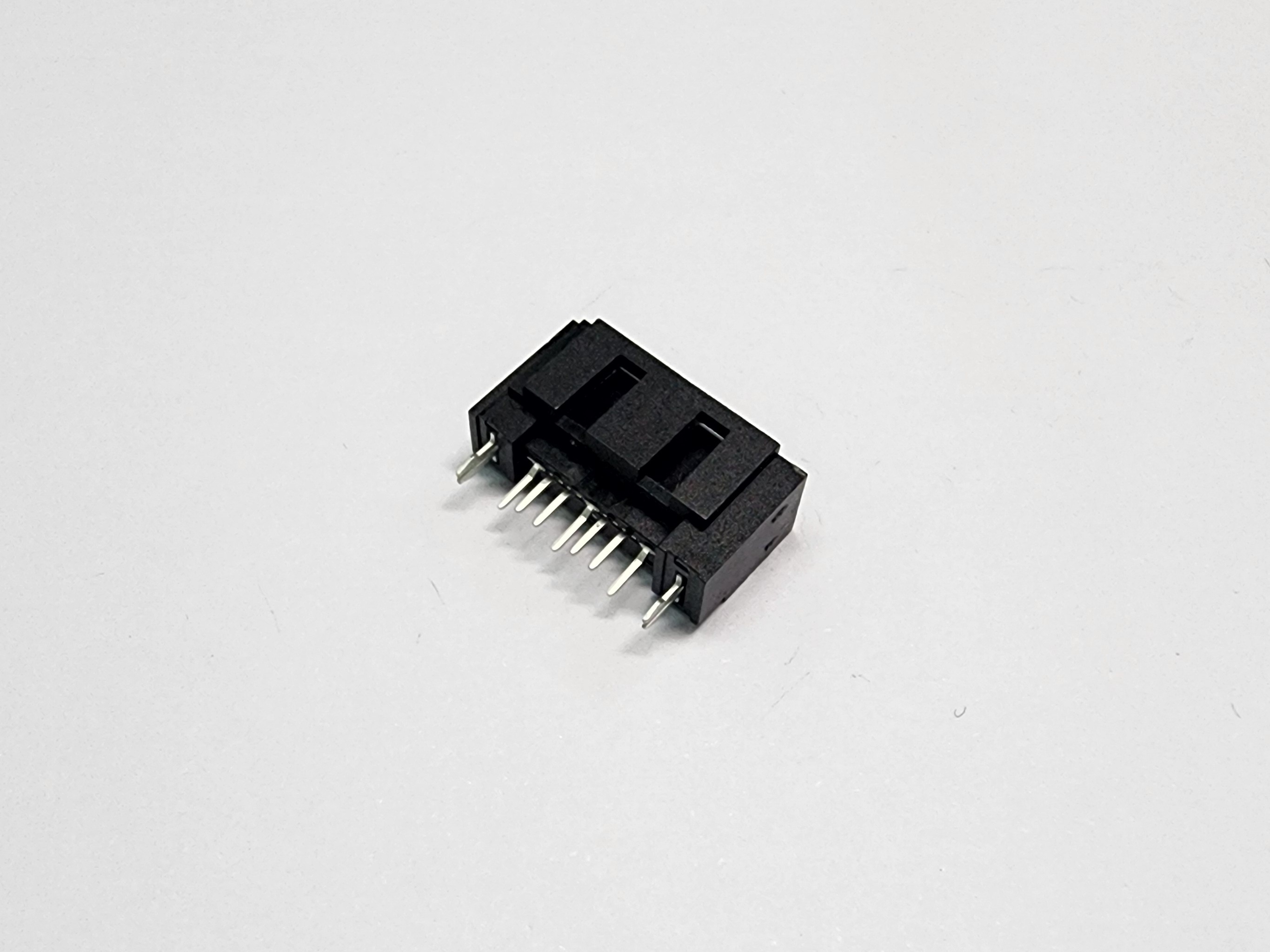

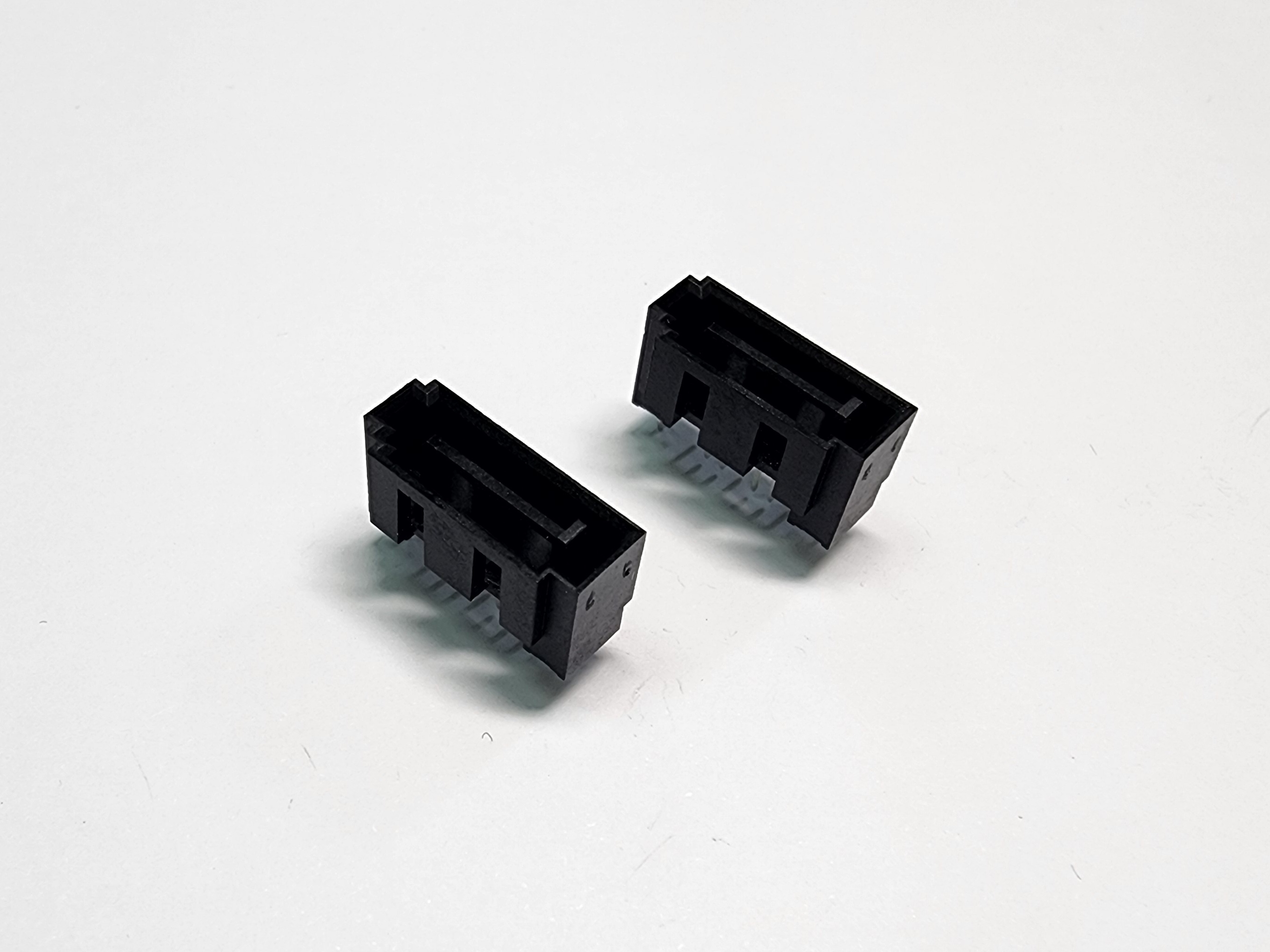

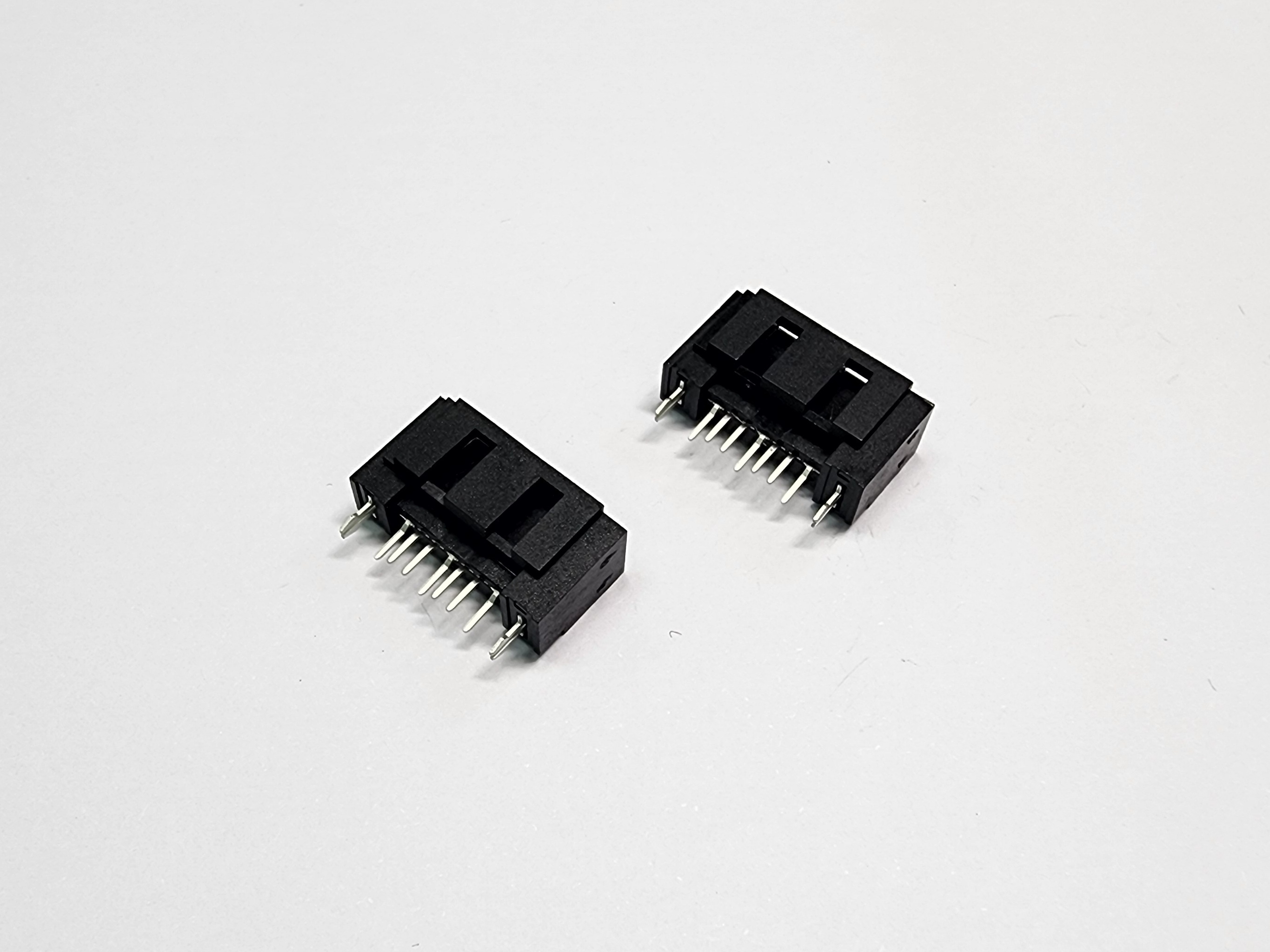

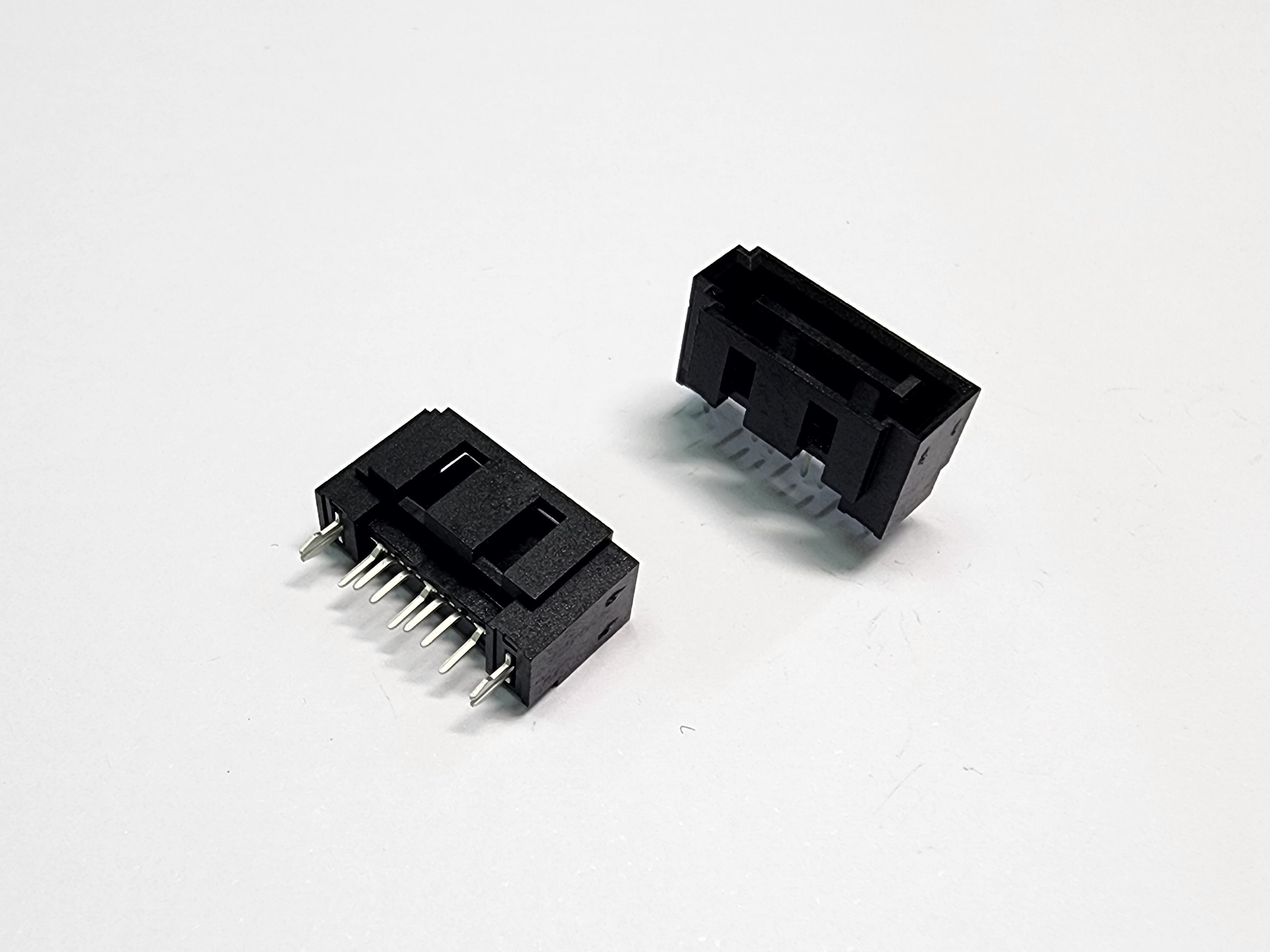

CSAT-M07VD30-A2
Description
- Serial ATA Connector
- S-ATA Connector
- 7Pins
- Male
- Vertical Type
- DIP Type A
- D=2.15mm~2.30mm
- 15u” Gold Plating
- With Shrounded
- Nylon 46
- Black Color
SATA (Serial ATA) 7P, Male, Vertical Type, DIP Type A, D=2.15mm~2.30mm, 15u" Gold Plating, with Shrounded, Nylon 46, Black Color
Material
- Housing: Nylon46, UL 94V-0 Rated.
- Color: Black.
- Contact: Brass.
- Plating: Gold Plating over Nickel on Contact Area;
- Tin Plating on Solder Tail.
- Harpoon: Brass.
- Plating: Tin Plating over Nickel.
Mechanical
- Insertion Force: 45N Max.
- Withdrawal Force: 10N Min.
- Durability: 500 Cycles.
Electrical Specification
- Operation Voltage: 100VAC Max.
- Current Rating: 1.5 Ampere per Contact.
- Contact Resistance: 30mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 500 VAC.
Environmental
- Operating Temperature:
- RoHS Compliance.
- REACH Compliance.
