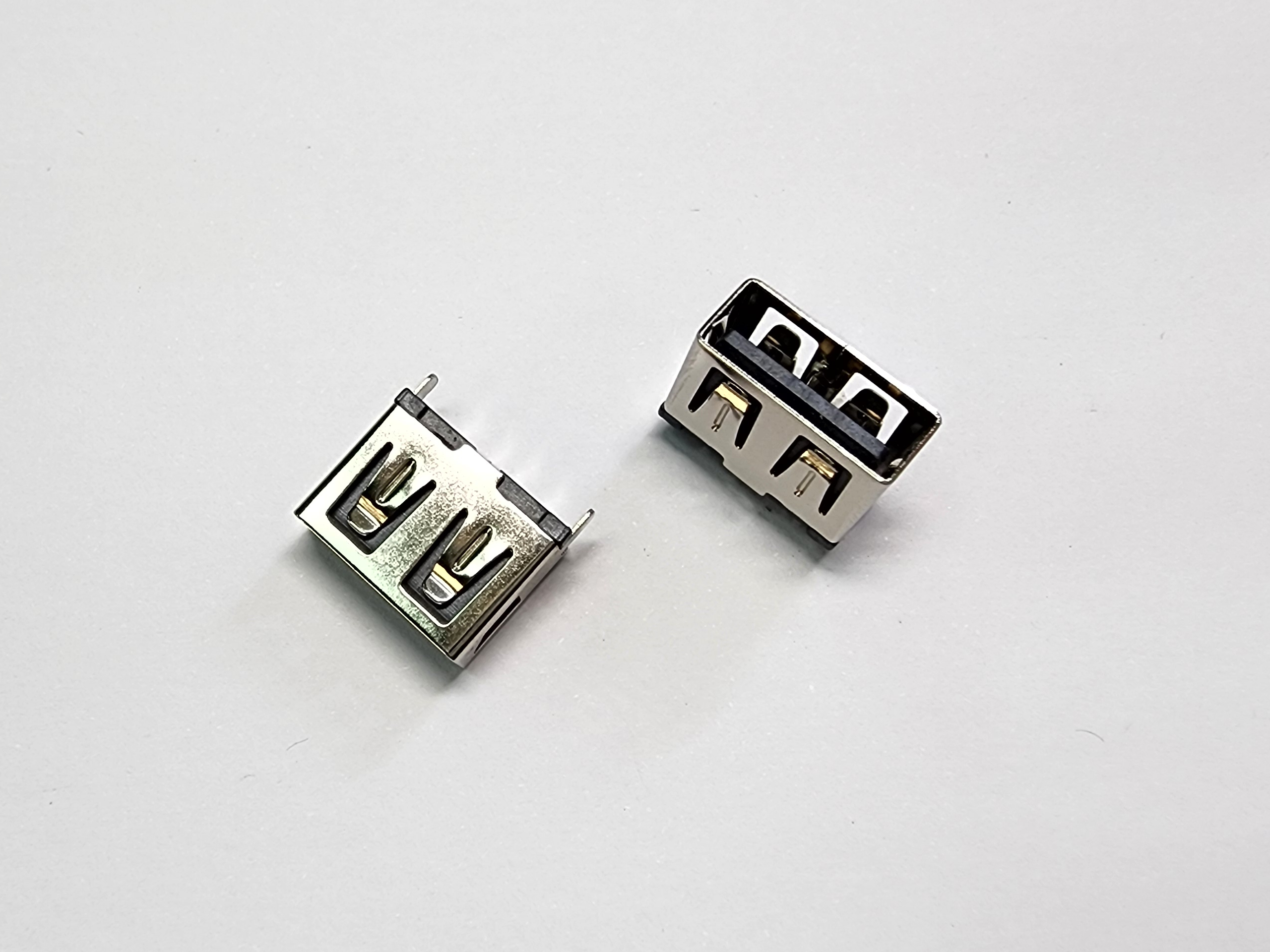

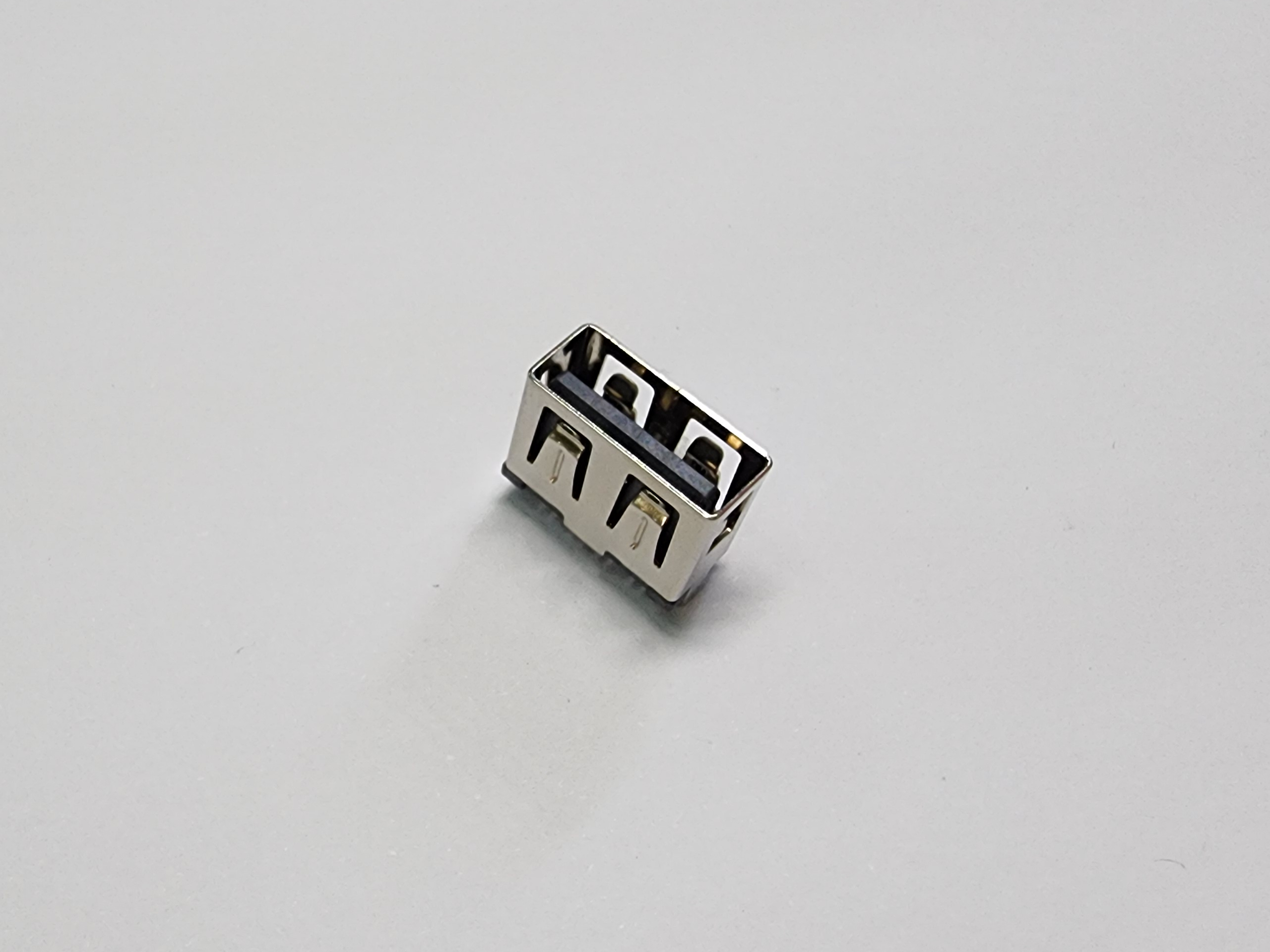

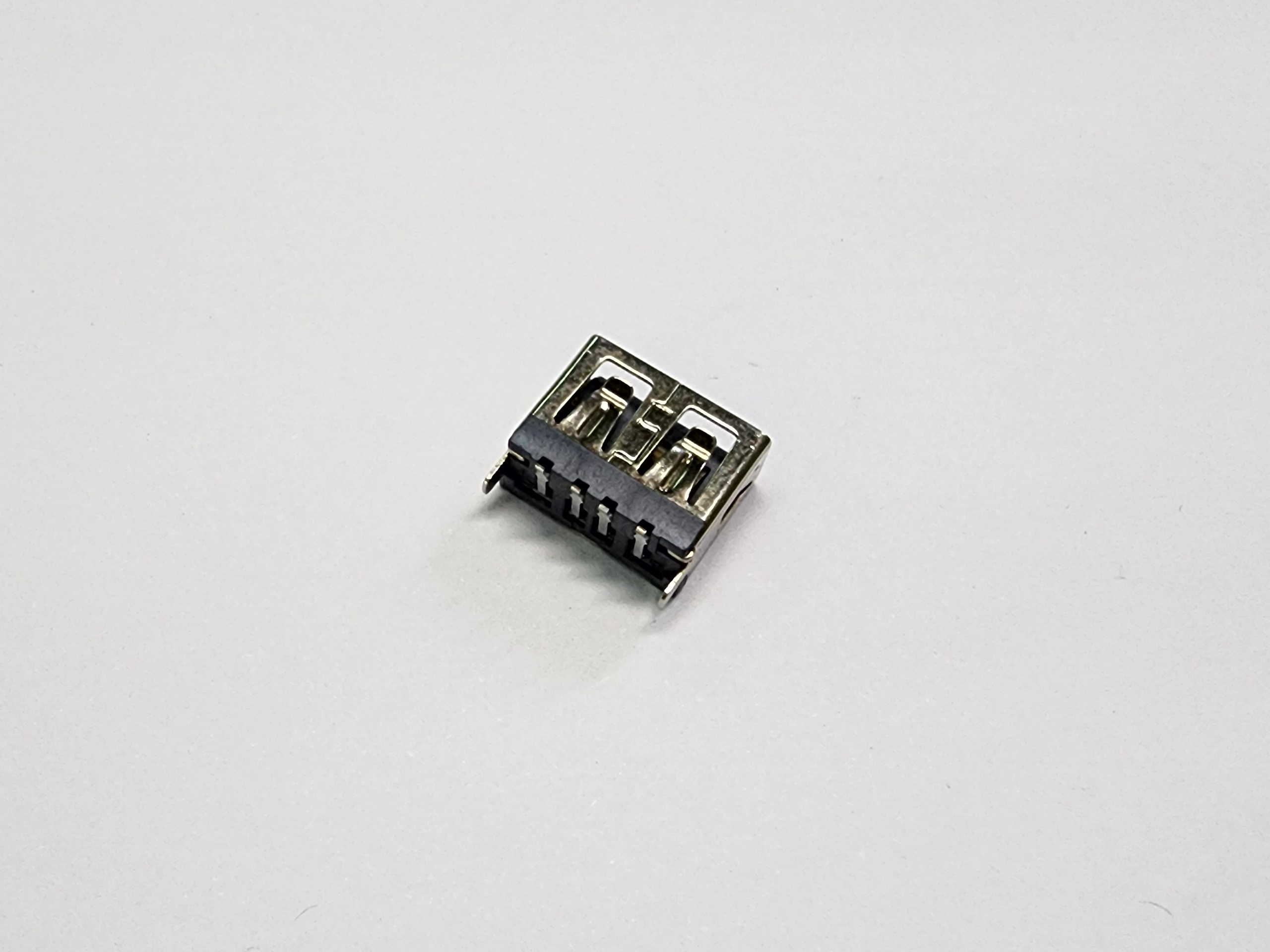

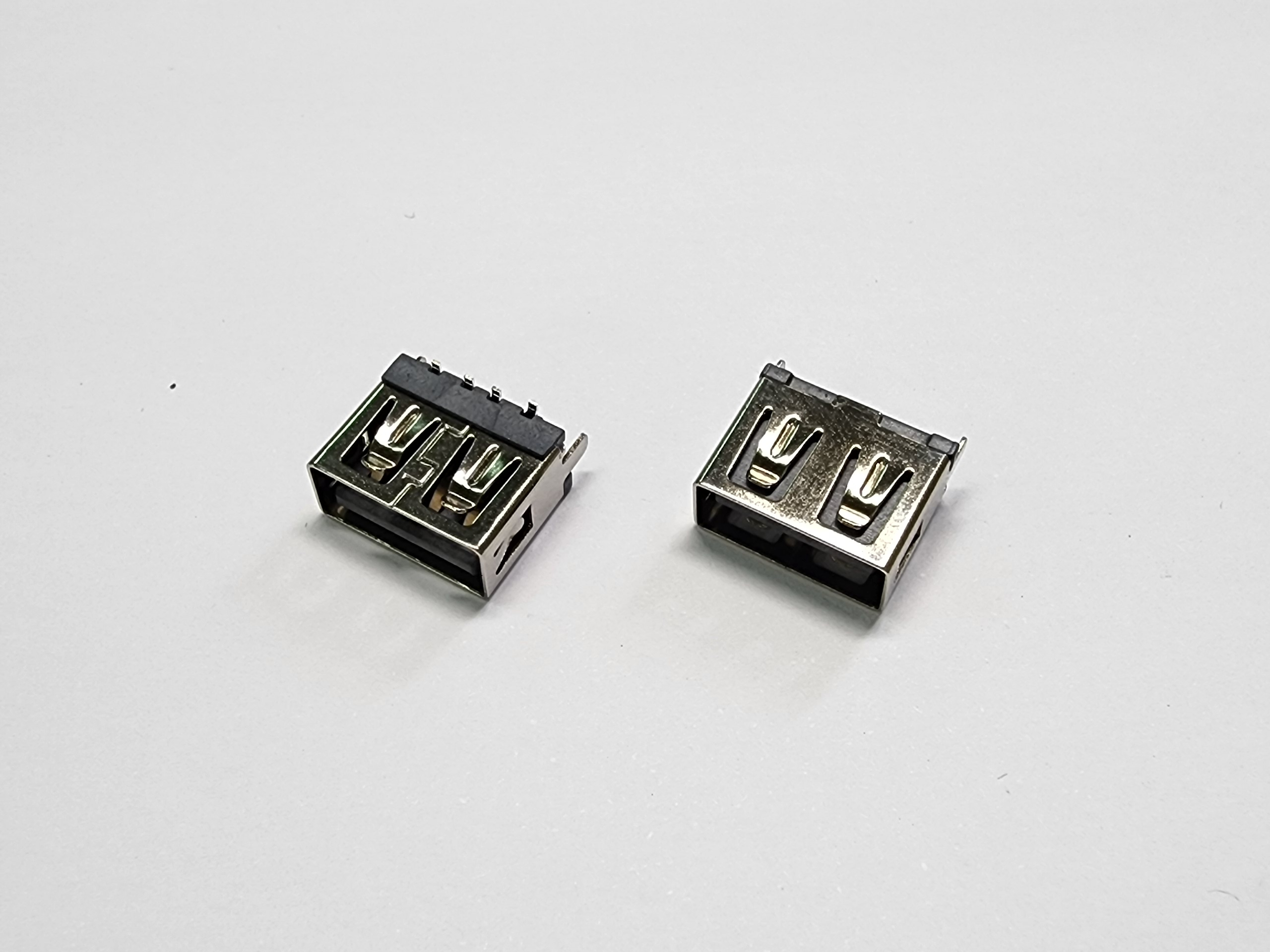

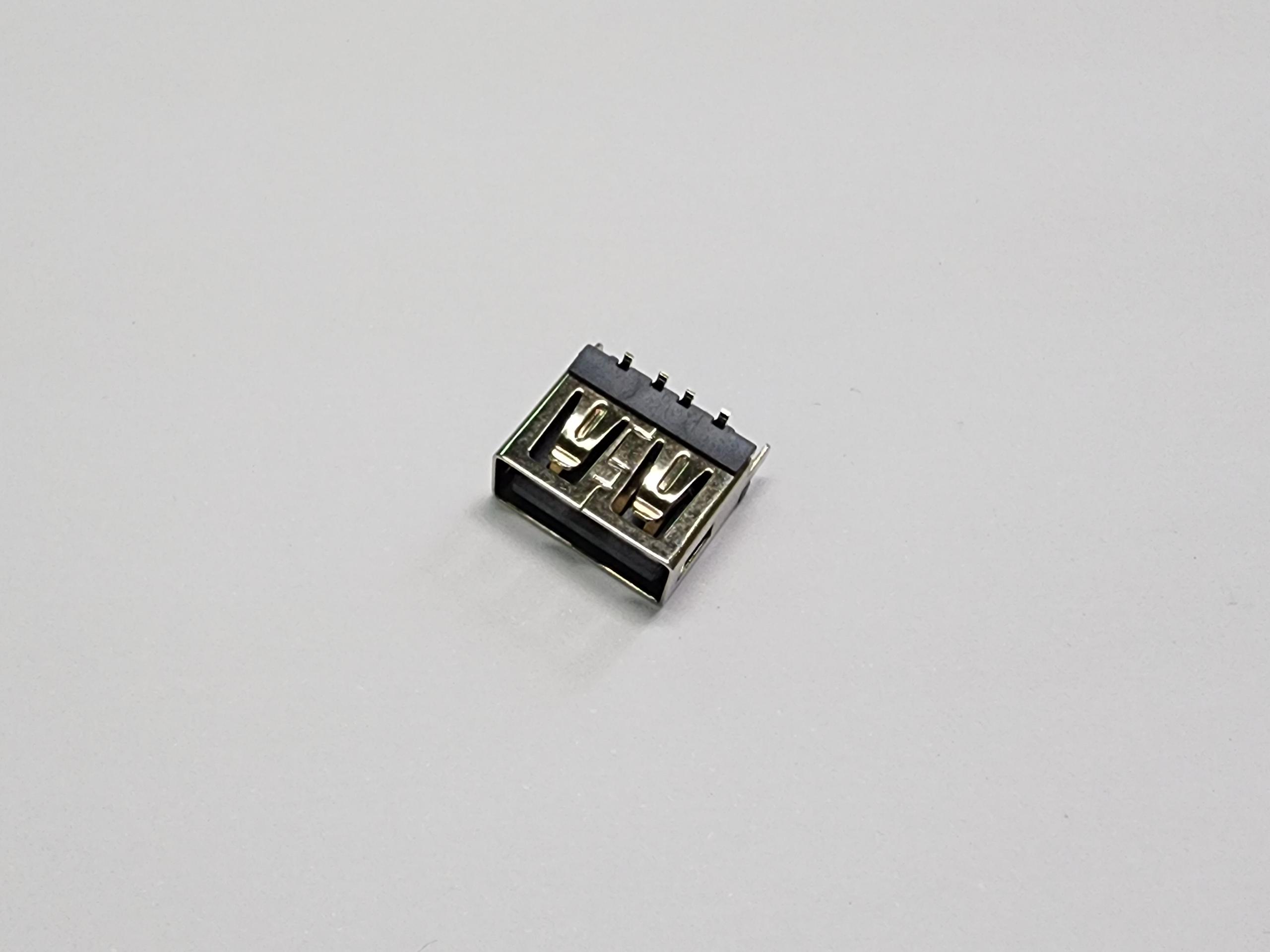

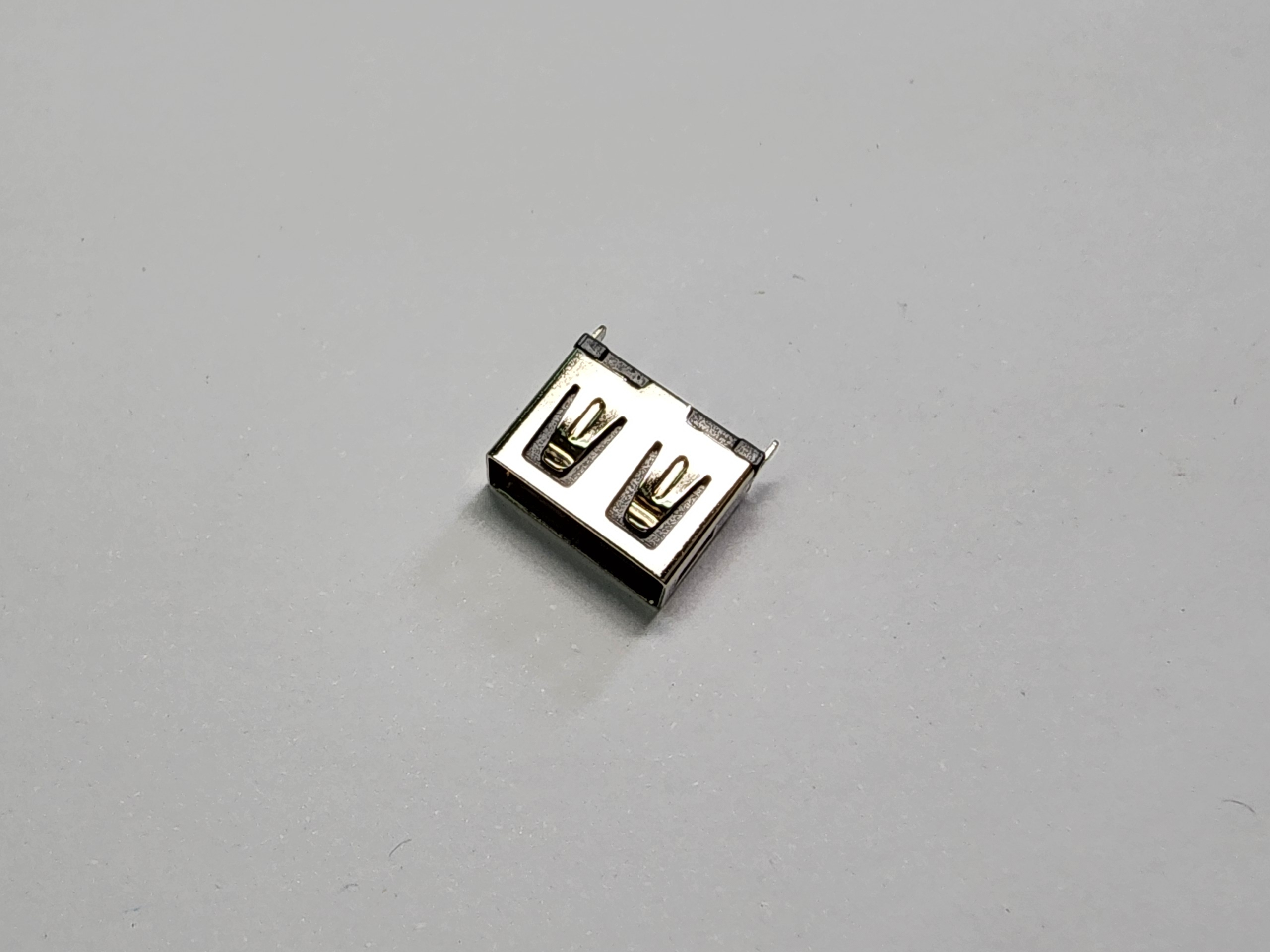

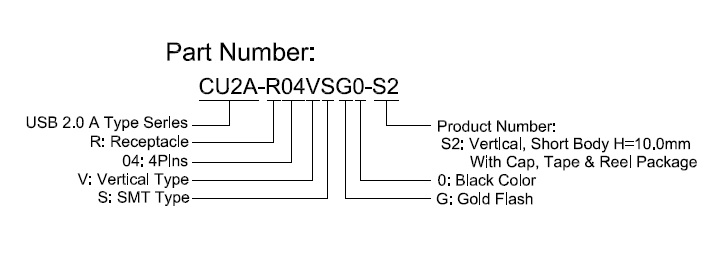

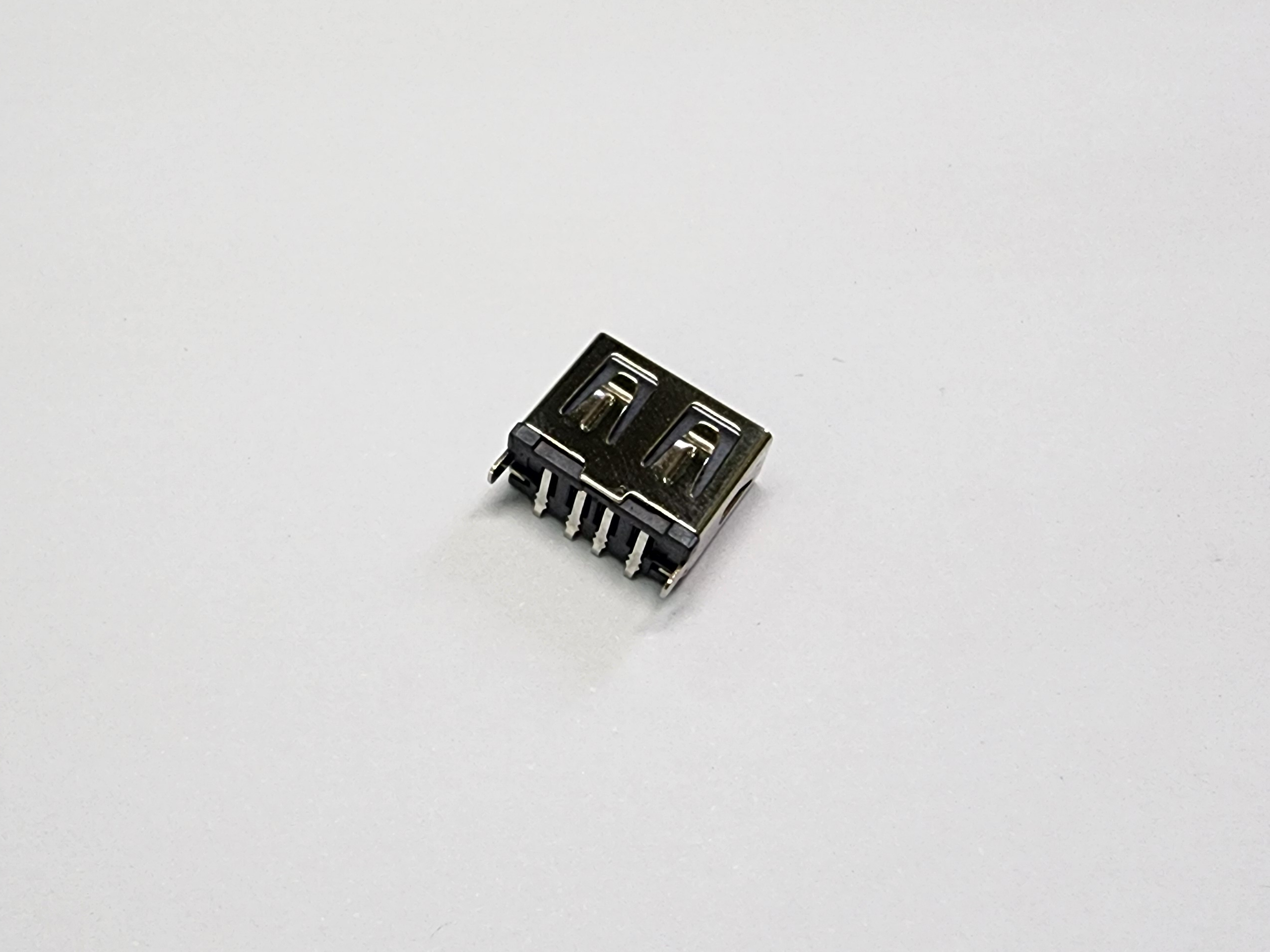

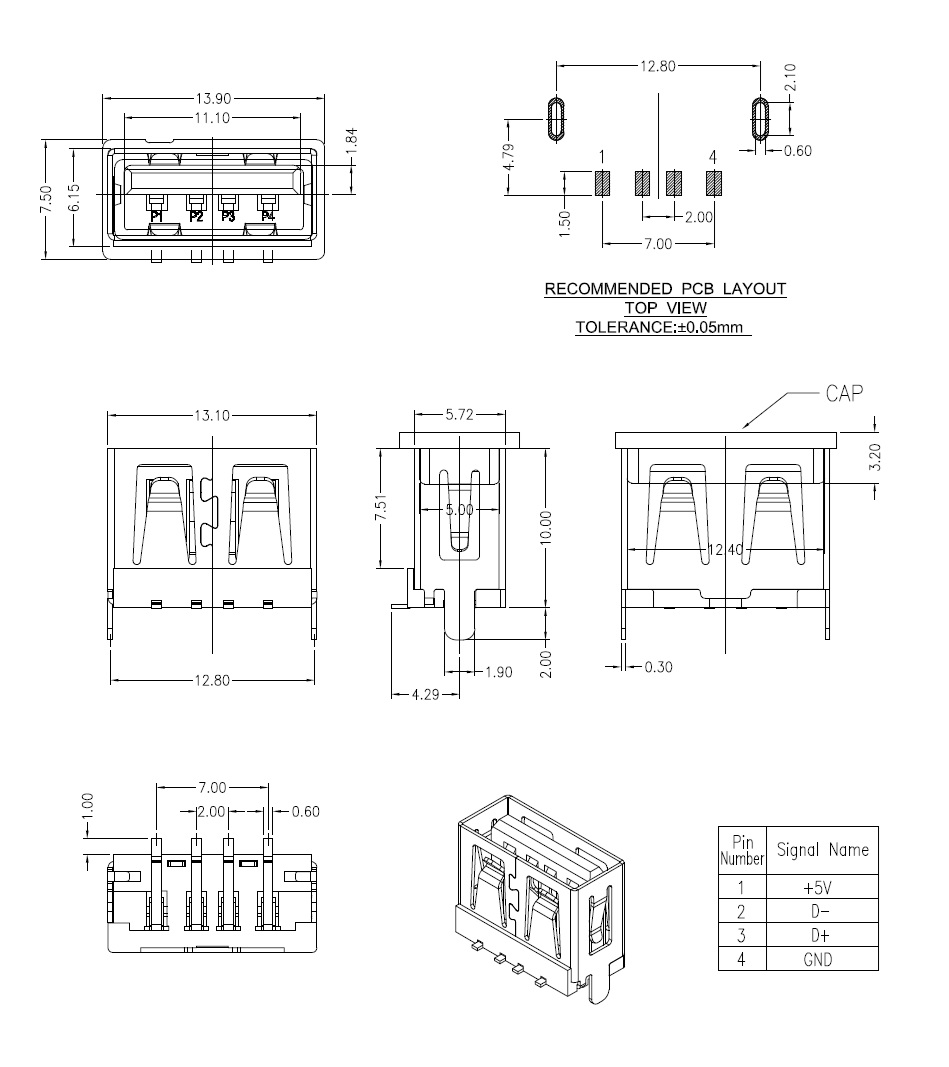

CU2A-R04VSG0-S2

USB 2.0 A Type, 4Pins, Receptacle, Vertical Type, SMT, Gold Flash, With Shell SPCC Straight, H=10.0mm, LCP, Black Color, With CAP

Specification:

{C}1.    {C}Material:

Housing: LCP, UL94 V-0 Rated.

Color: Black.

Contact: Brass, C2680.

Plating: Gold Plating over Nickel on Contact Area;

Tin Plating over Nickel on Solder Tail.

Shield: SPCC.

Plating: Nickel Plating.

{C}2.    {C}Mechanical:

Mating Force: 3.57Kgf Max.

Unmating Force: 0.8Kgf Min.

Durability: 3,000Cycles Min.

{C}3.    {C}Electrical Specification:

Current Rating: 1.5Amp per Contact Terminal.

Voltage Rating: 30V DC.

Contact Resistance: 30mΩ Max.

Insulation Resistance: 1000MΩ Min.

Dielectric Voltage: 500VAC at Sea Level.

{C}4.    {C}Environmental:

Operating Temperature:  -40°C to +105°C.

Salt Spray Test: Through 24Hrs Salt Spray Test with 5±1% Brine Concentration, No Rust.

RoHS Compliance.
