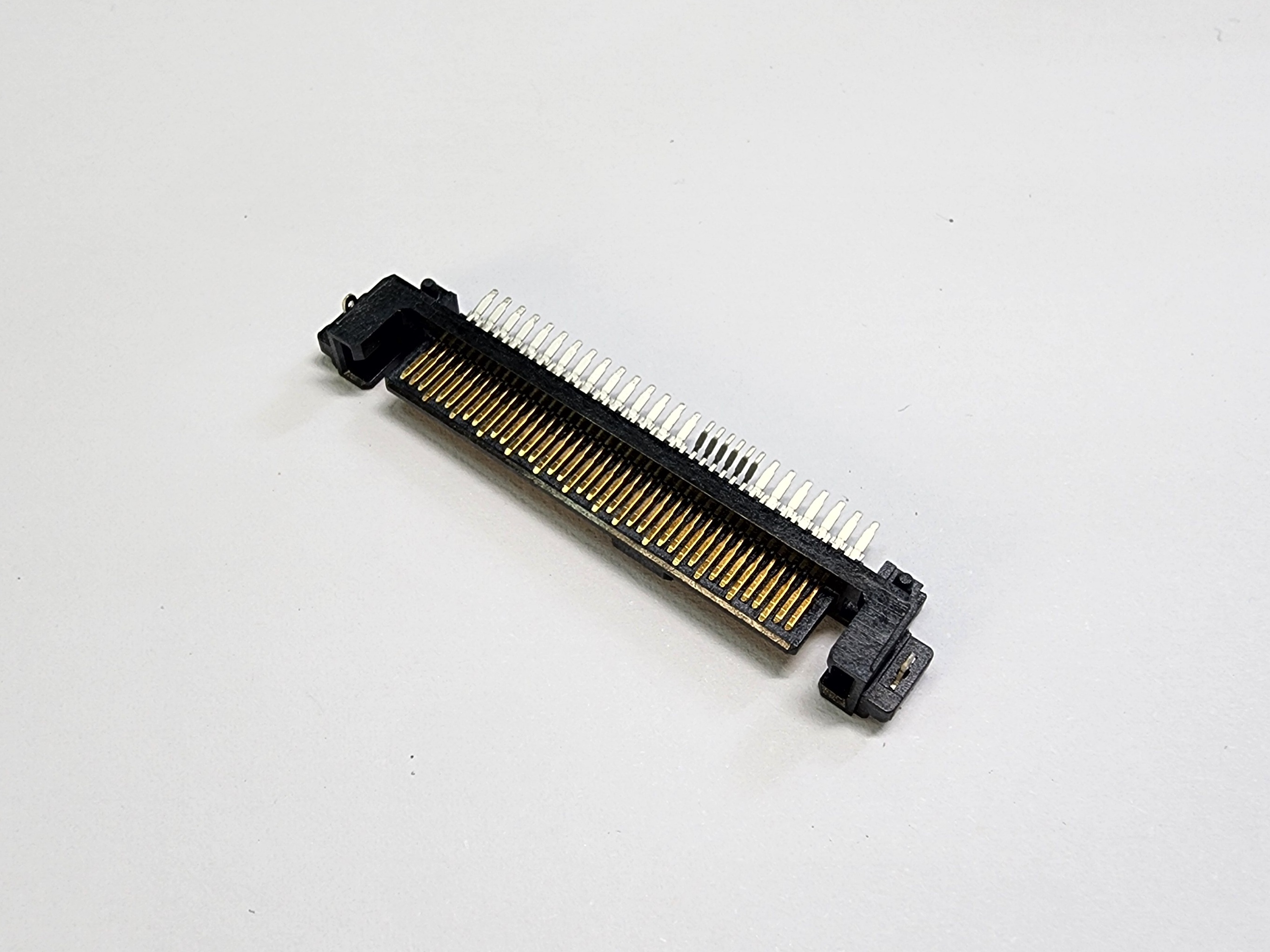

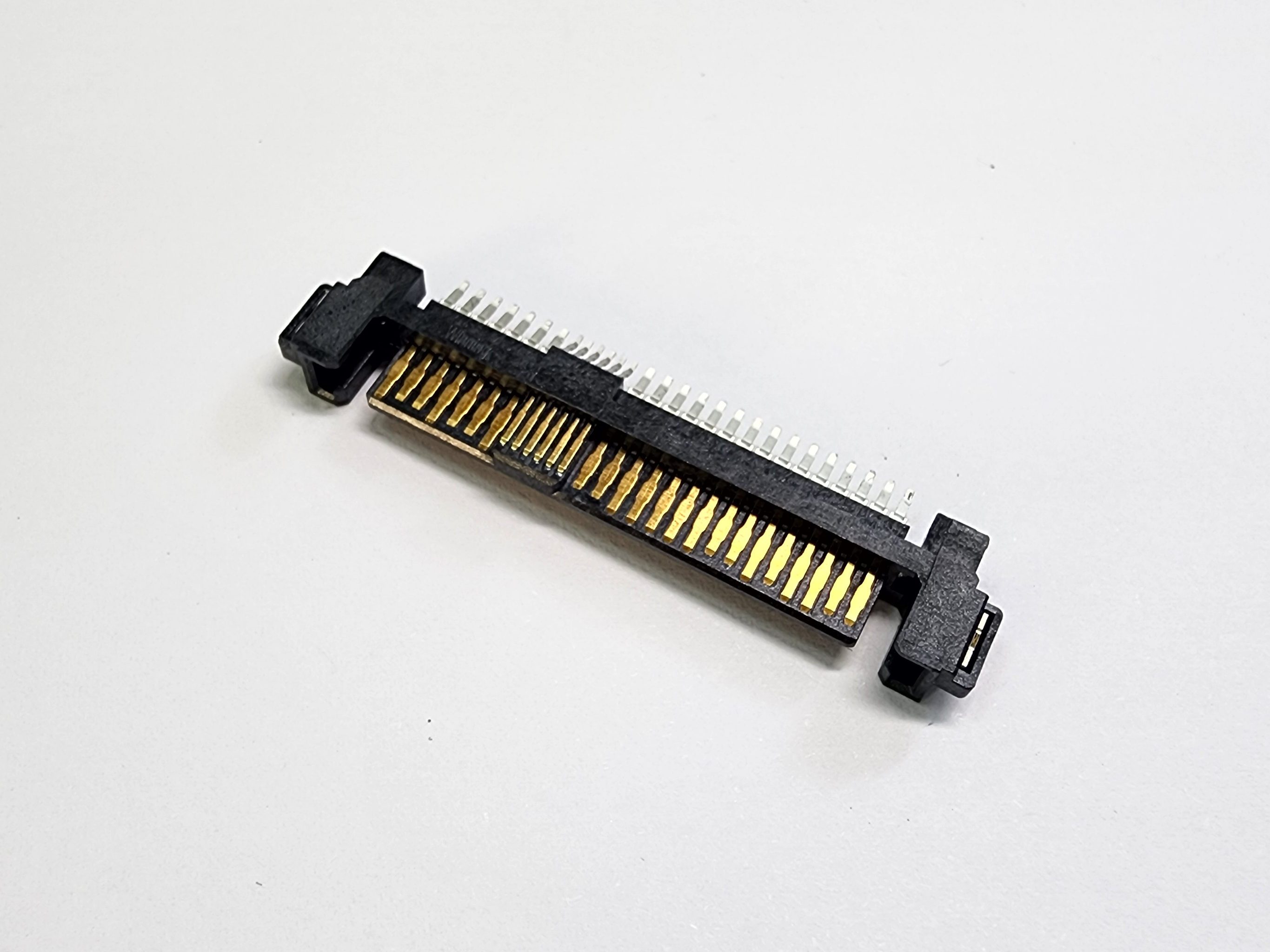

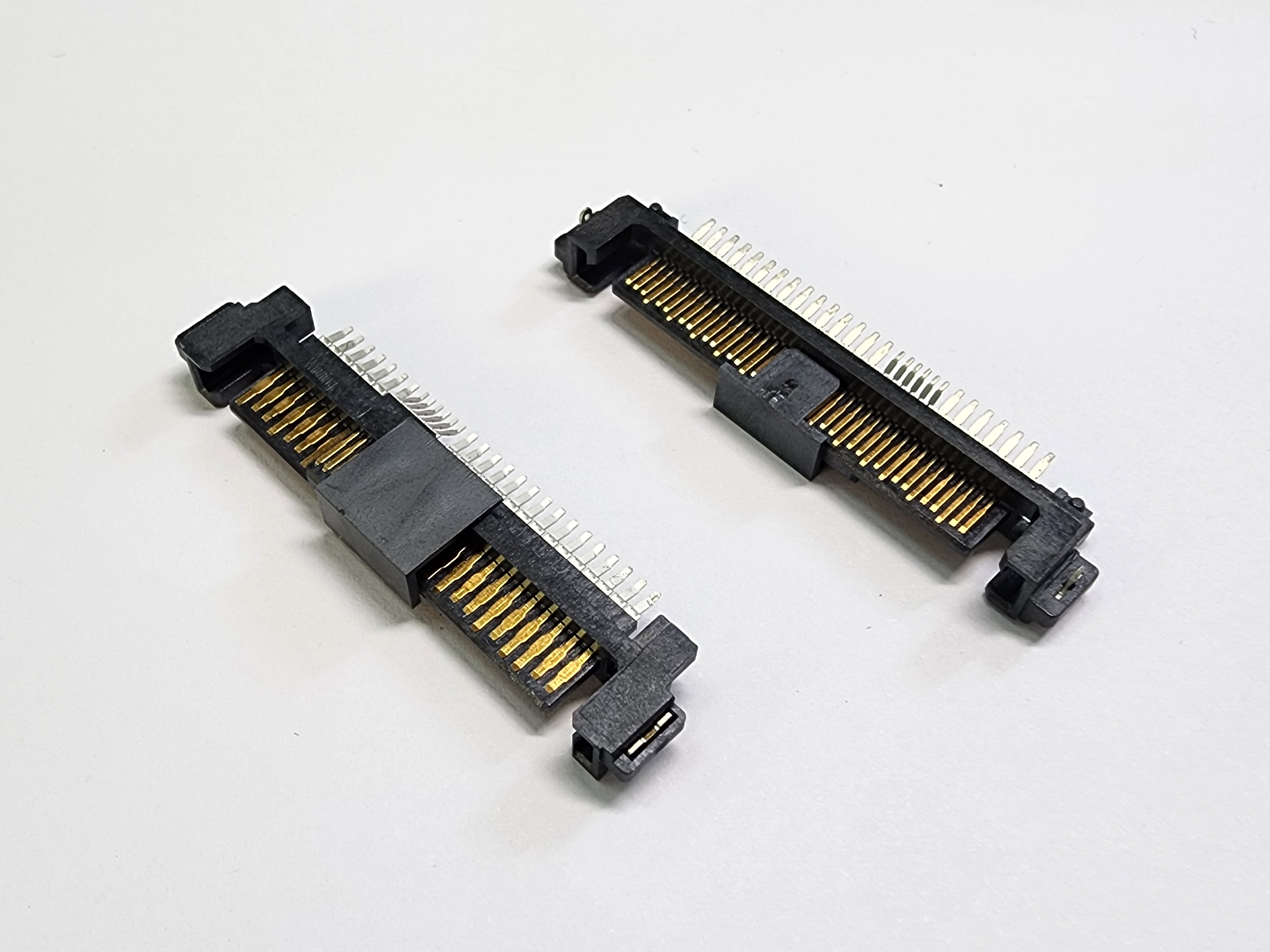

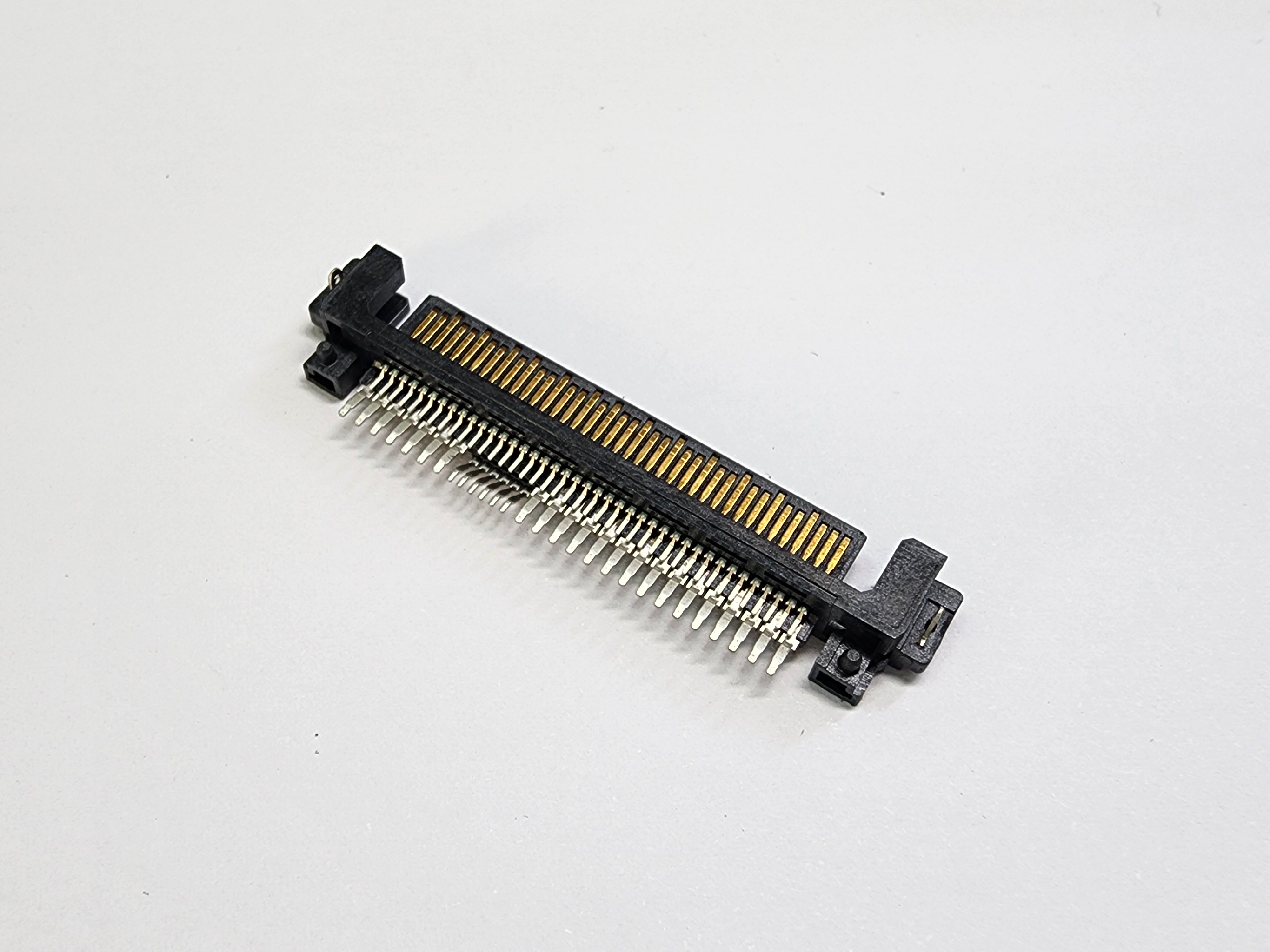

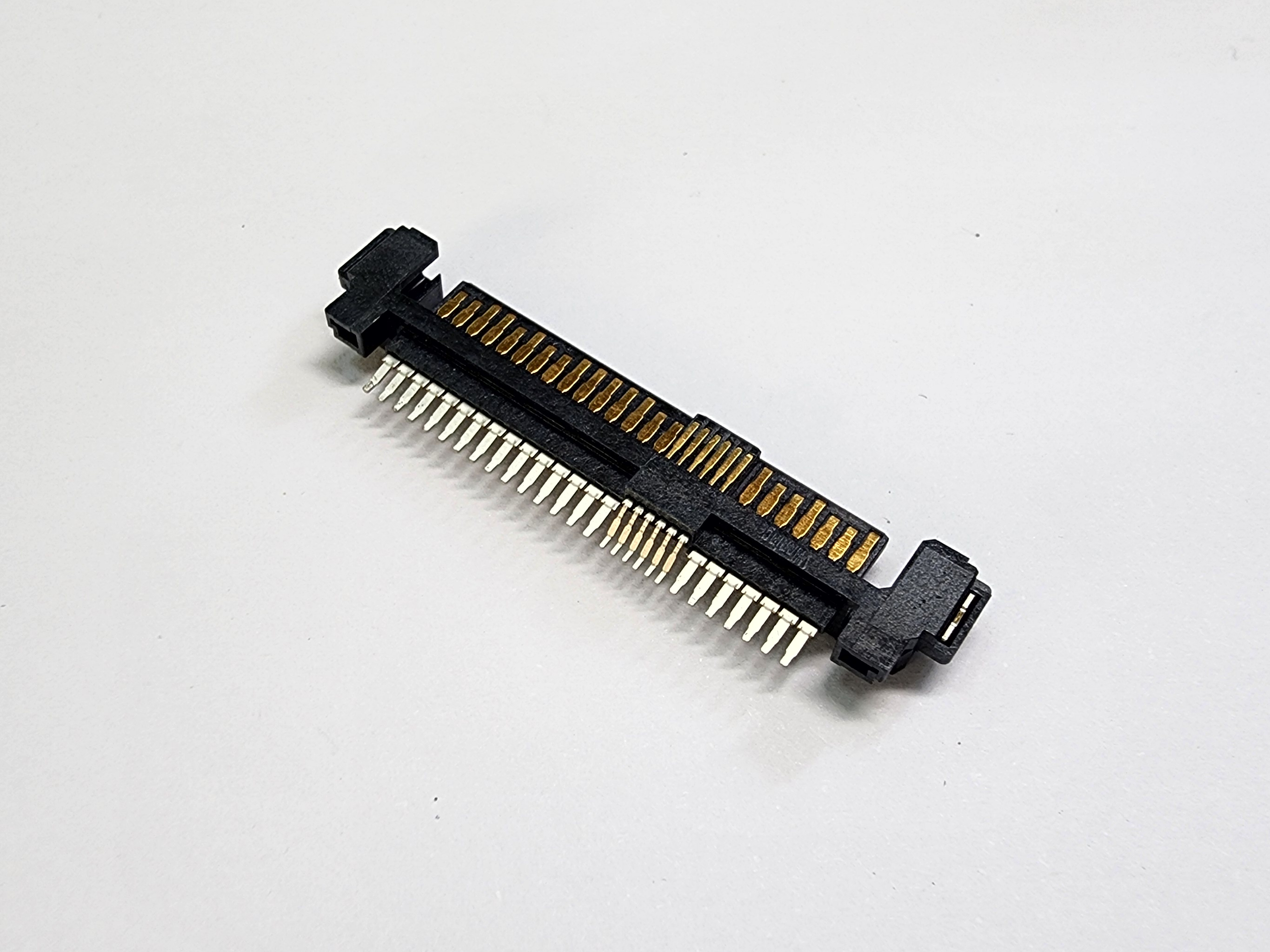

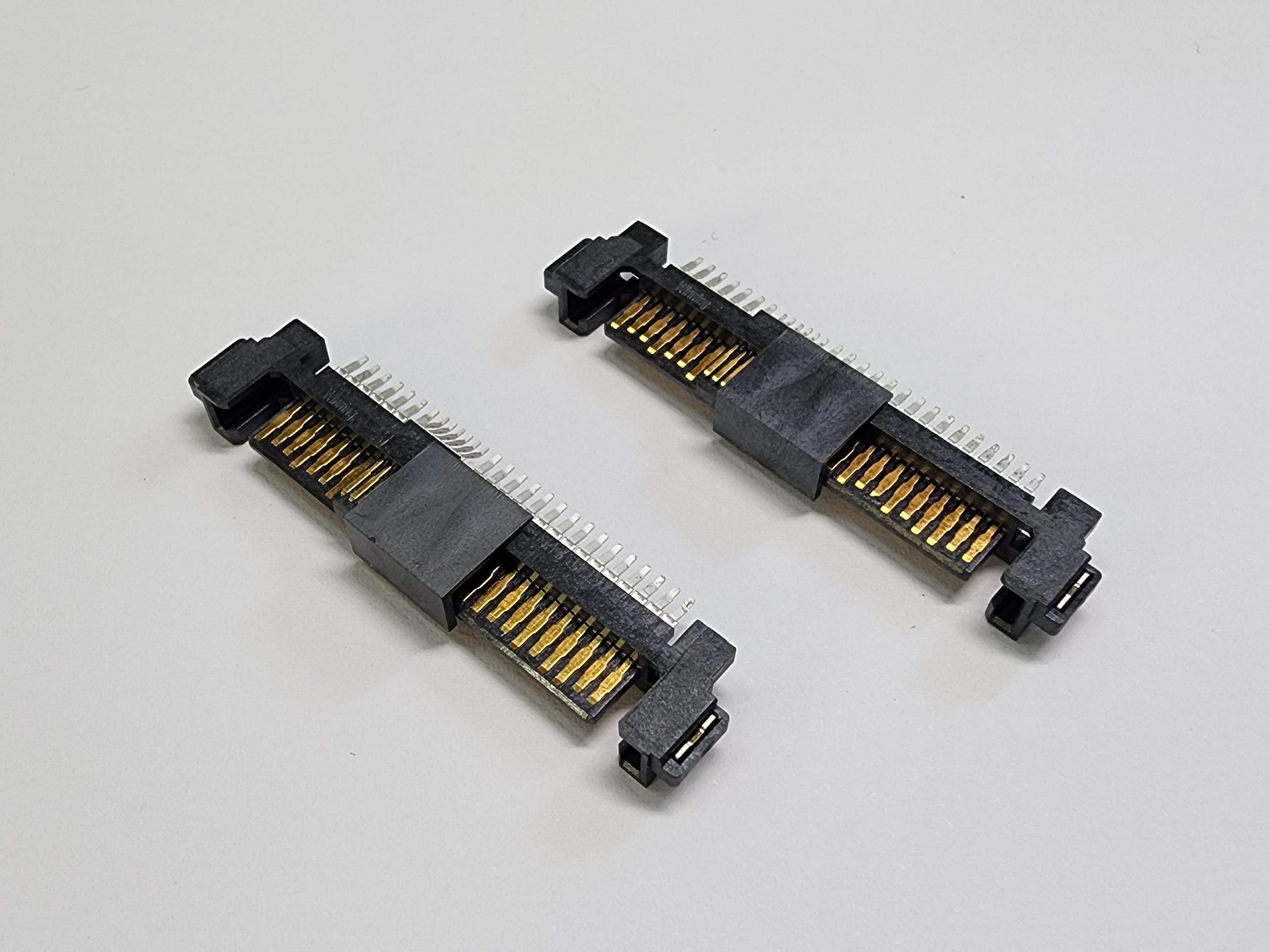

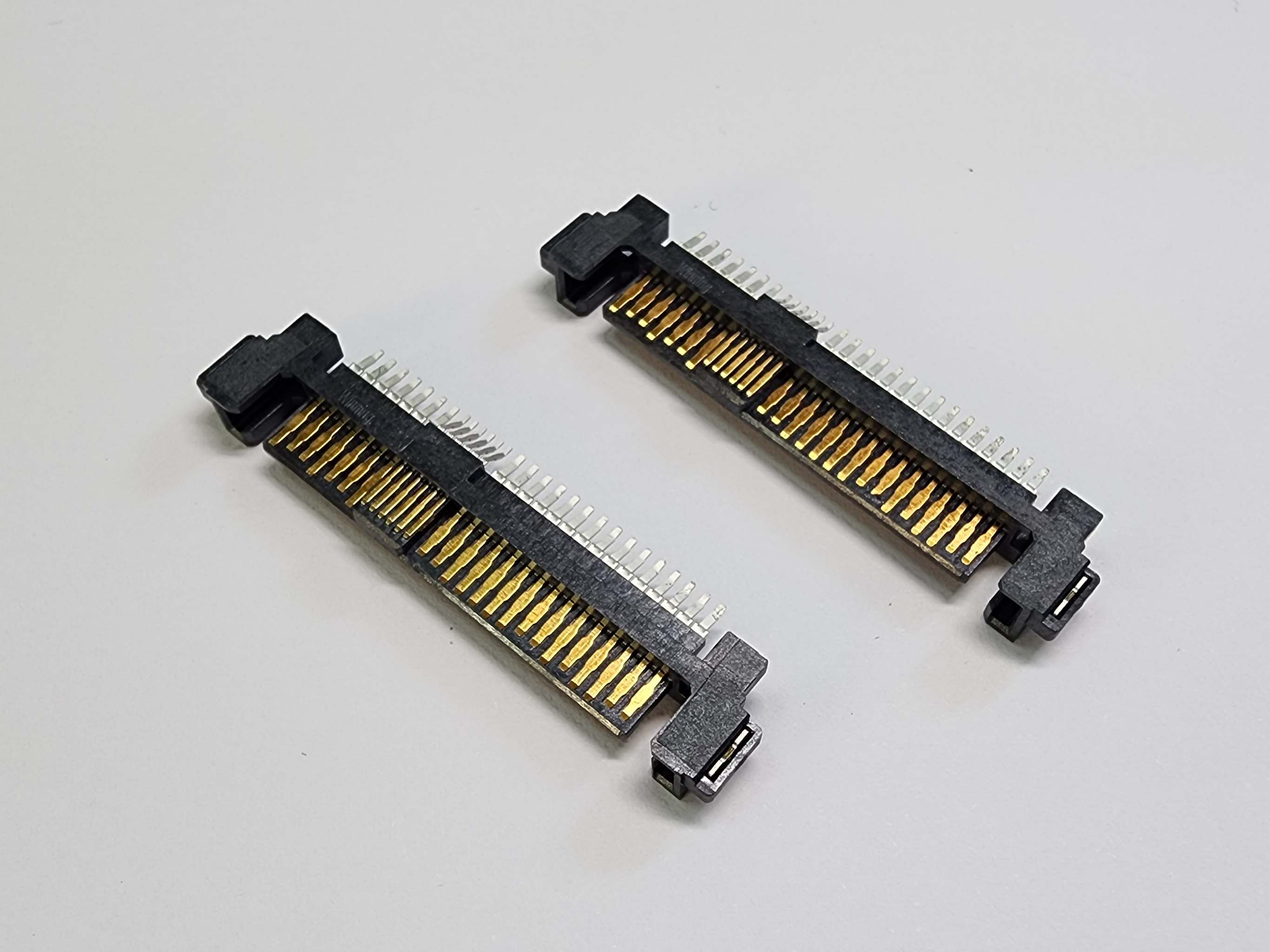

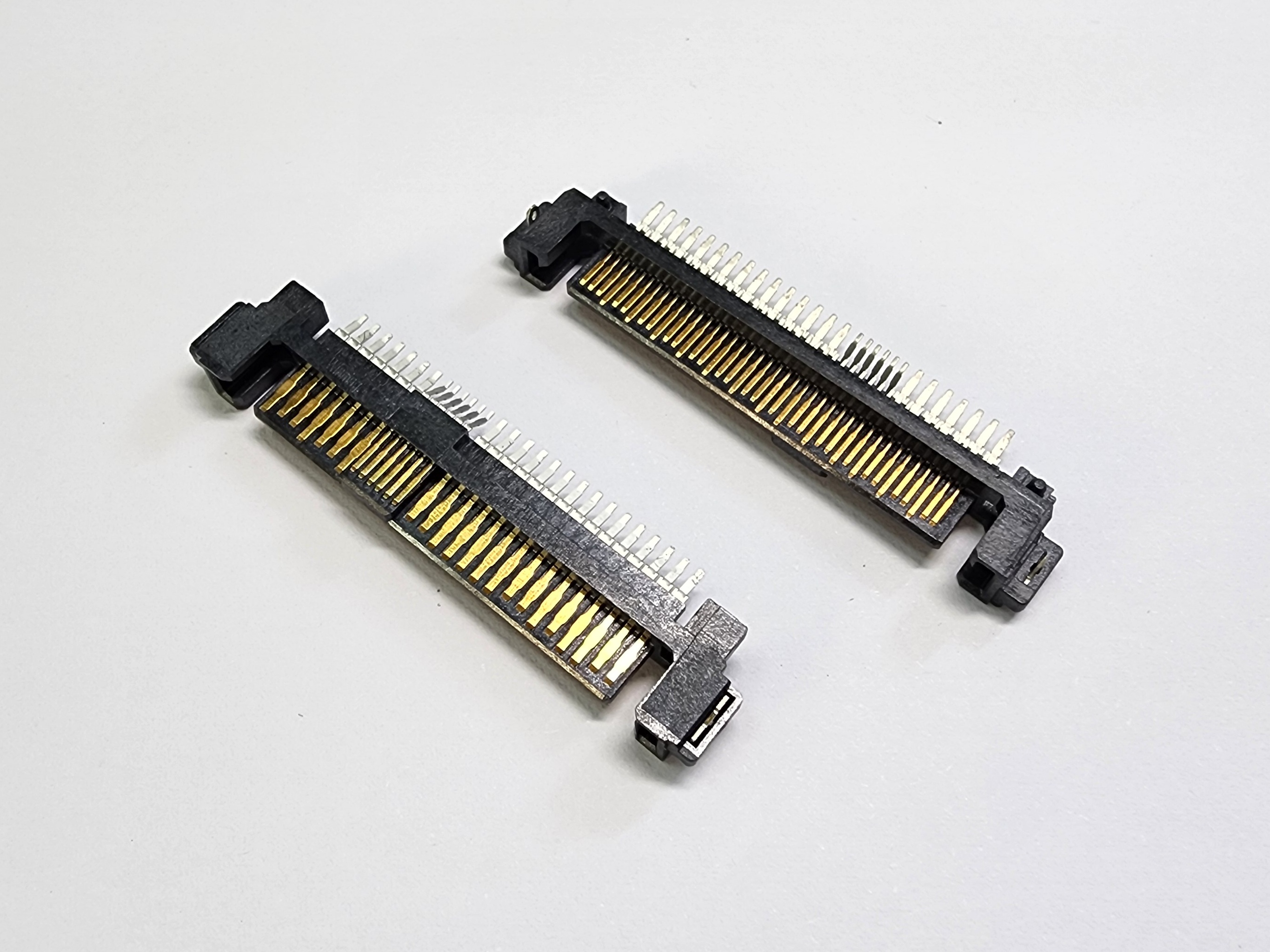

CU2C-M681S40-R1
Description
- SFF-8639
- U.2 Connector
- 68Pins
- Male
- Subside Type
- SMT
- Reverse
- 30u" Plating
- H=0.55mm
- LCP
- Black Color
SFF-8639, U.2 Connector, 68Pins, Male, Subside Type, SMT, 30u" Plating, Reverse H=0.55mm, LCP, Black Color
Material
- Housing: LCP, UL 94V-0 Rated.
- Color: Black.
- Contact: Brass.
- Plating: Gold Plating on Contact Area;
- Tin(100u" Min.) Plating on Solder Tail.
- Nickel(50u" Min.) Underplating Overall.
- Harpoon: Brass.
- Plating: Tin(100u" Min.) Plating over Nickel(50u" Min.)
Mechanical
- Insertion Force: 59N Max.
- Withdrawal Force: 12N Min.
- Durability: 500 Cycles.
Electrical Specification
- Current Rating: 1.5 Ampere per Contact.
- Contact Resistance: 30mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 500 VAC.
Environmental
- Operating Temperature: 0°C to +55°C.
- RoHS Compliance.
- REACH Compliance.
