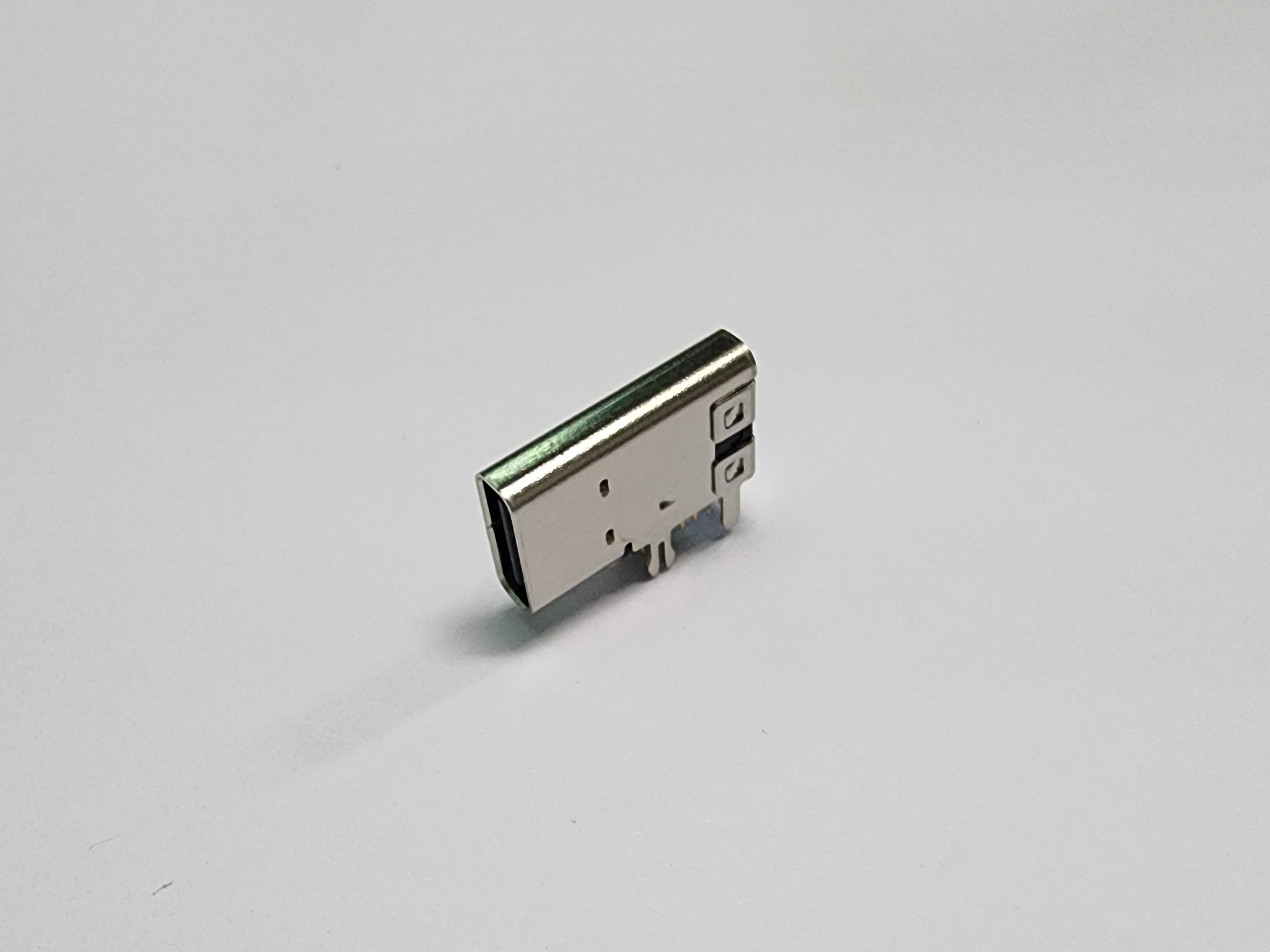

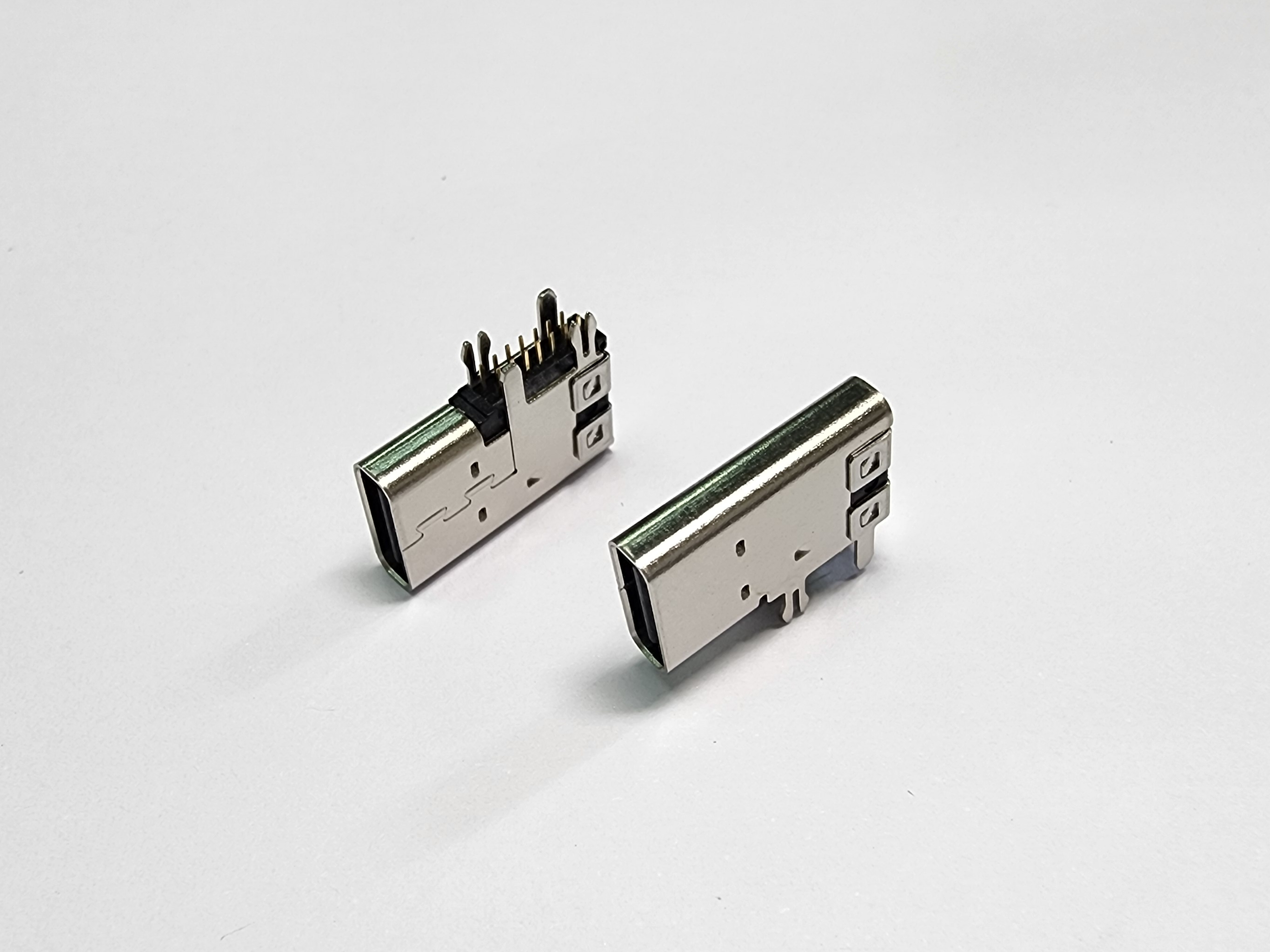

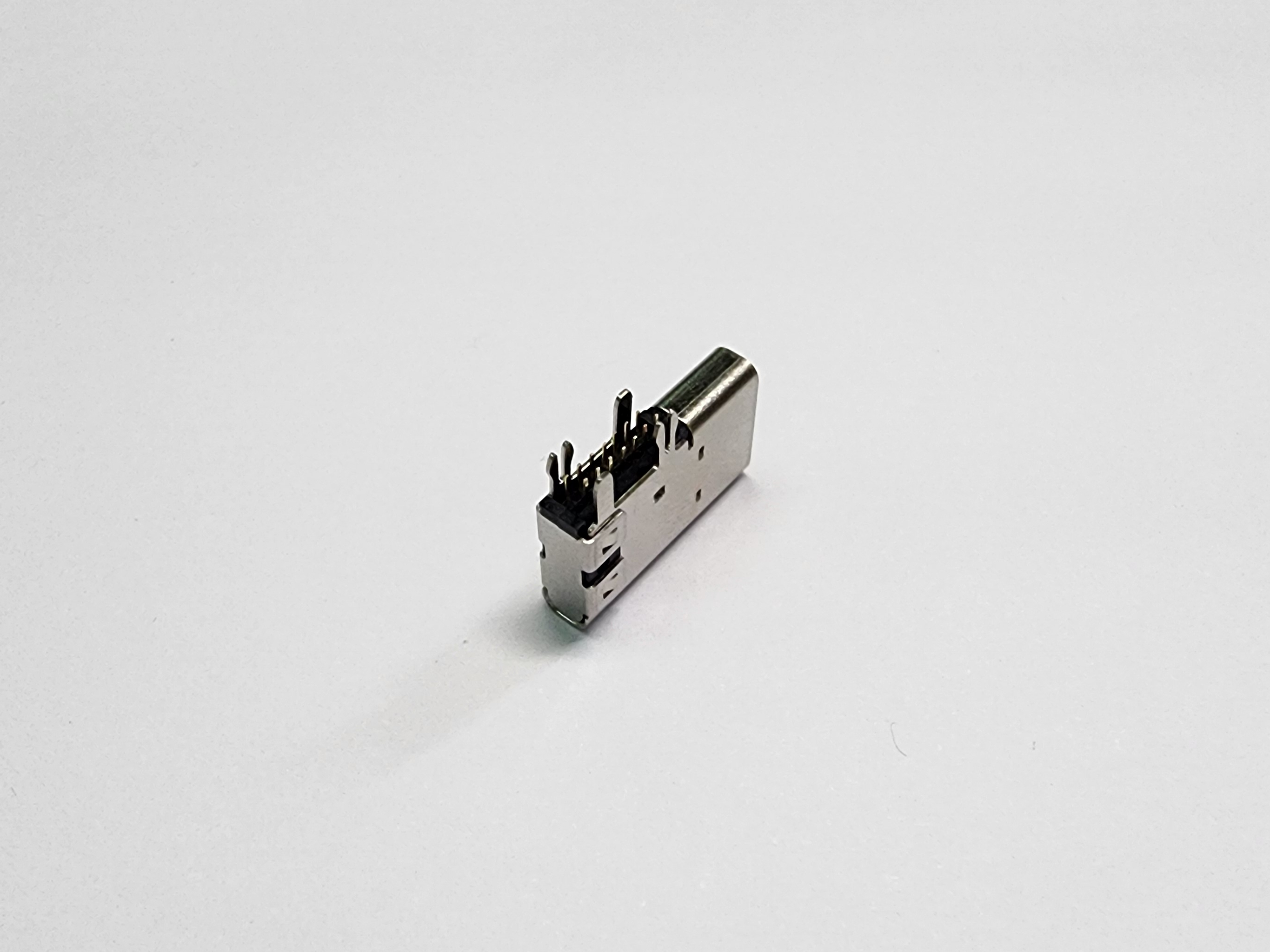

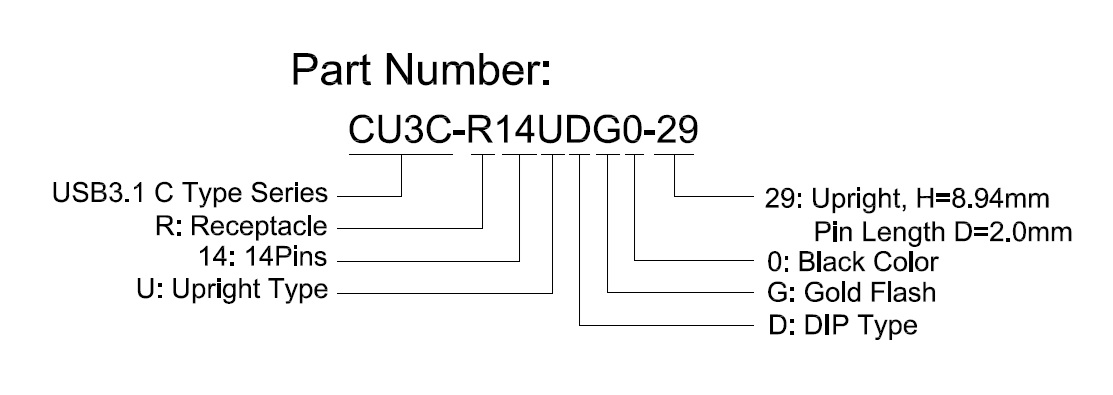

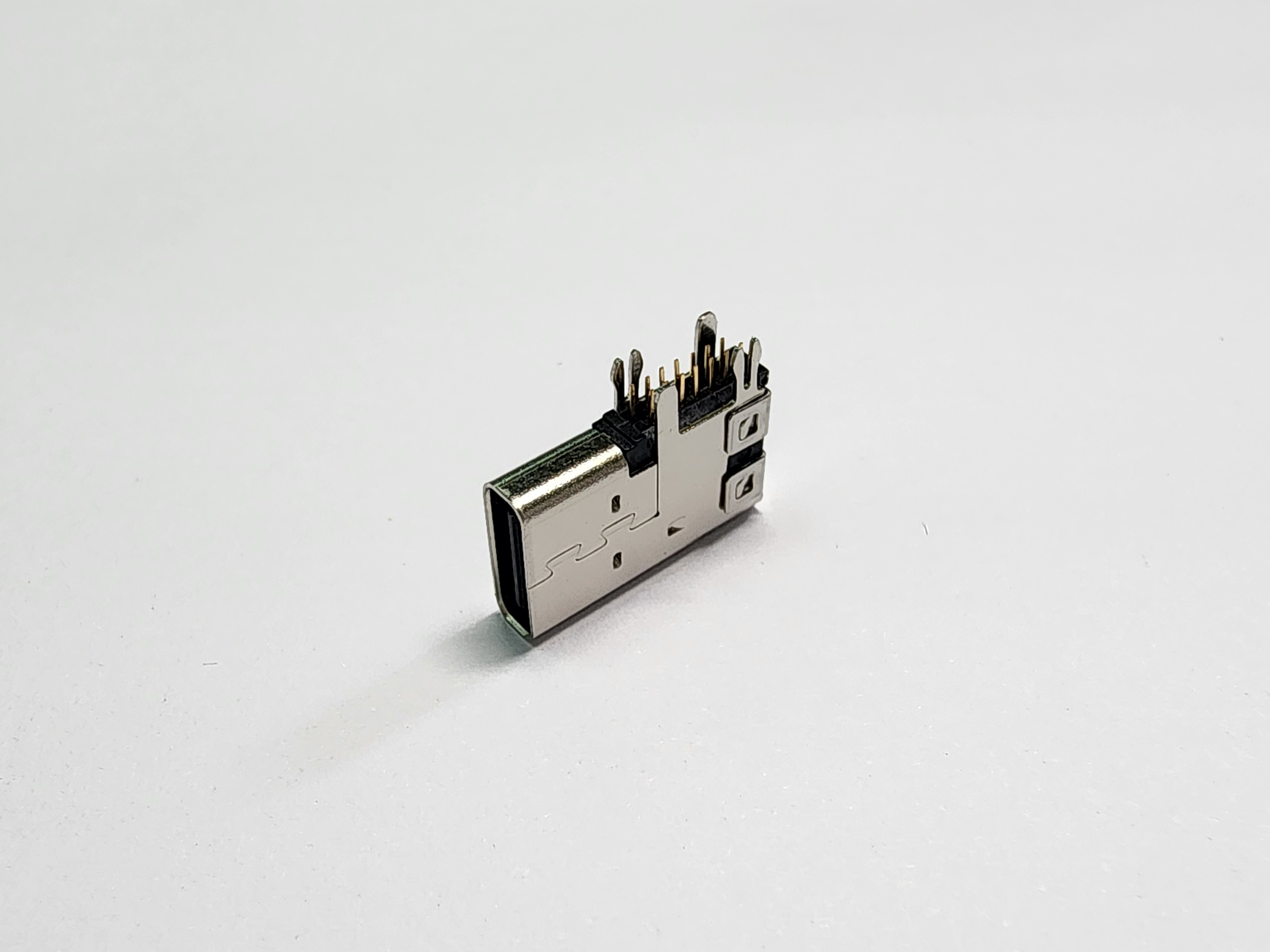

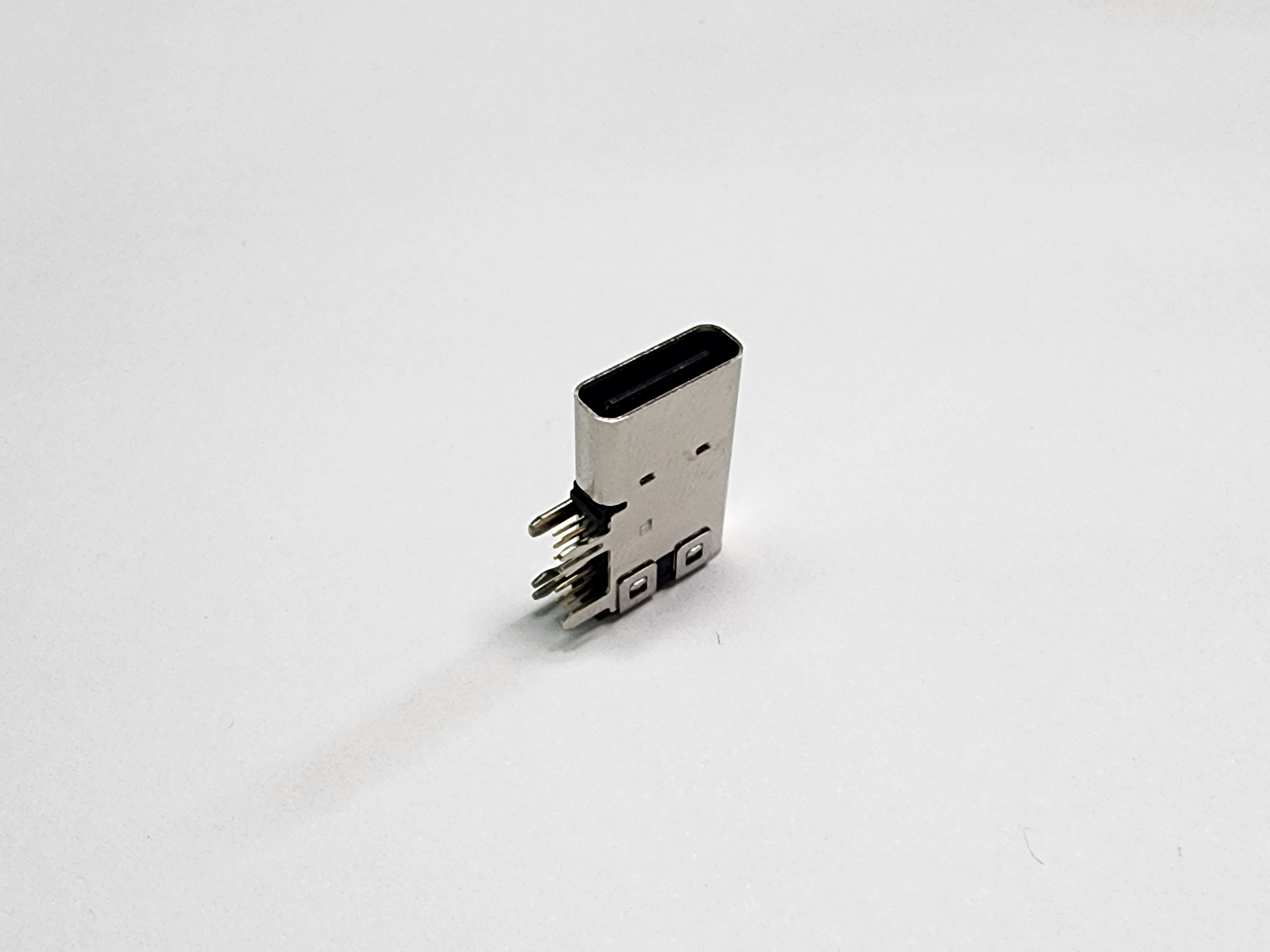

CU3C-R14UDG0-29
Description
- USB 3.1 Type C Connector
- 14Pins
- Receptacle
- UpRight Type
- DIP D=2.0mm
- Gold Flash
- H=8.94mm
- LCP
- Black Color
USB 3.1 C Type, 14Pins, Receptacle, UpRight Type, DIP D=2.0mm, Gold Flash, H=8.94mm, LCP, Black Color
Material
- Insulator: LCP, UL 94V-0 Rated.
- Color: Black.
- Contact: Copper Alloy.
- Plating: Gold Plating over Nickel on Contact Area;
- Tin Plating over Nickel on Solder Tail.
- Shell: C2680-H, T=0.30±0.03mm.
- Plating: Nickel Plating over All.
Mechanical
- Insertion Force: 5N~20N.
- Withdrawal Force: 8N~20N.
- Durability: 5,000Cycles.
Electrical Specification
- Current Rating: 3A Max.
- Voltage: 5V AC Max.
- Contact Resistance: 40mΩ Max.
- Insulation Resistance: 100MΩ Min.
- Dielectric Withstanding Voltage: 100V AC R.M.S.
Environmental
- Operating Temperature: -55°C to +85°C.
- RoHS Compliance.
- REACH Compliance.
