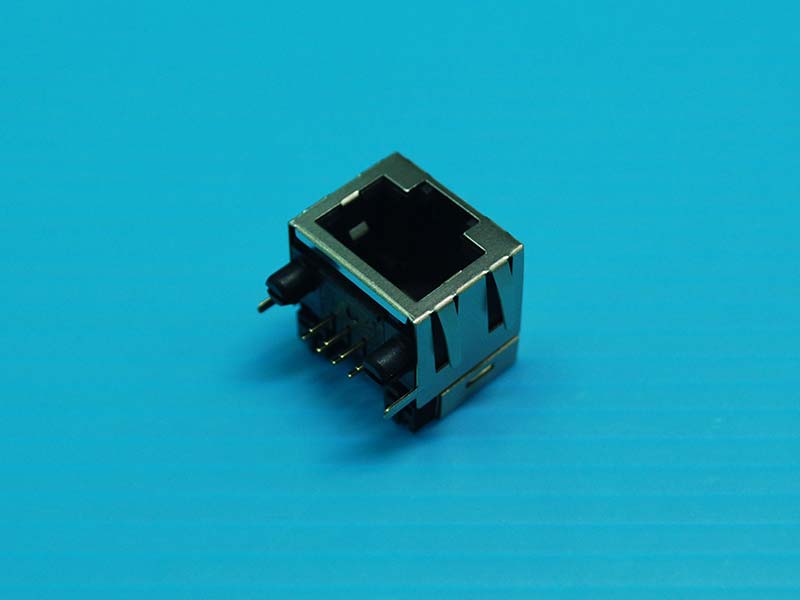

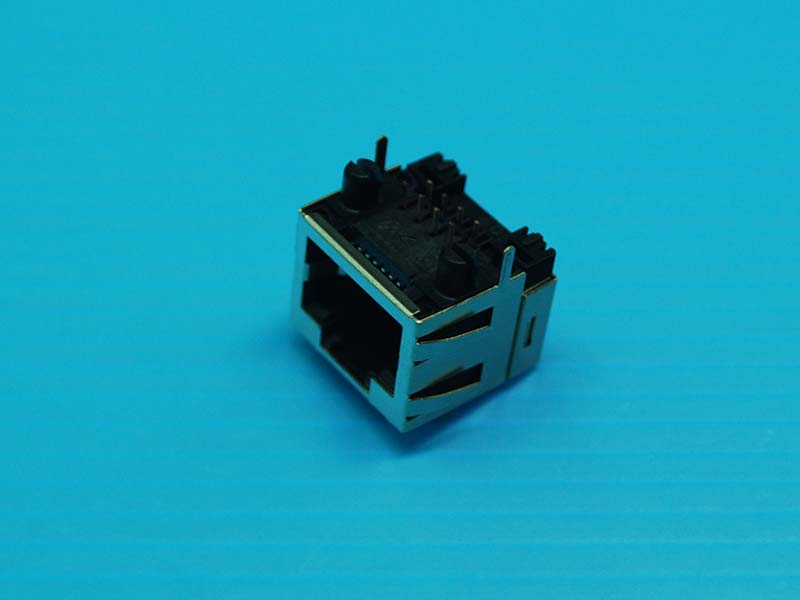

Description
  • RJ45
  • 8P8C
  • Right Angle(Side Entry)
  • DIP
  • 6u" Gold Plating
  • Body L=15.75mm
  • W/Shield
  • With Spring(2 Springs on Top, 2Spring at 2Sides)
  • W/O LED
  • Black Color

Material

  • Housing: DSM Stanyl TE250F6(Nylon 46), UL 94V-0 Rated.
  • Color: Black.
  • Contact: Dia. 0.35mm Thickness Phosphor Bronze.
  • Plating: Gold Plating over Nickel on Contact Area;
    Tin Plating over Nickel on Solder Tail.
  • Shield: Dia. 0.25mm Thickness Copper Alloy.
  • Plating: Nickel Plating.

Mechanical

  • Durability: 750 Cycles.

Electrical Specification

  • Operation Voltage: 125VAC Rms.
  • Current Rating: 1.5 Ampere.
  • Contact Resistance: 30mΩ Max.
  • Insulation Resistance: 500MΩ  Min at 500VDC.
  • Dielectric Withstanding Voltage: 1000 VAC Rms 60Hz, 1Min.

Environmental

  • Storage Temperature:  -40°C to +85°C
  • Operating Temperature:  -20°C to +75°C
  • Mates With Modular Plug Conforming To FCC Part 68, Subpart F.
  • RoHS Compliance.
